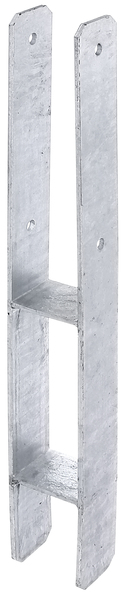

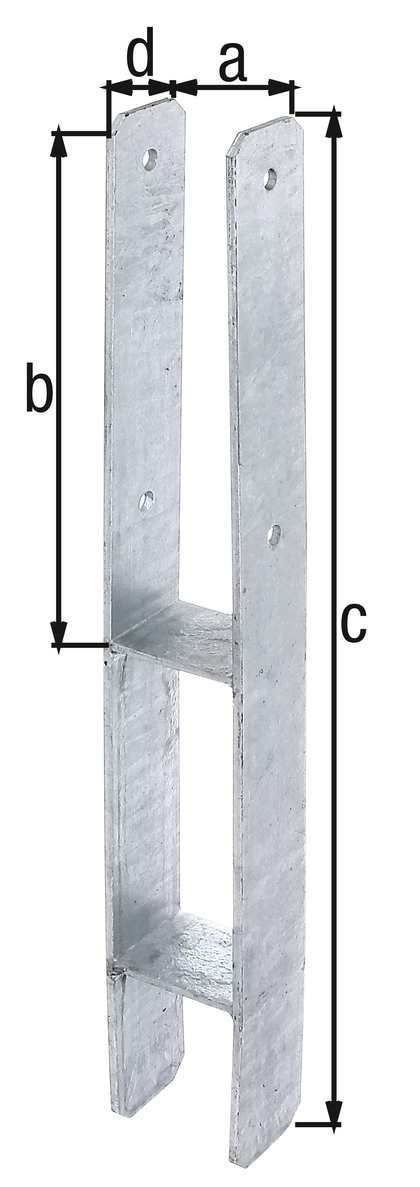

Ancre de poteau en H
Art.-No. 213800
Acier brut, galvanisée, à sceller, avec marquage CE selon ETA-10/0210
- Cote a:
- 71 mm
- Cote b:
- 300 mm
- Cote c:
- 600 mm
- Cote d:
- 60 mm
- Type de fixation:
- à bétonner
- Épaisseur:
- 5 mm
- Nombre x Ø du trou:
- 4 x Ø11 mm
- Matériau/Surface:
- Acier brut, galvanisée, à sceller, avec marquage CE selon ETA-10/0210
- UE:
- 1
- UV:
- Unité
- Finition / Couleur:
- FVZ
- Matériau:
- Acier
- Agrément:
- Agrément technique européen ETA-10/0210
- :
- 71 mm
- :
- 300 mm
- :
- 60 mm
- :
- 600 mm
- Poids par pièce (kg):
- 2.950 kg
Article-No.
Cote a
Cote b
Cote c
Cote d
Action
Article-No.213800
Cote a71 mm
Cote b300 mm
Cote c600 mm
Cote d60 mm

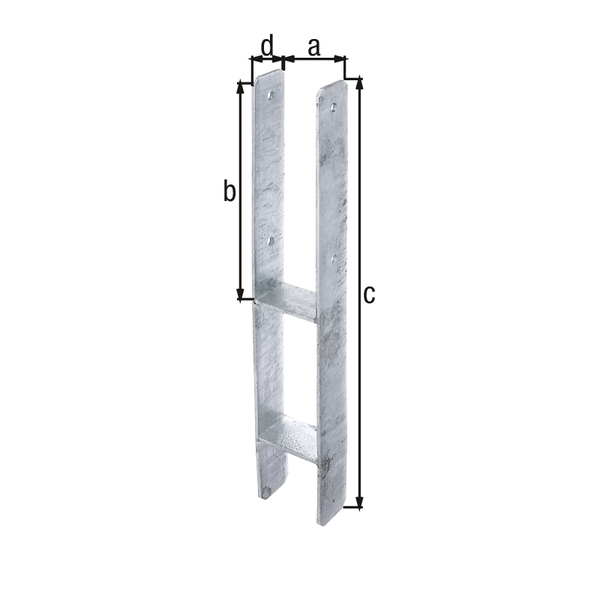

Article-No.213817
Cote a81 mm
Cote b300 mm
Cote c600 mm
Cote d60 mm

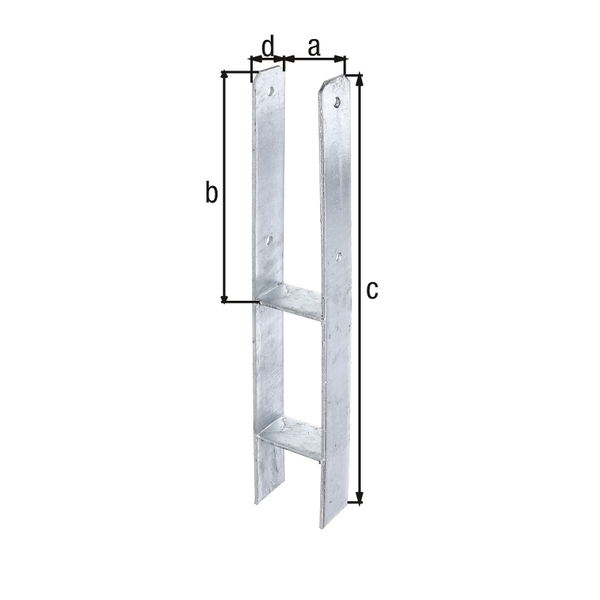

Article-No.213824
Cote a91 mm
Cote b300 mm
Cote c600 mm
Cote d60 mm

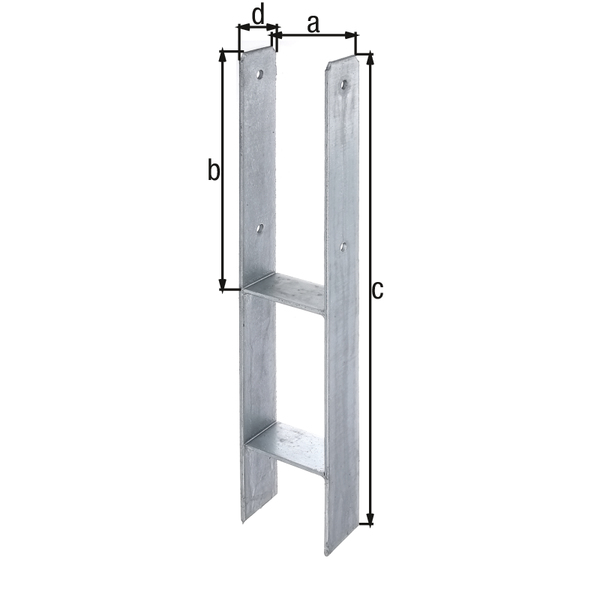

Article-No.203917
Cote a101 mm
Cote b300 mm
Cote c600 mm
Cote d60 mm

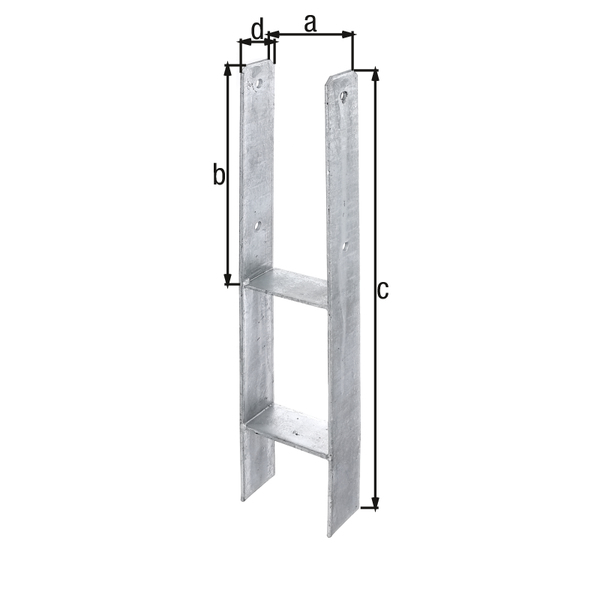

Article-No.203924
Cote a111 mm
Cote b300 mm
Cote c600 mm
Cote d60 mm

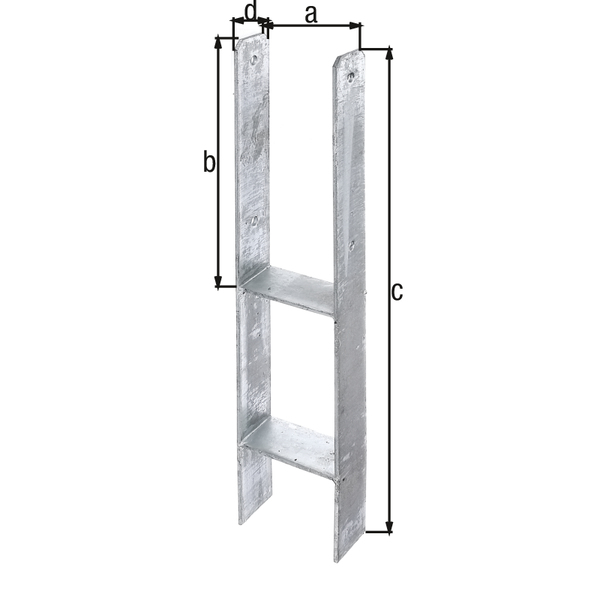

Article-No.203931
Cote a116 mm
Cote b300 mm
Cote c600 mm
Cote d60 mm

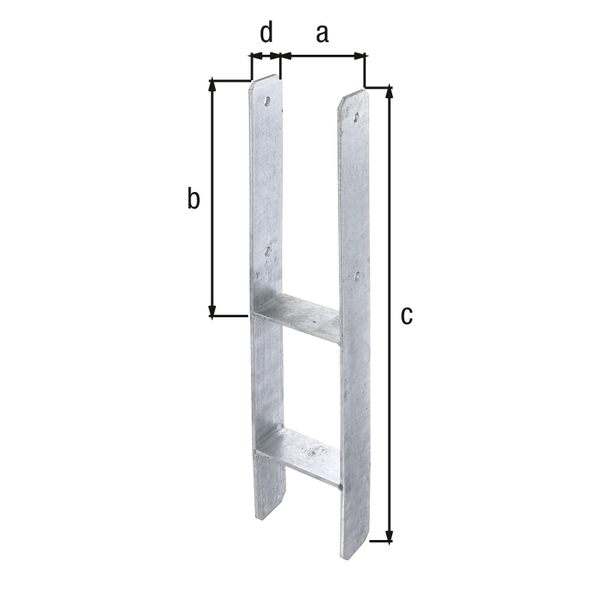

Article-No.203948
Cote a121 mm
Cote b300 mm
Cote c600 mm
Cote d60 mm
- Approprié sur le plan statique pour les hautes clôtures tressées et brise vue. Pour les constructions en bois et les clôtures en bois conformément au tableau des valeurs indicatives.
- Vous trouverez le matériel de fixation adapté dans l’espace « Vis et accessoires ».
