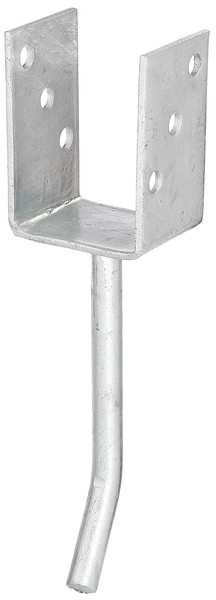

Ancre de poteau en U avec tige à sceller en acier rond
Art.-No. 214043
Acier brut, galvanisée, à sceller, avec marquage CE selon ETA-10/0210
- Cote a:
- 71 mm
- Cote b:
- 104 mm
- Cote c:
- 200 mm
- Cote d:
- 60 mm
- ø ancrage:
- 16 mm
- Type de fixation:
- à bétonner
- Épaisseur:
- 4 mm
- Nombre x Ø du trou:
- 6 x Ø11 mm
- Matériau/Surface:
- Acier brut, galvanisée, à sceller, avec marquage CE selon ETA-10/0210
- UE:
- 1
- UV:
- Unité
- Finition / Couleur:
- FVZ
- Matériau:
- Acier
- Agrément:
- Agrément technique européen ETA-10/0210
- :
- 71 mm
- :
- 104 mm
- :
- 60 mm
- Poids par pièce (kg):
- 0.818 kg
Article-No.
Cote a
Cote b
Cote c
Cote d
Action
Article-No.214043
Cote a71 mm
Cote b104 mm
Cote c200 mm
Cote d60 mm

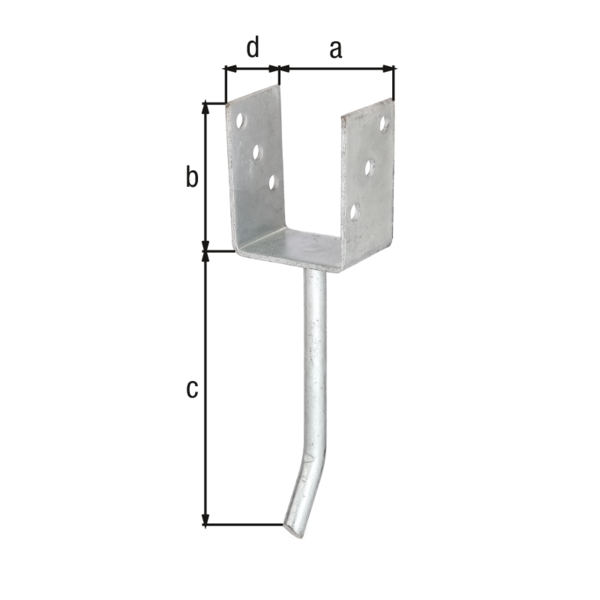

Article-No.214067
Cote a81 mm
Cote b104 mm
Cote c200 mm
Cote d60 mm

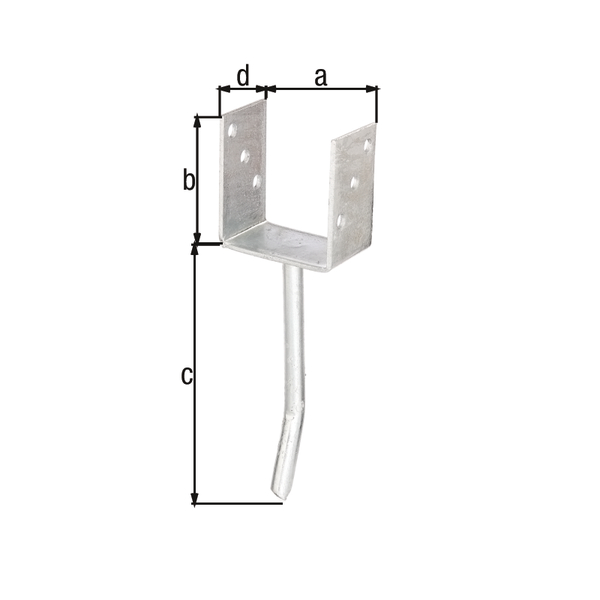

Article-No.214074
Cote a91 mm
Cote b104 mm
Cote c200 mm
Cote d60 mm

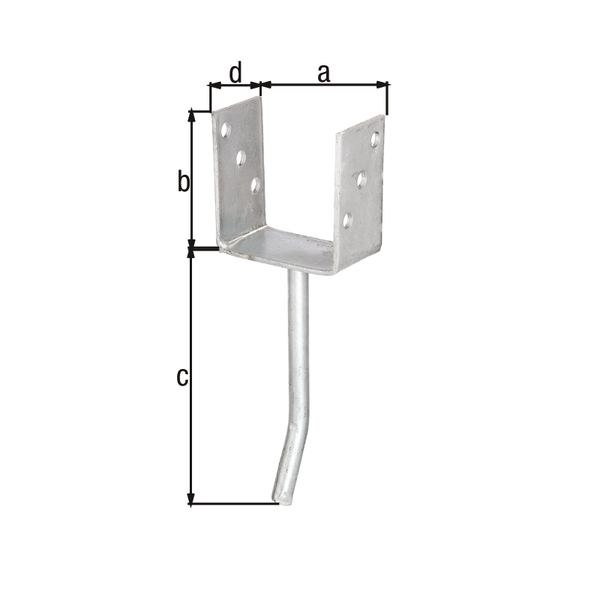

Article-No.214098
Cote a101 mm
Cote b104 mm
Cote c200 mm
Cote d60 mm

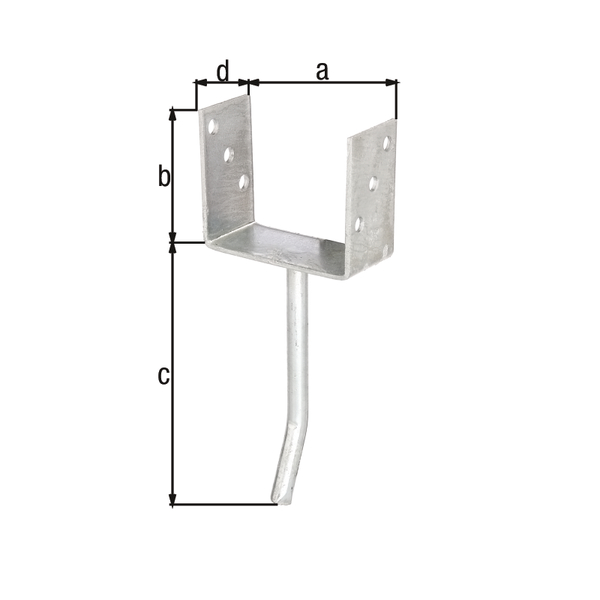

Article-No.214104
Cote a121 mm
Cote b104 mm
Cote c200 mm
Cote d60 mm
- Pas approprié sur le plan statique pour les hautes clôtures tressée et brise vue.
- Vous trouverez le matériel de fixation adapté dans l’espace « Vis et accessoires ».
