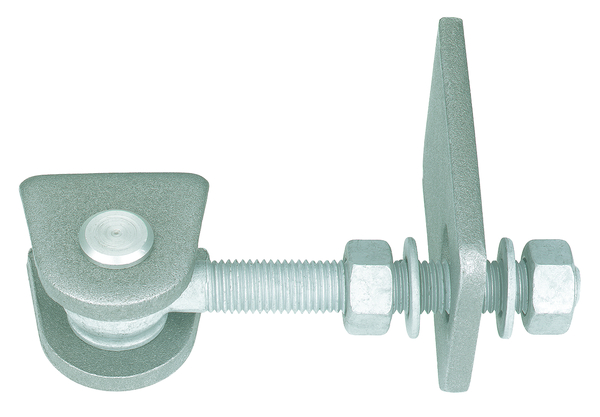

Gond réglable pour ouverture de 180°
court
Art.-No. 411053
Pièces à souder : Acier brut, boulons et goupille : Acier inoxydable, vis et écrous : galvanisés à chaud

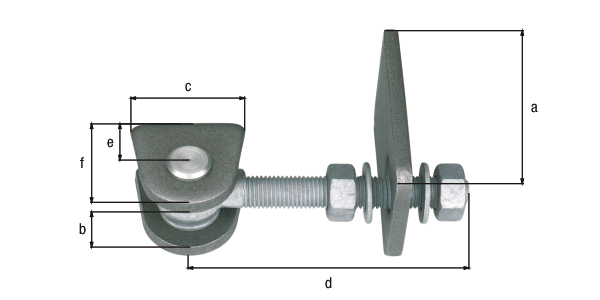

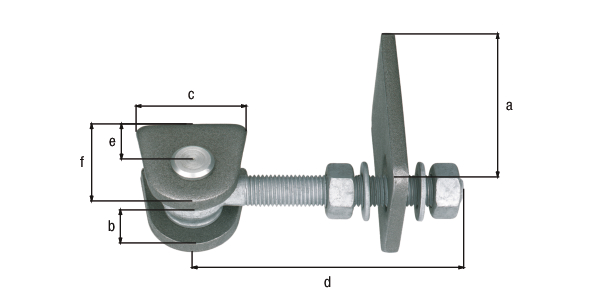

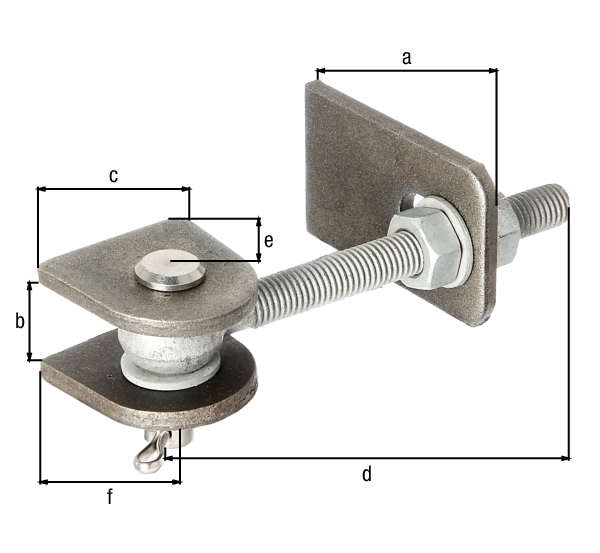

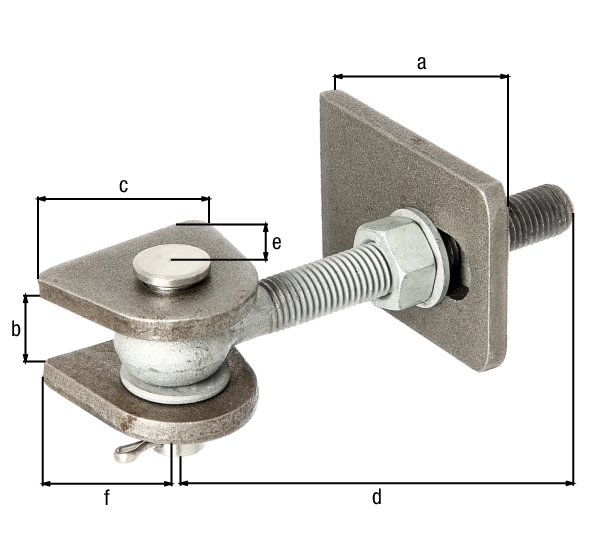

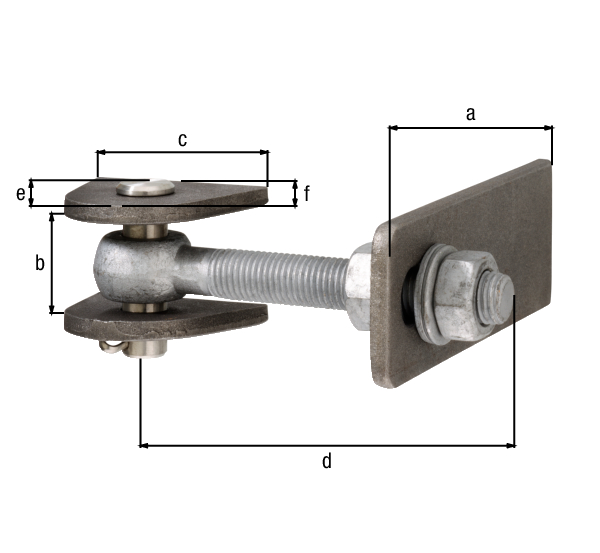

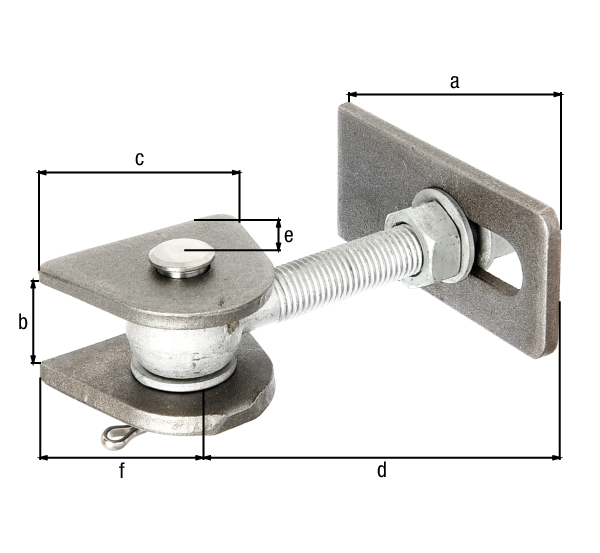

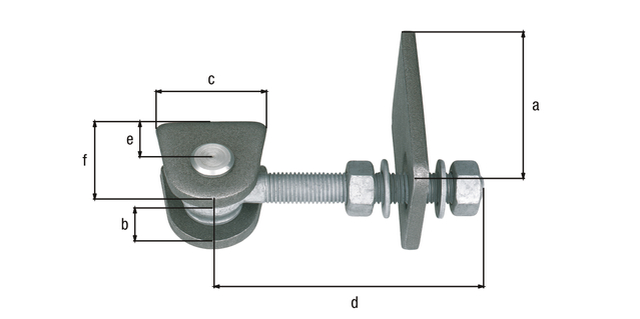

- Cote a:
- 75 mm
- Cote b:
- 19 mm
- Cote c:
- 44 mm
- Cote d:
- 120 mm
- Cote e:
- 25 mm
- Cote f:
- 45 mm
- Filetage:
- M12
- Matériau/Surface:
- Pièces à souder : Acier brut, boulons et goupille : Acier inoxydable, vis et écrous : galvanisés à chaud
- UE:
- 10
- UV:
- Unité
- :
- 75 mm
- :
- 44 mm
- Poids par pièce (kg):
- 0.486 kg
Article-No.
Cote a
Cote b
Cote c
Cote d
Action
Article-No.411053
Cote a75 mm
Cote b19 mm
Cote c44 mm
Cote d120 mm
Article-No.411060
Cote a86 mm
Cote b23 mm
Cote c55 mm
Cote d130 mm
Article-No.411077
Cote a130 mm
Cote b30 mm
Cote c80 mm
Cote d150 mm
Article-No.411084
Cote a145 mm
Cote b33 mm
Cote c80 mm
Cote d150 mm
Article-No.417802
Cote a75 mm
Cote b19 mm
Cote c44 mm
Cote d120 mm
Article-No.417819
Cote a86 mm
Cote b23 mm
Cote c55 mm
Cote d130 mm
Article-No.417826
Cote a130 mm
Cote b30 mm
Cote c80 mm
Cote d150 mm
Article-No.417833
Cote a145 mm
Cote b33 mm
Cote c80 mm
Cote d150 mm
- largeur ajustable
