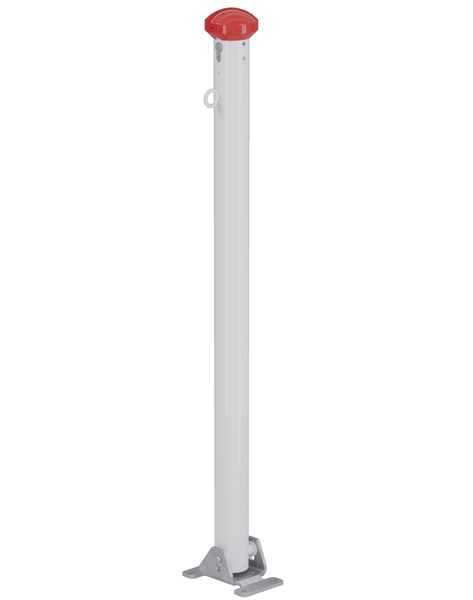

Bollard Grünenthal, foldable
Art.-No. 690106

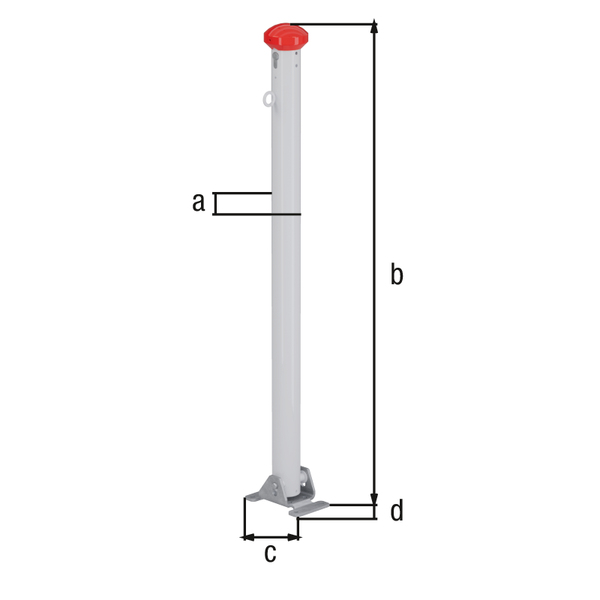

- Dimension a-Ø:
- 60 mm
- Dimension b:
- 1000 mm
- Dimension c:
- 160 mm
- Dimension d:
- 100 mm
- Ground plate:
- 160 x 100 mm
- No. of eyes:
- 1
- No. of chain safety links:
- 2
- Quantity x hole Ø:
- 4 x Ø9 mm
- Material/surface:
- raw steel, hot-dip galvanised, white powder-coated with two red, reflecting rings, for screwing on, master keyed profile cylinder lock with three keys
- Systems:
- Grünenthal
- Surface / Colour:
- white
- Fastening type:
- for screwing on
- Lockability:
- Profile cylinder lock
- Plate width:
- 100 mm
- Height:
- 1000 mm
- Weight per UQ (kg):
- 8.500 kg
- Content Unit:
- 1 Piece
Article-No.
Dimension a-Ø
Dimension b
Dimension c
Dimension d
Action
Article-No.
690588
Dimension a-Ø
60 mm
Dimension b
1000 mm
Dimension c
160 mm
Dimension d
100 mm
Article-No.
690106
Dimension a-Ø
60 mm
Dimension b
1000 mm
Dimension c
160 mm
Dimension d
100 mm
- foldable using the triangular fire alarm lock or the profile cylinder lock
- With sturdy red post cap that is used as help against falling thanks to its special shape.
- Profile cylinder 30/30 keyed alike
- Triangular wrench key not included. It can be ordered separately.
- Plastic coatings in all RAL colours
- Posts with chain eyelets
- Eyelets on the right as standard. If something else is required, please specify when ordering.
