• Bollard Grünenthal, foldable, Material: raw steel, Surface: hot-dip galvanised, white powder-coated with two red, reflecting rings, for setting in concrete, master-keyed profile cylinder lock with three keys, Post dia.: 60 mm, Height above ground: 1000 mm, Plate length: 160 mm, Plate width: 100 mm, Ground sleeve dia.: 60 mm, Length of ground sleeve: 400 mm, Ground plate: 160 x 100 mm, No. of eyes: 0, No. of chain safety links: 0, No. of holes: 4, Hole: Ø9 mm
  • Bollard Grünenthal, foldable, Material: raw steel, Surface: hot-dip galvanised, white powder-coated with two red, reflecting rings, for setting in concrete, master-keyed profile cylinder lock with three keys, Post dia.: 60 mm, Height above ground: 1000 mm, Plate length: 160 mm, Plate width: 100 mm, Ground sleeve dia.: 60 mm, Length of ground sleeve: 400 mm, Ground plate: 160 x 100 mm, No. of eyes: 0, No. of chain safety links: 0, No. of holes: 4, Hole: Ø9 mm

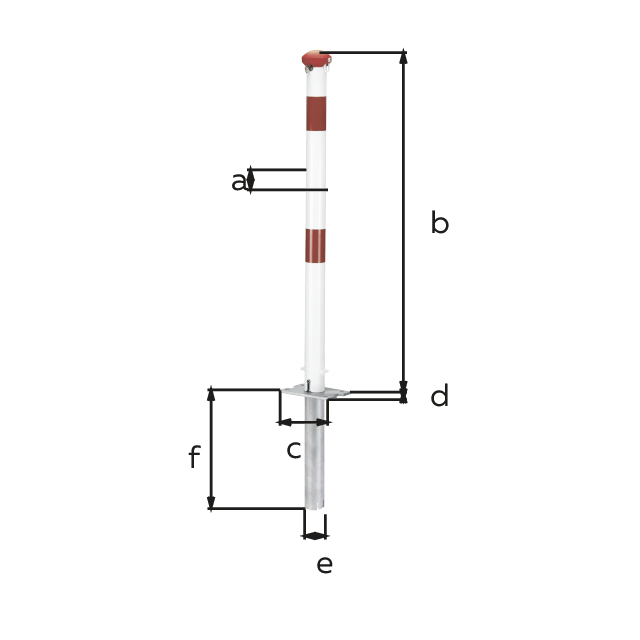

Bollard Grünenthal, foldable

Art.-No. 690595
2 Variants
Dimension a-Ø:
60 mm
Dimension b:
1000 mm
Dimension c:
160 mm
Dimension d:
100 mm
Dimension e-Ø:
60 mm
Dimension f:
400 mm
Ground plate:
160 x 100 mm
No. of eyes:
0
No. of chain safety links:
0
Quantity x hole Ø:
4 x Ø9 mm
Material/surface:
raw steel, hot-dip galvanised, white powder-coated with two red, reflecting rings, for setting in concrete, master-keyed profile cylinder lock with three keys
UNIT:
1
PU:
Cardboard
Systems:
Grünenthal
Surface / Colour:
WEISS
Fastening type:
ZEINB
:
PZSCHL
:
100 mm
:
1000 mm
Weight per UQ (kg):
9.500 kg
Article-No.
Dimension a-Ø
Dimension b
Dimension c
Dimension d
Action
Article-No.690595
Dimension a-Ø60 mm
Dimension b1000 mm
Dimension c160 mm
Dimension d100 mm

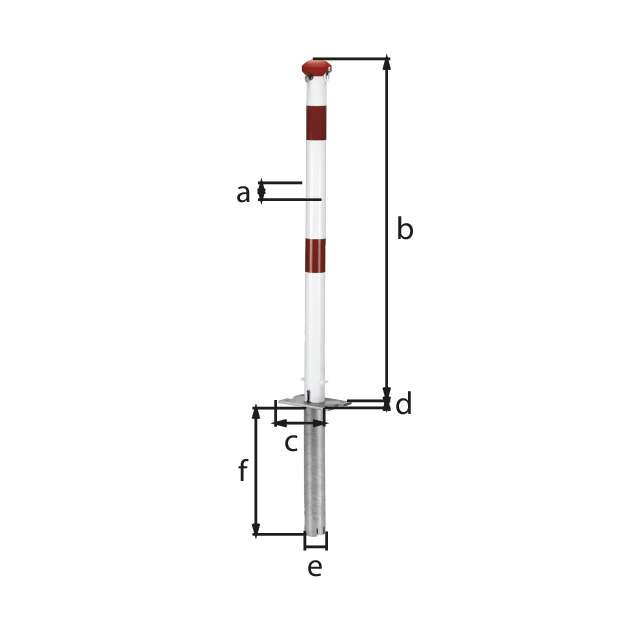

Article-No.690113
Dimension a-Ø60 mm
Dimension b1000 mm
Dimension c160 mm
Dimension d100 mm
  • foldable using the triangular fire alarm lock or the profile cylinder lock
  • With sturdy red post cap that is used as help against falling thanks to its special shape.
  • The ground sleeve is pressed in at the side for better support on the variants for setting in concrete.
  • Triangular wrench key not included. It can be ordered separately.
  • Plastic coatings in all RAL colours
  • Posts with chain eyelets
