• Bollard Passau, angular, removable, Material: raw steel, Surface: hot-dip galvanised passivated, for setting in concrete, triangle lock without triangular key, Post: 70 x 70 mm, Height above ground: 1000 mm, Total length of post: 1200 mm, Ground sleeve: 80 x 80 mm, Length of ground sleeve: 400 mm, No. of eyes: 0
  • Bollard Passau, angular, removable, Material: raw steel, Surface: hot-dip galvanised passivated, for setting in concrete, triangle lock without triangular key, Post: 70 x 70 mm, Height above ground: 1000 mm, Total length of post: 1200 mm, Ground sleeve: 80 x 80 mm, Length of ground sleeve: 400 mm, No. of eyes: 0

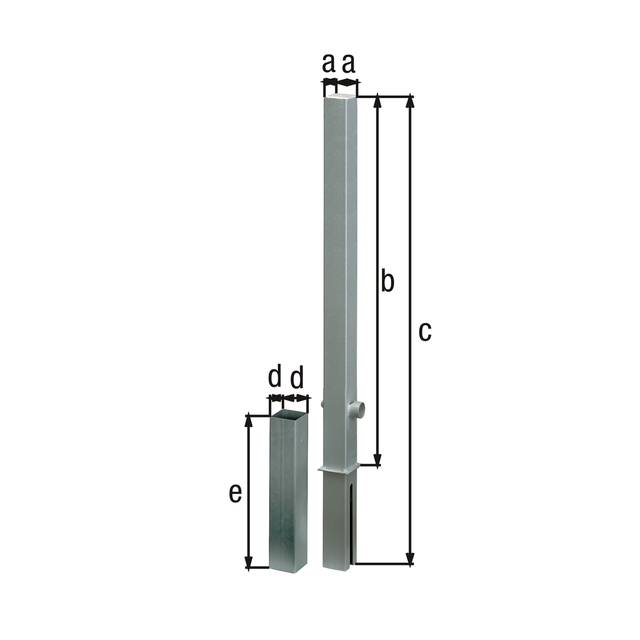

Bollard Passau, angular, removable

Art.-No. 781514
3 Variants
Dimension a:
70 x 70 mm
Dimension b:
1000 mm
Dimension c:
1200 mm
Dimension d:
80 x 80 mm
Dimension e:
400 mm
No. of eyes:
0
Material/surface:
raw steel, hot-dip galvanised passivated, for setting in concrete, triangle lock without triangular key
UNIT:
1
PU:
Piece
Systems:
Passau
Surface / Colour:
FVZ
Fastening type:
ZEINB
:
3KTSCHL
:
1000 mm
Weight per UQ (kg):
10.400 kg
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.781514
Dimension a70 x 70 mm
Dimension b1000 mm
Dimension c1200 mm
Dimension d80 x 80 mm

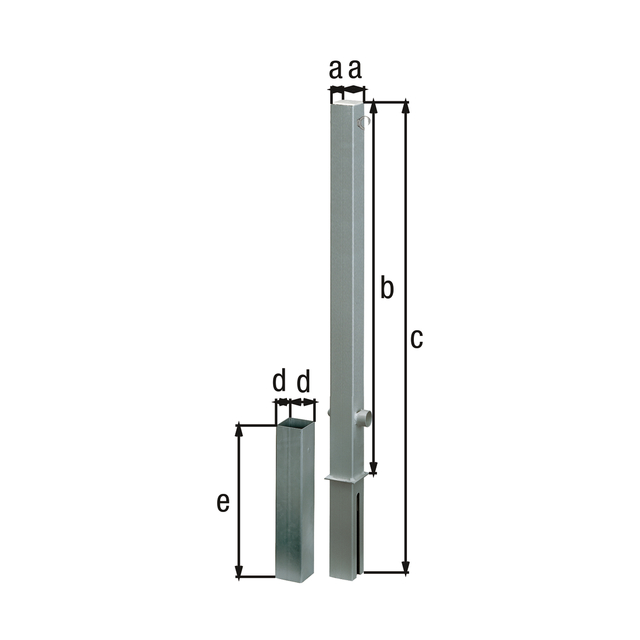

Article-No.781521
Dimension a70 x 70 mm
Dimension b1000 mm
Dimension c1200 mm
Dimension d80 x 80 mm

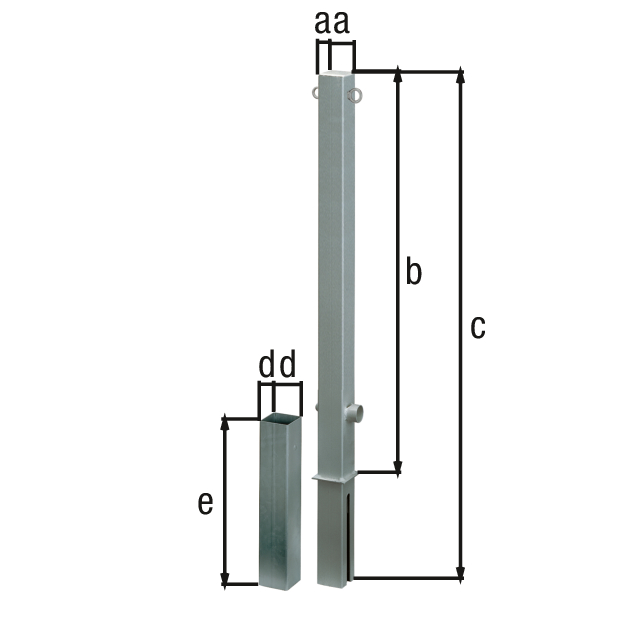

Article-No.781538
Dimension a70 x 70 mm
Dimension b1000 mm
Dimension c1200 mm
Dimension d80 x 80 mm
  • removable by using the triangular fire alarm lock
  • Triangular wrench key not included. It can be ordered separately.
  • Plastic coatings in all RAL colours
