• Bollard Passau-Royal, angular, removable, Material: raw steel, Surface: hot-dip galvanised, white powder-coated with two red, reflecting rings, for setting in concrete, Post: 70 x 70 mm, Height above ground: 1000 mm, Total length of post: 1200 mm, Ground sleeve: 80 x 80 mm, Length of ground sleeve: 400 mm, No. of eyes: 0
  • Bollard Passau-Royal, angular, removable, Material: raw steel, Surface: hot-dip galvanised, white powder-coated with two red, reflecting rings, for setting in concrete, Post: 70 x 70 mm, Height above ground: 1000 mm, Total length of post: 1200 mm, Ground sleeve: 80 x 80 mm, Length of ground sleeve: 400 mm, No. of eyes: 0

Bollard Passau-Royal, angular, removable

Art.-No. 781934

raw steel, hot-dip galvanised, white powder-coated with two red, reflecting rings, for setting in concrete

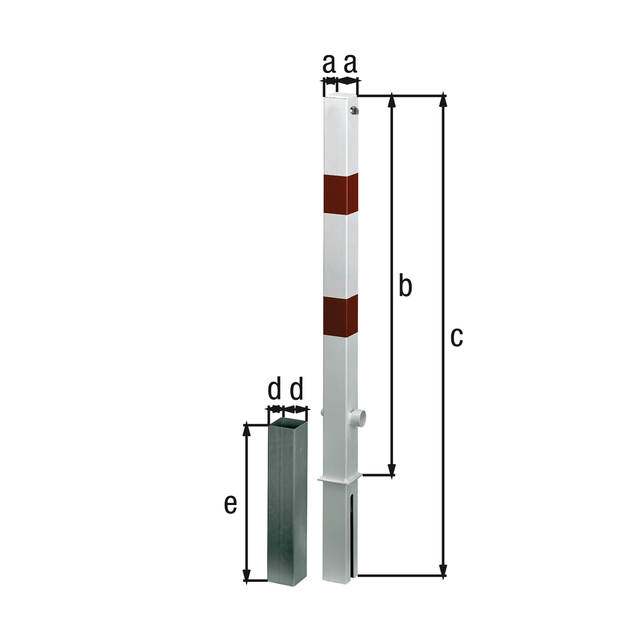

Dimension a:
70 x 70 mm
Dimension b:
1000 mm
Dimension c:
1200 mm
Dimension d:
80 x 80 mm
Dimension e:
400 mm
No. of eyes:
0
Material/surface:
raw steel, hot-dip galvanised, white powder-coated with two red, reflecting rings, for setting in concrete
UNIT:
1
PU:
Piece
Systems:
Passau
Surface / Colour:
WEISS
Fastening type:
ZEINB
:
1000 mm
Weight per UQ (kg):
10.500 kg
  • removable by using the triangular fire alarm lock
  • With double locking function: In private areas it is opened using screw in cylinder key, simultaneously also is opened in public areas for the fire brigade and police using triangular key.
  • Triangular wrench key not included. It can be ordered separately.
  • Screw in cylinder lock with two keys.
  • Plastic coatings in all RAL colours
