Bicycle stands Hagen, multiple parking system

Art.-No. 692865
2 Variants

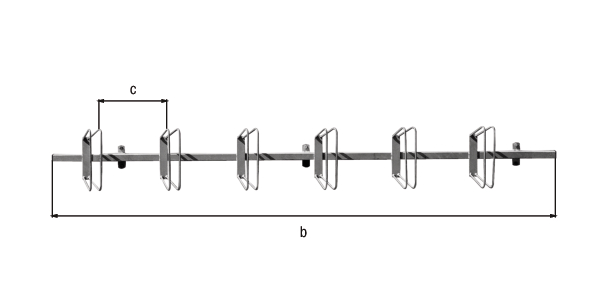

Dimension b:
2990 mm
Dimension c:
500 mm
Square tube:
60 x 60 mm
No. of parking spaces:
6
Clip Ø:
10 mm
Frame thickness:
40 x 40 mm
Stand angle:
90 °
Hole-Ø:
10 mm
Material/surface:
raw steel, hot-dip galvanised passivated, wall element without posts, for screwing on
UNIT:
1
PU:
Piece
Systems:
Hagen,MFHLT
Surface / Colour:
FVZ
Fastening type:
ZAUFSCHR
Holding cradle:
EINSTG
Material:
Steel
Weight per UQ (kg):
15.500 kg
Article-No.
Dimension b
Dimension c
Square tube
No. of parking spaces
Action
Article-No.692865
Dimension b2990 mm
Dimension c500 mm
Square tube60 x 60 mm
No. of parking spaces6
Article-No.692872
Dimension b2990 mm
Dimension c434 mm
Square tube60 x 60 mm
No. of parking spaces7
  • for bicycles with a tyre width of 25 to 45 mm
  • When mounting on a wall, leave a minimum distance of 150 mm between the ground and lower edge of rack.
