• Bicycle stand Ville, free-standing, Material: raw steel, Surface: hot-dip galvanised passivated, mounting bracket, single-sided, Length: 1050 mm, Height of bracket: 200 mm, Height of bracket: 340 mm, Distance centre - centre of bracket: 350 mm, Total width: 446 mm, Total height: 370 mm, Frame thickness: 25 x 25 mm, Clip Ø: 16 mm, No. of parking spaces: 3
  • Bicycle stand Ville, free-standing, Material: raw steel, Surface: hot-dip galvanised passivated, mounting bracket, single-sided, Length: 1050 mm, Height of bracket: 200 mm, Height of bracket: 340 mm, Distance centre - centre of bracket: 350 mm, Total width: 446 mm, Total height: 370 mm, Frame thickness: 25 x 25 mm, Clip Ø: 16 mm, No. of parking spaces: 3

Bicycle stand Ville, free-standing

Art.-No. 774394
3 Variants

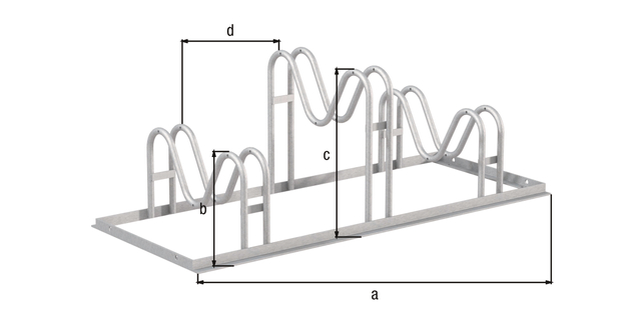

Dimension a:
1050 mm
Dimension b:
200 mm
Dimension c:
340 mm
Dimension d:
350 mm
Total width:
446 mm
Total height:
370 mm
No. of parking spaces:
3
Clip Ø:
16 mm
Frame thickness:
25 x 25 mm
Material/surface:
raw steel, hot-dip galvanised passivated, mounting bracket, single-sided
UNIT:
1
PU:
Piece
Systems:
Ville,MFHLT
Surface / Colour:
FVZ
Fastening type:
ZAUFSCHR
Holding cradle:
EINSTG
Material:
Steel
:
1050 mm
Weight per UQ (kg):
8.000 kg
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.774394
Dimension a1050 mm
Dimension b200 mm
Dimension c340 mm
Dimension d350 mm
Article-No.774400
Dimension a1750 mm
Dimension b200 mm
Dimension c340 mm
Dimension d350 mm
Article-No.774417
Dimension a2100 mm
Dimension b200 mm
Dimension c340 mm
Dimension d350 mm
  • for bicycles with a tyre width of 45 mm
  • Elements can be combined with each other as required.
  • 2 fixing clamps can be fitted to the rear angle trim for securing purposes. This allows the stands to be swung up so the floor space can be cleaned more easily. This fixing method is not possible when installing racks.
  • The fixing clamps required for screwing on are not included. Order separately under article no. 694869.
