• L-shaped duty pallet racking protector, Material: raw steel, Surface: primed, yellow powder-coated RAL 1018 with black, reflecting rings, for screwing on, Width: 160 mm, Height: 400 mm, Width of screw-on plate: 140 mm, Material thickness: 6.00 mm, No. of holes: 4, Hole: Ø14 mm, Label: without
  • L-shaped duty pallet racking protector, Material: raw steel, Surface: primed, yellow powder-coated RAL 1018 with black, reflecting rings, for screwing on, Width: 160 mm, Height: 400 mm, Width of screw-on plate: 140 mm, Material thickness: 6.00 mm, No. of holes: 4, Hole: Ø14 mm, Label: without

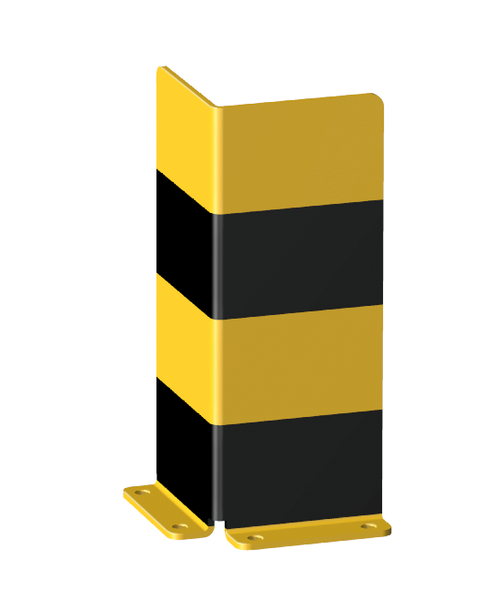

L-shaped duty pallet racking protector

Art.-No. 776510

raw steel, primed, yellow powder-coated RAL 1018 with black, reflecting rings, for screwing on

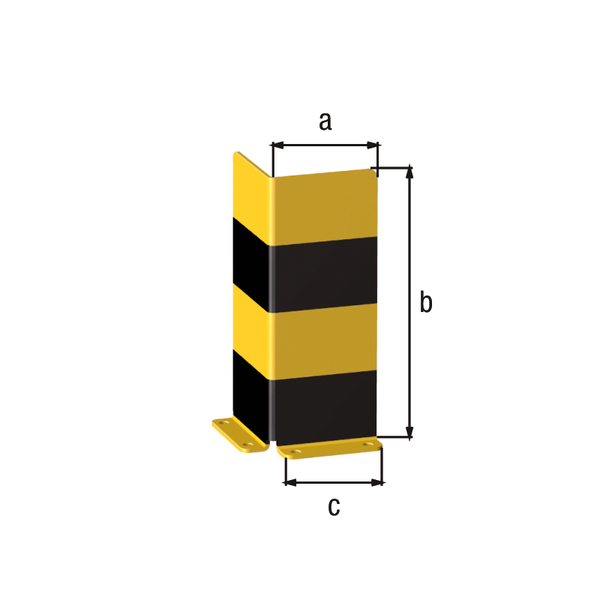

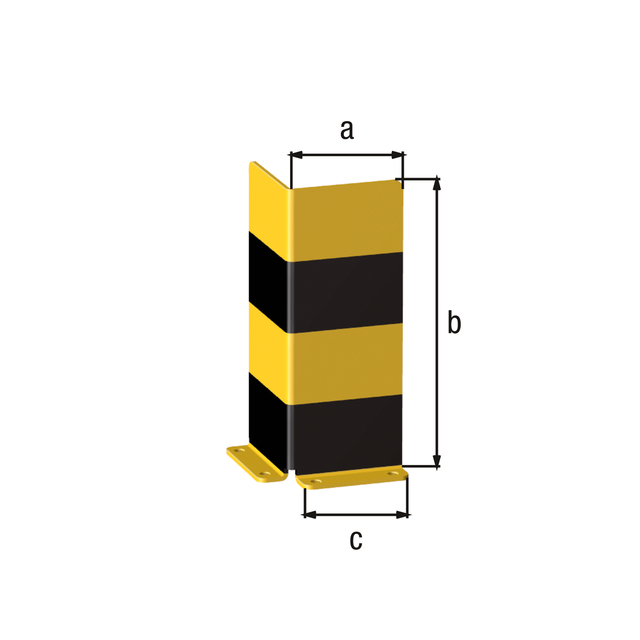

Dimension a:
160 mm
Dimension b:
400 mm
Dimension c:
140 mm
Material thickness:
6 mm
Quantity x hole Ø:
4 x Ø14 mm
Material/surface:
raw steel, primed, yellow powder-coated RAL 1018 with black, reflecting rings, for screwing on
UNIT:
1
PU:
Piece
Systems:
Skirting protection
Surface / Colour:
GELB
Fastening type:
ZAUFSCHR
:
160 mm
:
400 mm
Weight per UQ (kg):
6.800 kg
  • At least four fixing screws and plugs are required to install one U barrier.
  • Delivery does not include fixing screws.
