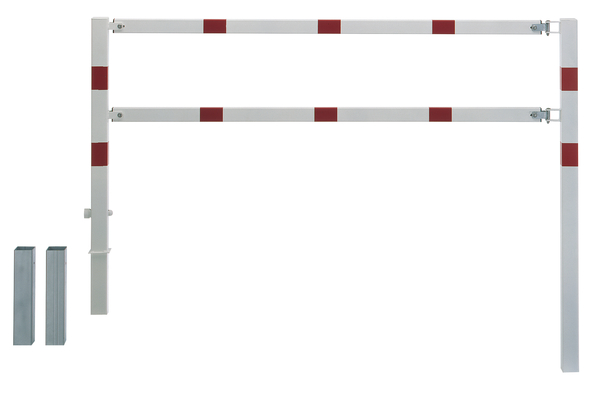

Barrier Moovy
Art.-No. 770228
- Dimension a:
- 1000 mm
- Dimension b:
- 1000 mm
- Dimension c:
- 1500 mm
- Traverse:
- 60 x 40 mm
- post:
- 70 x 70 mm
- Material/surface:
- raw steel, hot-dip galvanised passivated, for setting in concrete
- UNIT:
- 1
- PU:
- Piece
- Systems:
- Moovy
- Surface / Colour:
- FVZ
- Fastening type:
- ZEINB
- :
- 1000 mm
- :
- 1000 mm
- Weight per UQ (kg):
- 27.000 kg

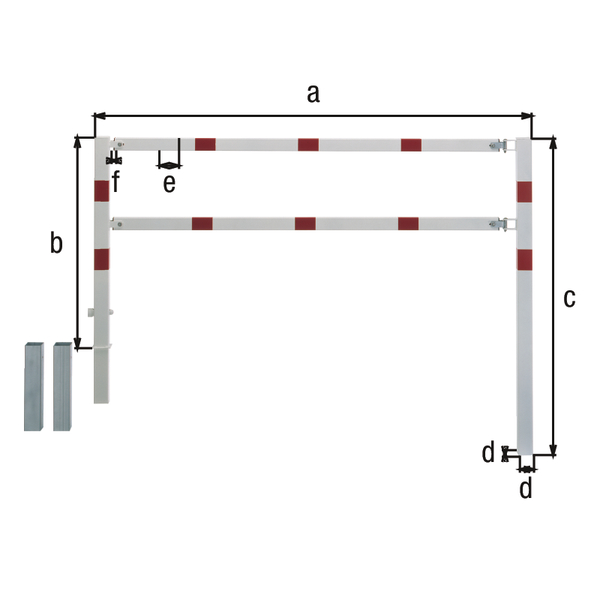

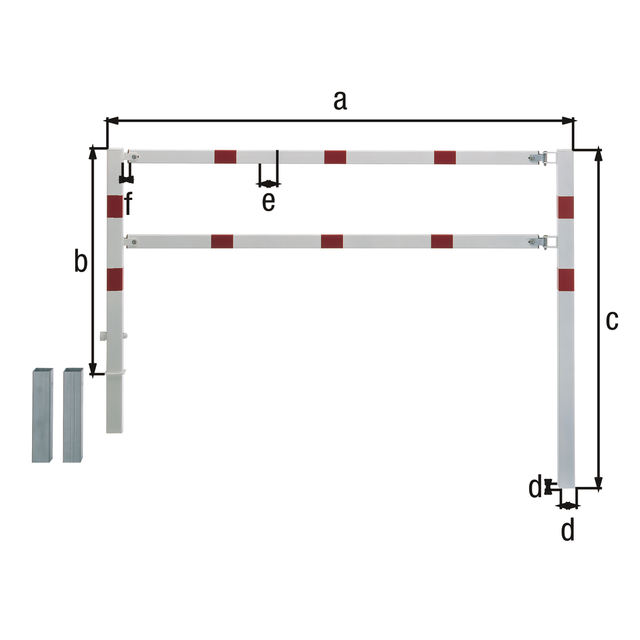

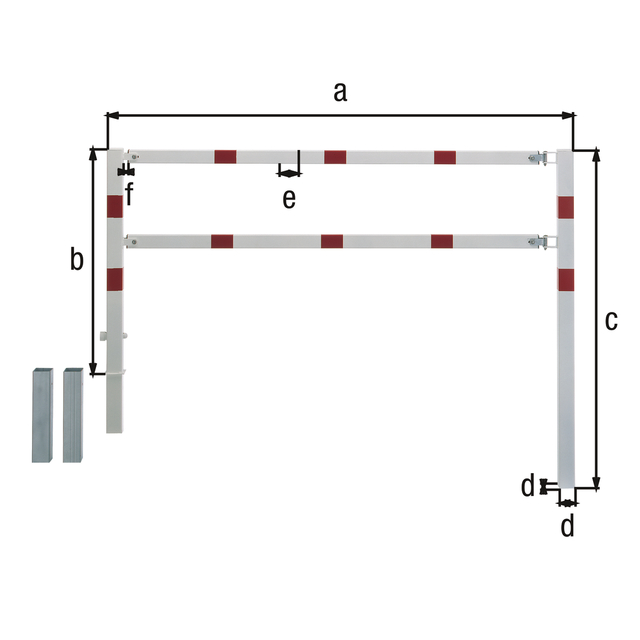

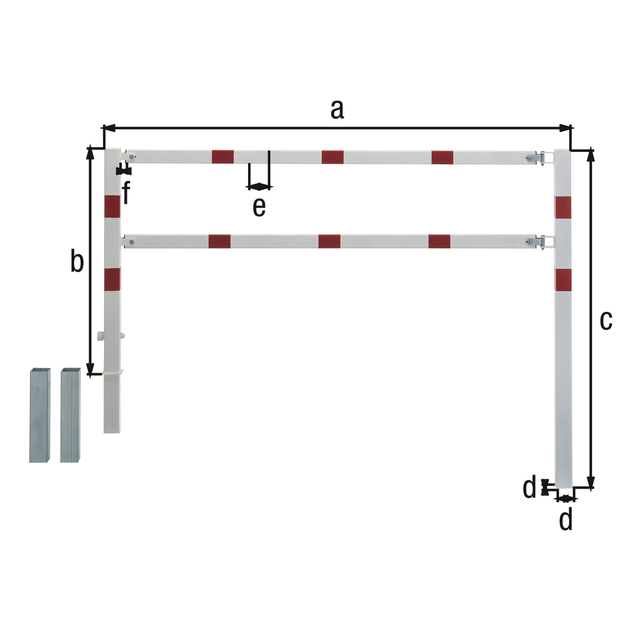

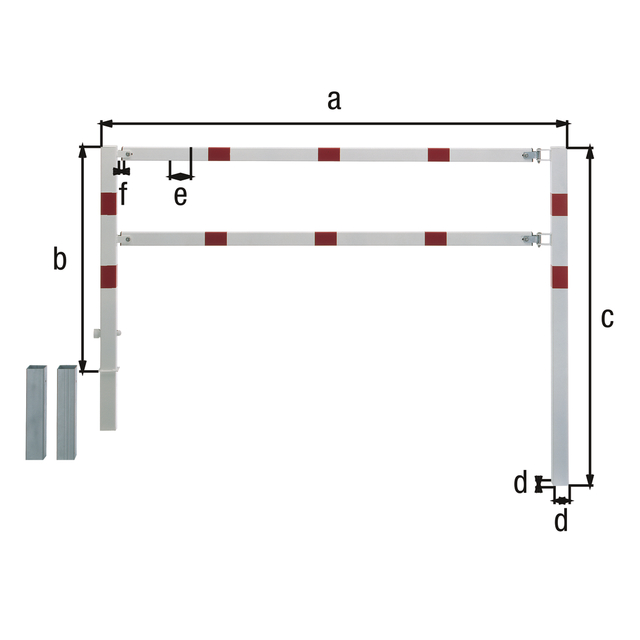

Article-No.
Dimension a
Dimension b
Dimension c
Traverse
Action
Article-No.770228
Dimension a1000 mm
Dimension b1000 mm
Dimension c1500 mm
Traverse60 x 40 mm
Article-No.770235
Dimension a1500 mm
Dimension b1000 mm
Dimension c1500 mm
Traverse60 x 40 mm
Article-No.770242
Dimension a2000 mm
Dimension b1000 mm
Dimension c1500 mm
Traverse60 x 40 mm
Article-No.770259
Dimension a2500 mm
Dimension b1000 mm
Dimension c1500 mm
Traverse60 x 40 mm
Article-No.770266
Dimension a3000 mm
Dimension b1000 mm
Dimension c1500 mm
Traverse60 x 40 mm
- offsetting the barriers creates openings for directing the flow of people, preventing people from squeezing through or pushing past, e.g. at bus stops
- Barriers are opened using triangular keys in public areas by the fire brigade and police.
- The removable post is unlocked by activating the triangle fire alarm lock, and is locked in the required position in the second ground sleeve.
- Two ground sleeves included.
- Triangle lock included.
- Triangular wrench key not included. It can be ordered separately.
