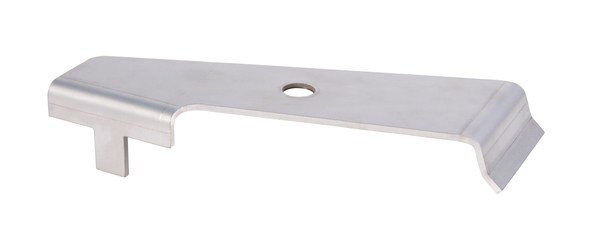

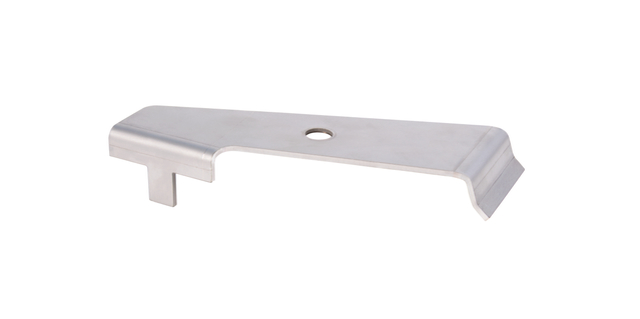

Bracket hook Cluster
Art.-No. 671211

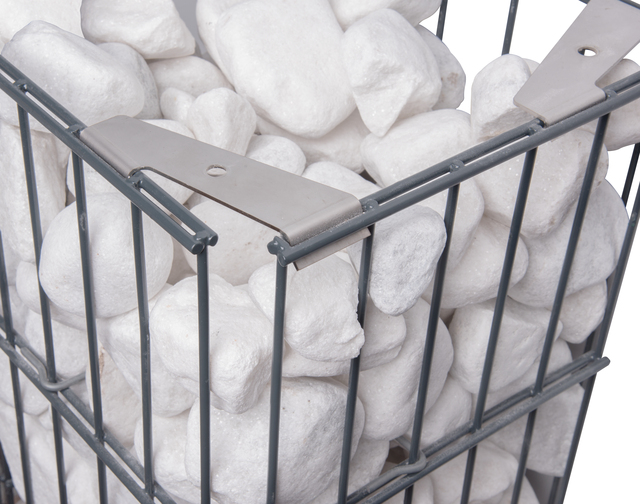

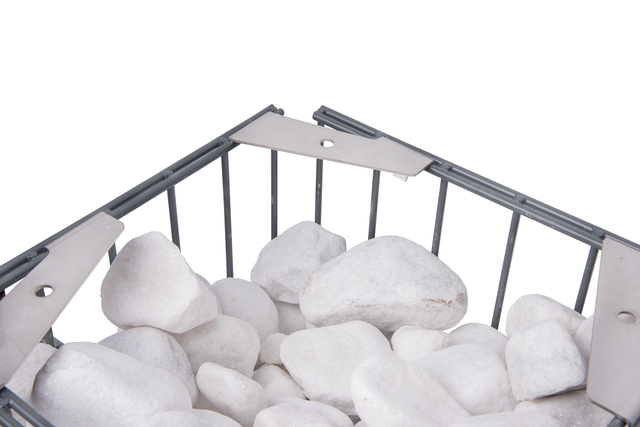

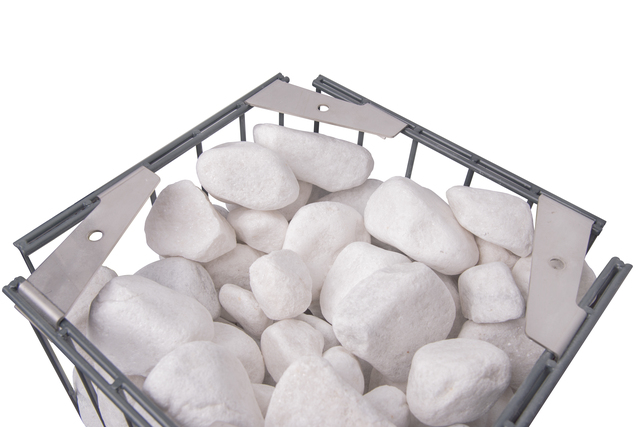

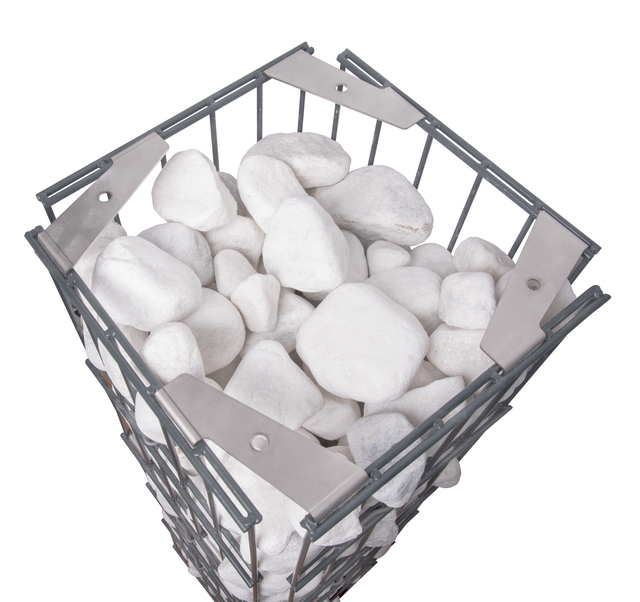

With the Bracket hook specially developed for the Cluster gabion, it is easy to construct a slim gabion with a depth of just 300 mm. The Bracket hook is simply hooked between the double bar grating panels and the side railing. To secure the Bracket hook Cluster against disassembly, the front nose is bent over with pliers.
- Length:
- 125 mm
- Width:
- 40 mm
- Height:
- 23 mm
- Material thickness:
- 2 mm
- Quantity x hole Ø:
- 1 x Ø9 mm
- Material/surface:
- stainless steel
- Systems:
- Accessories for Fence gabions,Cluster
- Material:
- Stainless steel
- Weight per UQ (kg):
- 0.071 kg
- Content Unit:
- 20 Piece

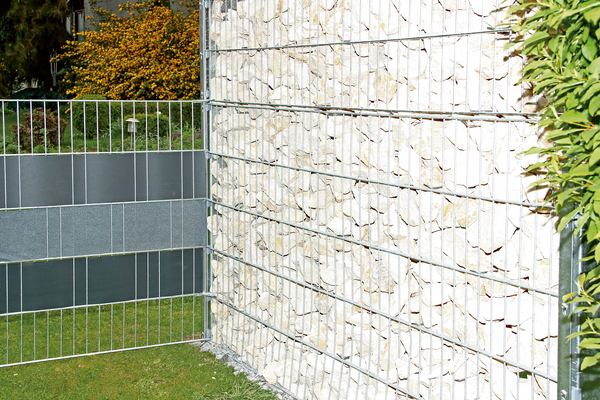

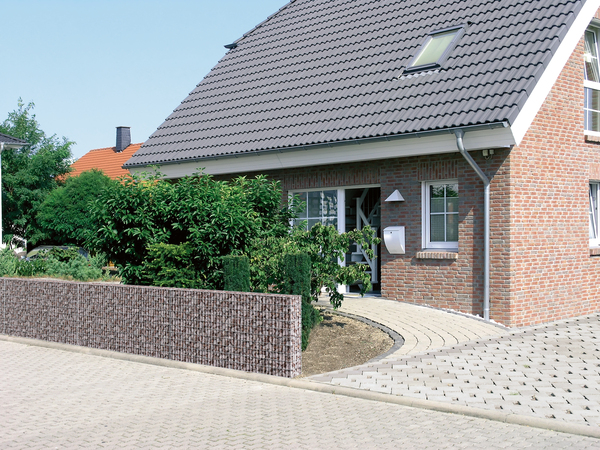

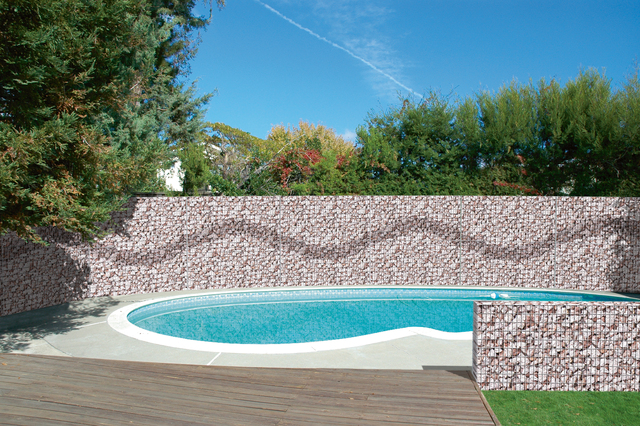

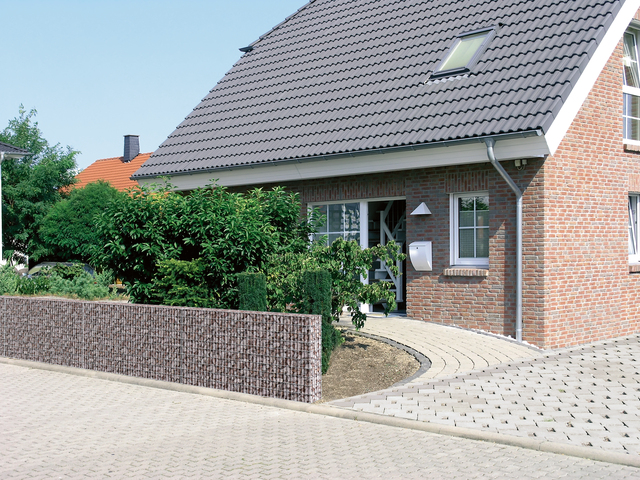

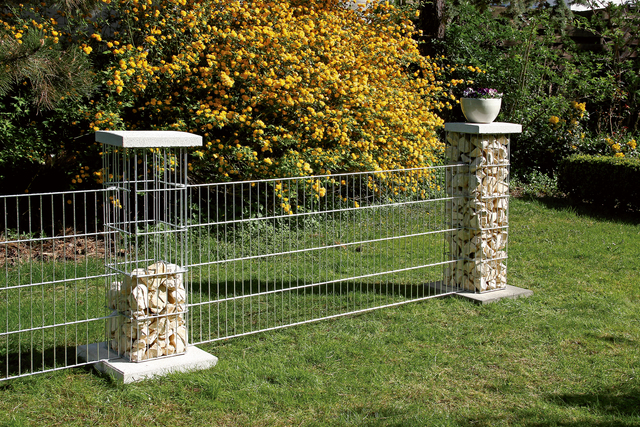

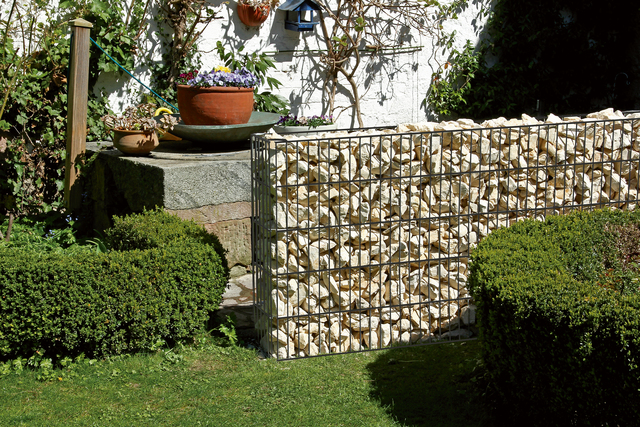

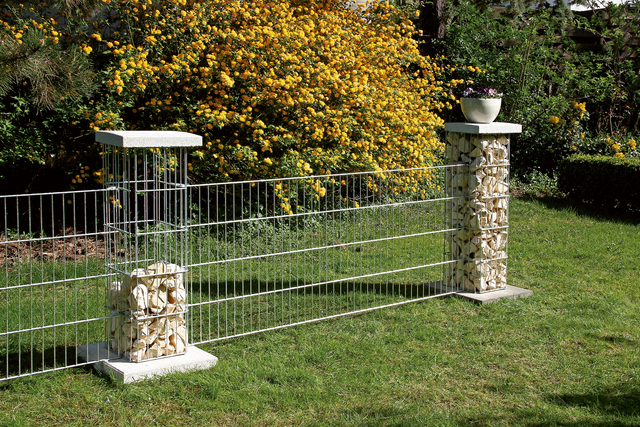

- for individual configuration with double bar grating panels, e.g. for gabion walls, refuse container partitions, trellis arrangements, plant columns, benches or garden decorations

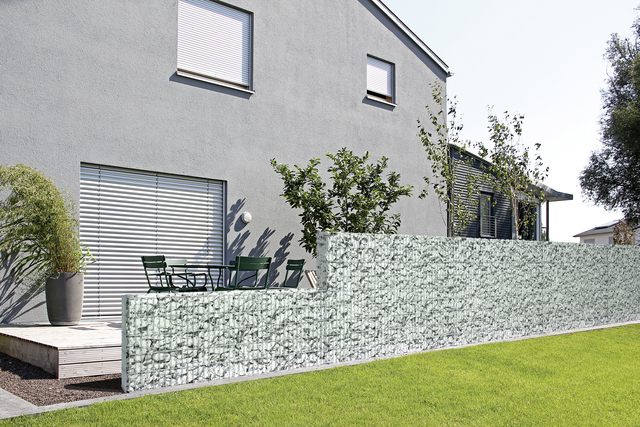

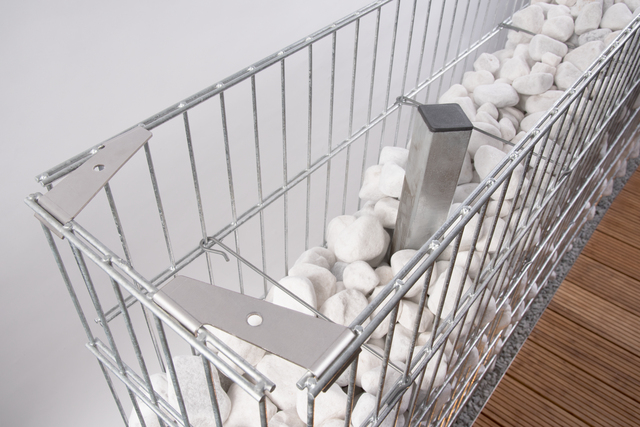

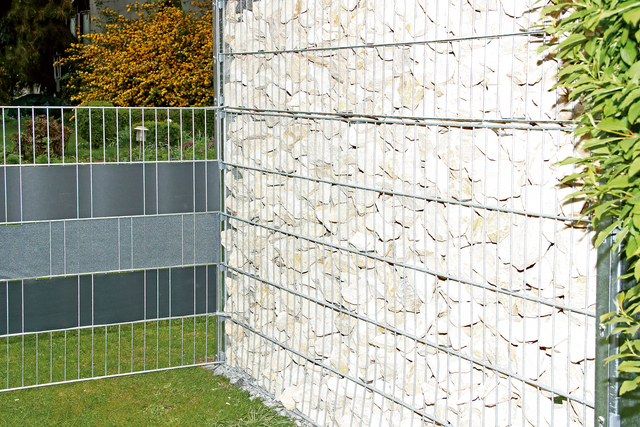

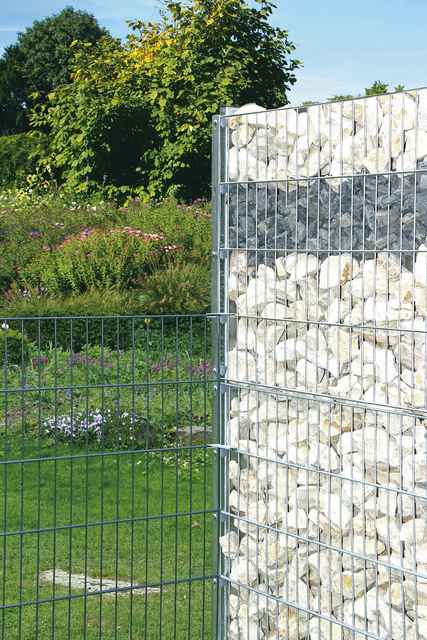

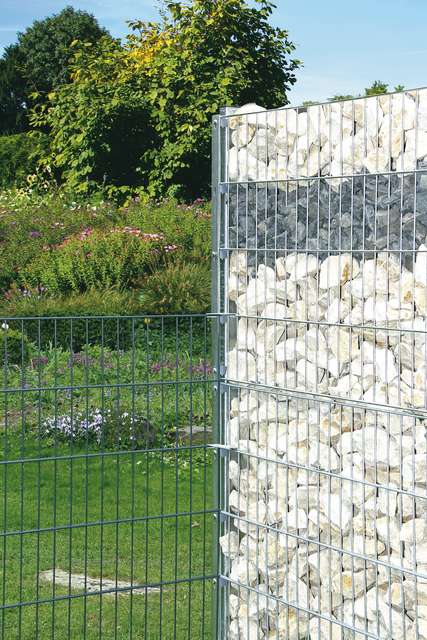

- Hook the cluster bracket hooks without force between the double bar grating panel and side grating. Bend around the front lug with pliers to secure it against coming undone. When used in conjunction with 2-metre wide double bar grating panels and side members, a streamlined gabion wall is created with a construction depth of just 300 mm.
- You can find a suitable setup video at www.youtube.com/@alberts1852
