• Cluster side grating, type 6/5/6, Material: raw steel, Surface: hot-dip galvanised, Width: 250 mm, Height: 1000 mm, Mesh width: 50 x 200 mm, 15-year warranty against rusting through
  • Cluster side grating, type 6/5/6, Material: raw steel, Surface: hot-dip galvanised, Width: 250 mm, Height: 1000 mm, Mesh width: 50 x 200 mm, 15-year warranty against rusting through

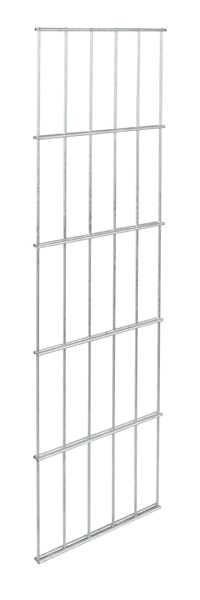

Cluster side grating

type 6/5/6
Art.-No. 671365

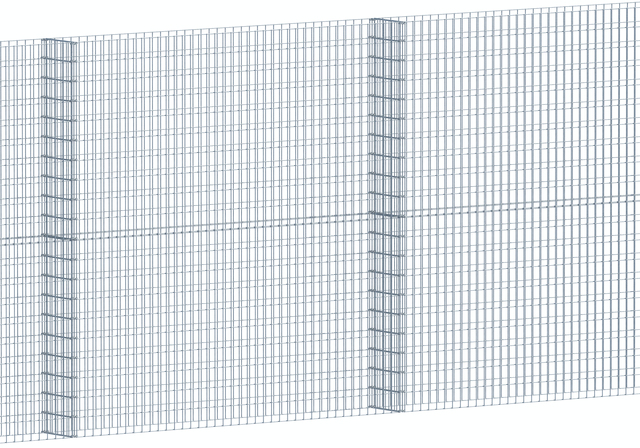

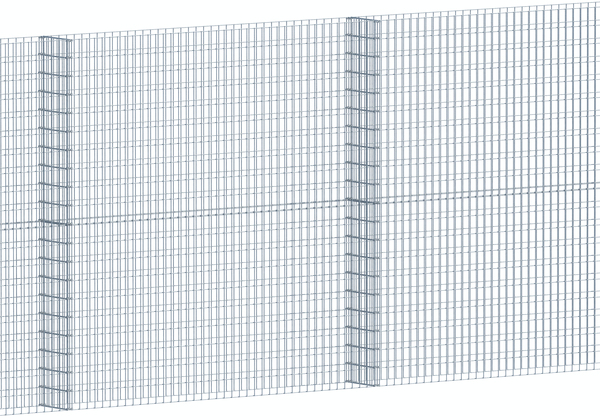

In combination with the 2m wide double bar mesh, gabions can be created quickly and easily. Width and length of the side grating are perfectly matched to the Cluster system. The vertical bars have a diameter of approx. 5 mm and the horizontal double bars have a diameter of approx. 6 mm. The high-quality surface finish provides Guaranteed corrosion protection.

3 Variants
Width:
250 mm
Height:
1000 mm
Mesh width:
50 x 200 mm
Guarantee articles:
15 years
Material/surface:
raw steel, hot-dip galvanised
Systems:
Cluster
Surface / Colour:
hot-dip galvanised
Weight per UQ (kg):
1.400 kg
Content Unit:
1 Piece
Article-No.
Width
Height
Mesh width
Guarantee articles
Action
Article-No. 671358
Width 250 mm
Height 800 mm
Mesh width 50 x 200 mm
Guarantee articles 15 years
Article-No. 671365
Width 250 mm
Height 1000 mm
Mesh width 50 x 200 mm
Guarantee articles 15 years
Article-No. 671372
Width 250 mm
Height 1800 mm
Mesh width 50 x 200 mm
Guarantee articles 15 years
  • Elements from a vertical and two horizontal welded steel wires.
  • with no excess length
  • For combination with 2m-wide double bar grating panels.

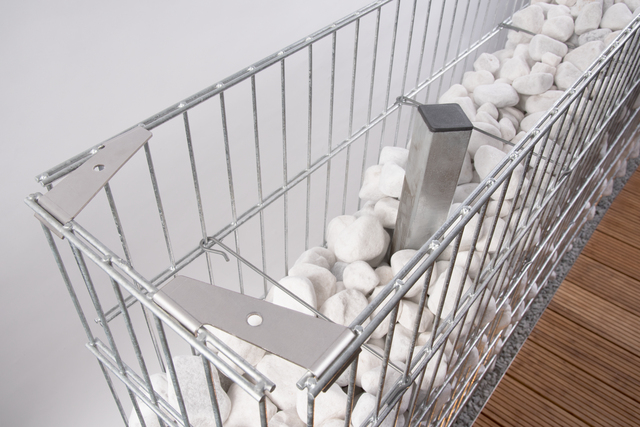

  • Connect the double bar grating panels and side elements with the bracket clip.
  • You can find a suitable setup video at www.youtube.com/@alberts1852
