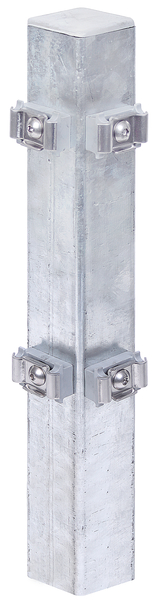

Corner post incl. clamping plate, drilling distance 400 mm
the accessories for each post are included inside the delivery package
Art.-No. 677138
- Length:
- 1200 mm
- For mat height:
- 800 mm
- Post thickness:
- 60 x 60 mm
- Fastening type:
- ZEINB
- :
- 15 years
- Material/surface:
- raw steel, hot-dip galvanised, for setting in concrete
- UNIT:
- 1
- PU:
- Piece
- Systems:
- PF,DSM
- Surface / Colour:
- FVZ
- Weight per UQ (kg):
- 4.570 kg
Article-No.
Length
For mat height
Post thickness
Fastening type
Action
Article-No.677121
Length1000 mm
For mat height600 mm
Post thickness60 x 60 mm
Fastening typeZEINB
Article-No.677138
Length1200 mm
For mat height800 mm
Post thickness60 x 60 mm
Fastening typeZEINB
Article-No.677145
Length1500 mm
For mat height1000 mm
Post thickness60 x 60 mm
Fastening typeZEINB
Article-No.677152
Length1750 mm
For mat height1200 mm
Post thickness60 x 60 mm
Fastening typeZEINB
Article-No.677169
Length2000 mm
For mat height1400 mm
Post thickness60 x 60 mm
Fastening typeZEINB
Article-No.677176
Length2250 mm
For mat height1600 mm
Post thickness60 x 60 mm
Fastening typeZEINB
Article-No.677183
Length2400 mm
For mat height1800 mm
Post thickness60 x 60 mm
Fastening typeZEINB
Article-No.677190
Length2600 mm
For mat height2000 mm
Post thickness60 x 60 mm
Fastening typeZEINB
Article-No.677213
Length3000 mm
For mat height2400 mm
Post thickness60 x 60 mm
Fastening typeZEINB
- If it is required to screw on to the posts, then a post support must be used.
- Mounted trestles and attached plastic caps, stainless steel clamping plates and pan-head screws with 5.5 mm safety hexagon sockets included.
- Allen keys not included. Order separately under article no. 657048.
