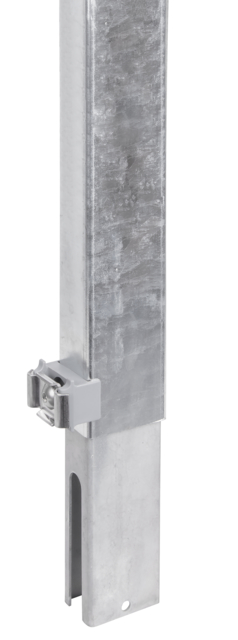

Fence extension Erhard incl. clamping plate
for easy extension of an existing double rod mesh mat fence
Art.-No. 672683
- Total length with adapter:
- 965 mm
- Height:
- 800 mm
- For posts:
- 60 x 40 mm
- Guarantee articles:
- 15 years
- Material/surface:
- raw steel, hot-dip galvanised passivated
- Systems:
- Double bar mat,Accessory box
- Surface / Colour:
- galvanised
- Weight per UQ (kg):
- 3.300 kg
- Content Unit:
- 1 Piece
Article-No.
Total length with adapter
Height
For posts
Guarantee articles
Action
Article-No.
672652
Total length with adapter
765 mm
Height
600 mm
For posts
60 x 40 mm
Guarantee articles
15 years
Article-No.
672683
Total length with adapter
965 mm
Height
800 mm
For posts
60 x 40 mm
Guarantee articles
15 years
Article-No.
672713
Total length with adapter
765 mm
Height
600 mm
For posts
60 x 60 mm
Guarantee articles
15 years
Article-No.
672744
Total length with adapter
965 mm
Height
800 mm
For posts
60 x 60 mm
Guarantee articles
15 years
- The accessories for each post are included pre-installed with the delivery package.
- Also suitable for 60 x 60 mm corner posts
- The existing fence does not have to be disassembled.
- Important: This adapter does not have the strength of a solid post and it must not be combined with privacy protection (increased wind loads).
- The total post (including extension) should not exceed 2,000 mm, the portion of post attached should not be longer than 1,000 mm.
- The mounting is suitable for posts with a material thickness of between 1.5 mm to 2 mm. It is recommended to screw it on at the side when low thickness materials are used, to increase the stability.
- You can find a suitable setup video at www.youtube.com/@alberts1852
- Please order the double rod grid mats of height 600 mm or 800 mm separately.
- Screws for an optional side screw connection are not included. These can be ordered separately with no. 554439.
