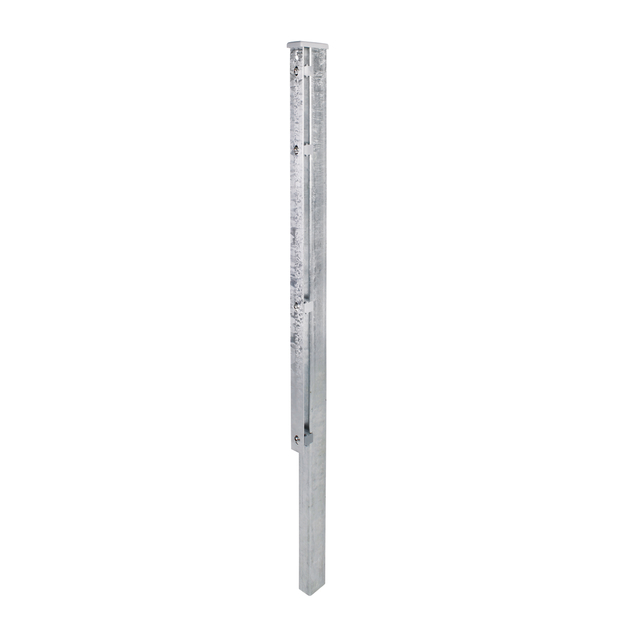

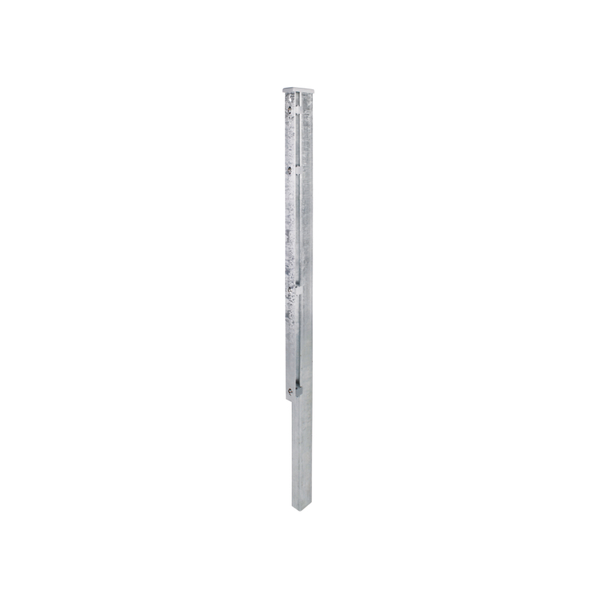

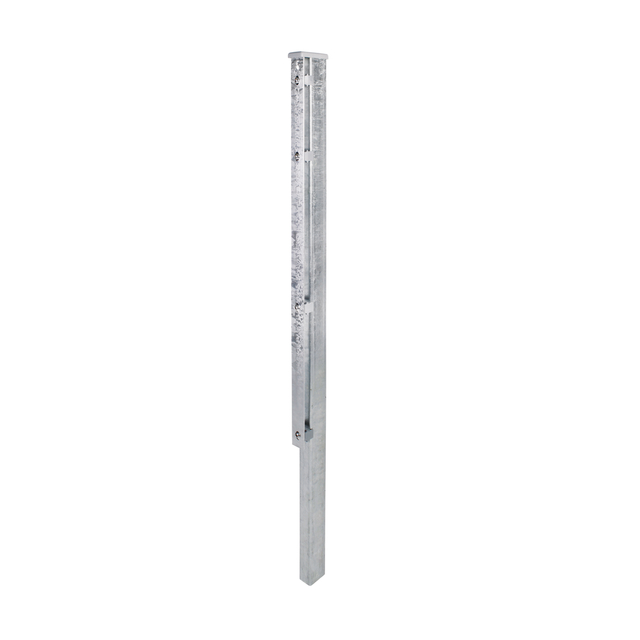

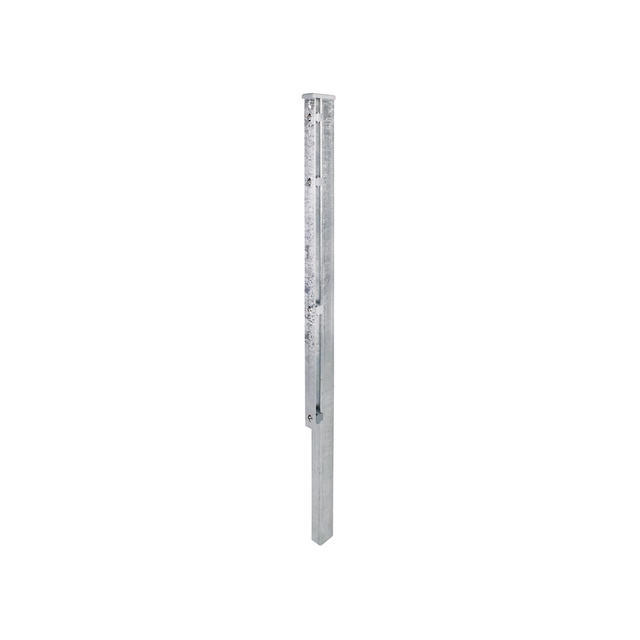

Fence post incl. flat iron, drilling distance 400 mm
Art.-No. 970000
- Length:
- 1000 mm
- For mat height:
- 600 mm
- Post thickness:
- 60 x 40 mm
- Flat iron:
- 40 x 4 mm
- Fastening type:
- ZEINB
- :
- 15 years
- Material/surface:
- raw steel, hot-dip galvanised, for setting in concrete
- UNIT:
- 1
- PU:
- Piece
- Systems:
- PF,DSM
- Surface / Colour:
- FVZ
- Weight per UQ (kg):
- 4.000 kg
Article-No.
Length
For mat height
Post thickness
Flat iron
Action
Article-No.970000
Length1000 mm
For mat height600 mm
Post thickness60 x 40 mm
Flat iron40 x 4 mm
Article-No.970017
Length1200 mm
For mat height800 mm
Post thickness60 x 40 mm
Flat iron40 x 4 mm
Article-No.970024
Length1500 mm
For mat height1000 mm
Post thickness60 x 40 mm
Flat iron40 x 4 mm
Article-No.970031
Length1750 mm
For mat height1200 mm
Post thickness60 x 40 mm
Flat iron40 x 4 mm
Article-No.970048
Length2000 mm
For mat height1400 mm
Post thickness60 x 40 mm
Flat iron40 x 4 mm
Article-No.970055
Length2250 mm
For mat height1600 mm
Post thickness60 x 40 mm
Flat iron40 x 4 mm
Article-No.970062
Length2400 mm
For mat height1800 mm
Post thickness60 x 40 mm
Flat iron40 x 4 mm
Article-No.970079
Length2600 mm
For mat height2000 mm
Post thickness60 x 40 mm
Flat iron40 x 4 mm
Article-No.970086
Length2800 mm
For mat height2200 mm
Post thickness60 x 40 mm
Flat iron40 x 4 mm
Article-No.970093
Length3000 mm
For mat height2400 mm
Post thickness60 x 40 mm
Flat iron40 x 4 mm
- Post cap incl. assembly hook that simplifies fixing the flat steel in place.
- If it is required to screw on to the posts, then a post support must be used.
- Mounted trestles and attached plastic post caps, flat iron, and pan-head screws with 5.5 mm safety hexagon sockets included.
- Allen keys not included. Order separately under article no. 657048.
- Individual drilling patterns.
