• Panel connector for double bar grating panels, Material: raw steel, Surface: hot-dip galvanised, Type: two parts, Length: 140 mm, Width: 18 mm, Height: 15.5 mm, For posts-Ø: 48 mm, Screw: M8, Screw length: 80 mm, 15-year warranty against rusting through
  • Panel connector for double bar grating panels, Material: raw steel, Surface: hot-dip galvanised, Type: two parts, Length: 140 mm, Width: 18 mm, Height: 15.5 mm, For posts-Ø: 48 mm, Screw: M8, Screw length: 80 mm, 15-year warranty against rusting through
  • Panel connector for double bar grating panels, Material: raw steel, Surface: hot-dip galvanised, Type: two parts, Length: 140 mm, Width: 18 mm, Height: 15.5 mm, For posts-Ø: 48 mm, Screw: M8, Screw length: 80 mm, 15-year warranty against rusting through

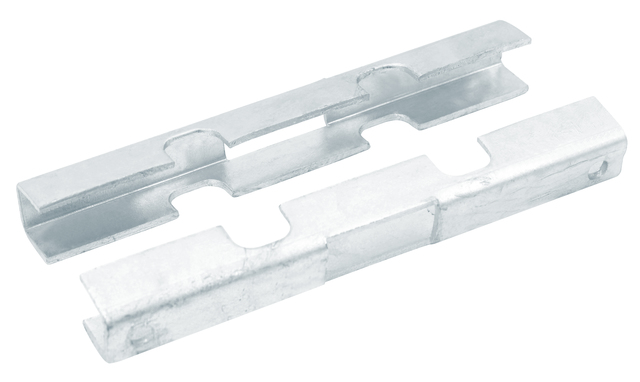

Panel connector for double bar grating panels

Art.-No. 673239

Length:
140 mm
Width:
18 mm
Height:
15.5 mm
Material/surface:
raw steel, hot-dip galvanised
UNIT:
1
PU:
Piece
Systems:
ZUBKI
Surface / Colour:
VERZ
Type:
two parts
Weight per UQ (kg):
0.200 kg
Article-No.
Length
Width
Height
Material/surface
Action
Article-No.673239
Length140 mm
Width18 mm
Height15.5 mm
Material/surfaceraw steel, hot-dip galvanised

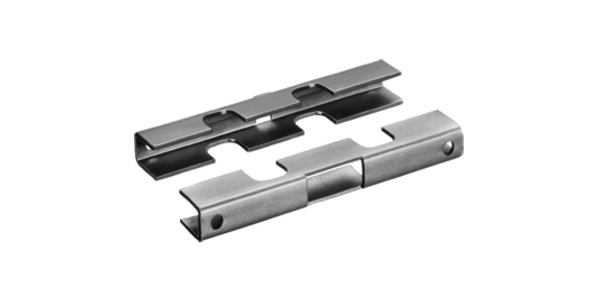

Article-No.672928
Length140 mm
Width18 mm
Height15.5 mm
Material/surfaceraw steel, hot-dip galvanised
Article-No.672874
Length140 mm
Width18 mm
Height15.5 mm
Material/surfaceraw steel, hot-dip galvanised
  • U shaped

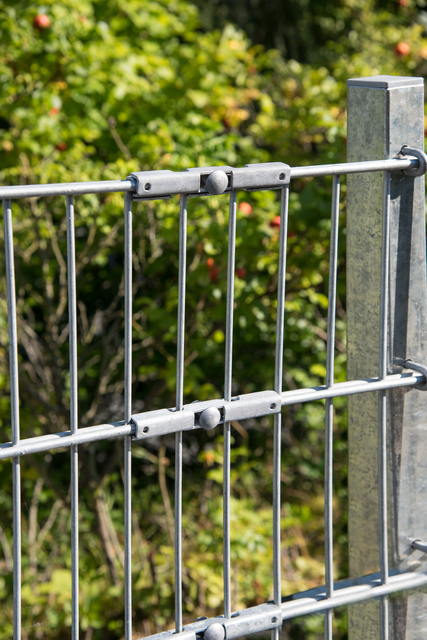

  • Stable connection of panels to fence posts with drill holes (e.g. no. 684990 ff.)

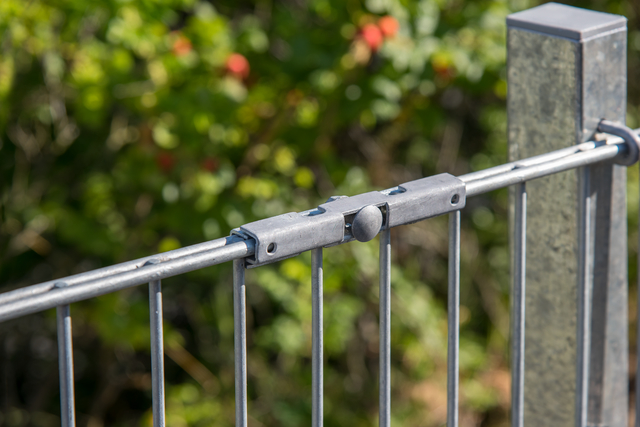

  • Stable connection of two-part panels when connecting them together without additional posts.
  • Stainless steel screws
  • Please use screw thickness M8 for connecting double bar grating panel type 6/5/6, whereas screw thickness M10 is used for connecting type 8/6/8.

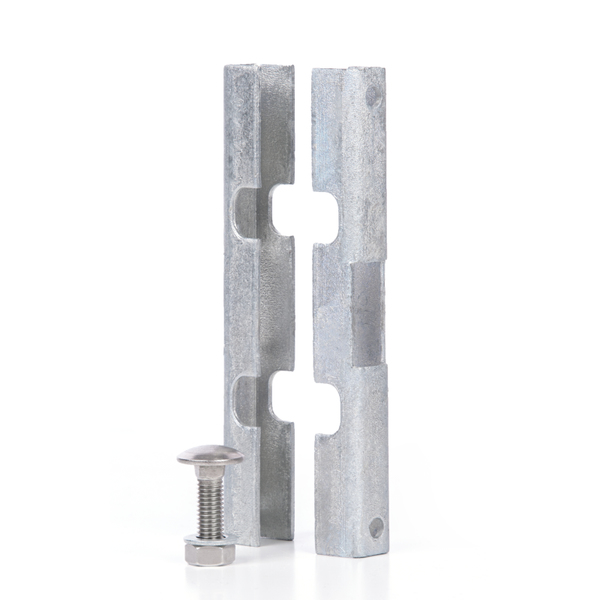

  • Delivery includes screw, nut and washer, stainless steel
  • Plastic coatings in all RAL colours
