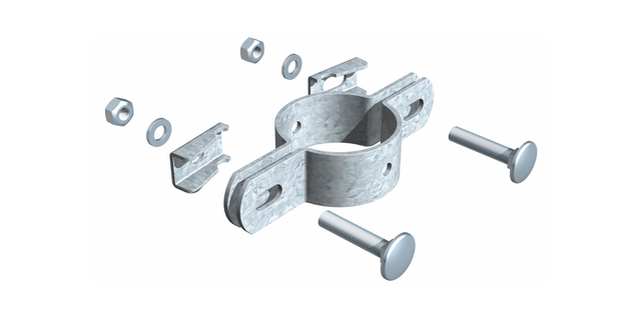

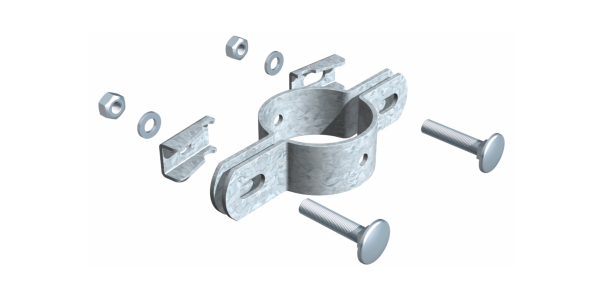

Double ring clip
for fixing fence panels to posts
Art.-No. 563387

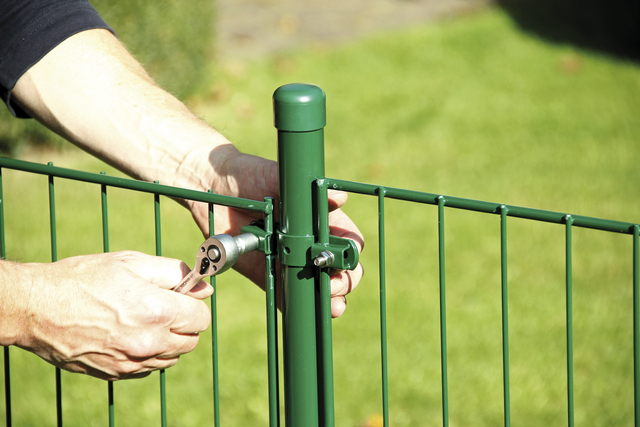

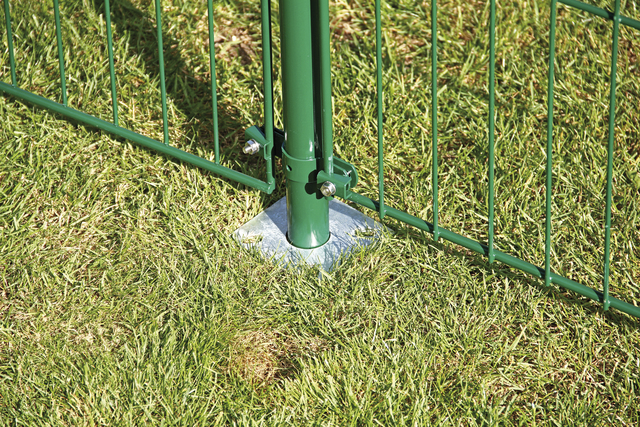

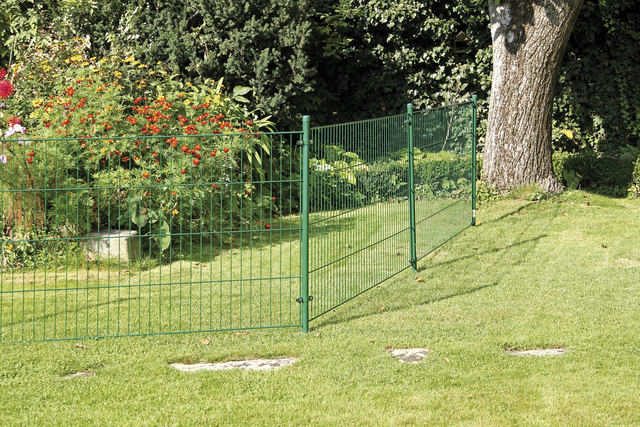

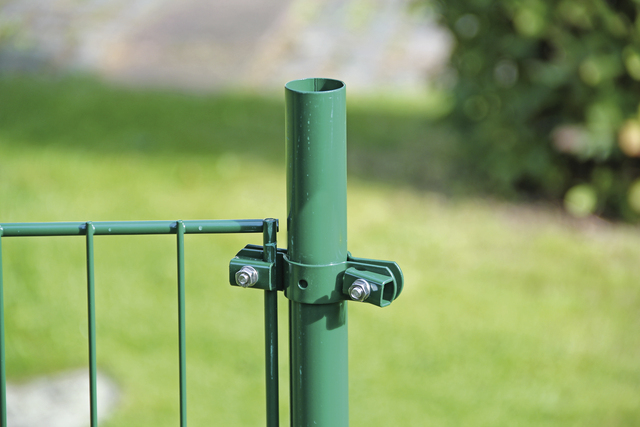

The Double ring clamp for the Single bar grating panel fencing system enables simple and stable attachment of the Single bar grating panels to the fence post within the fence run. The variable attachment to the fence post is a great advantage for fence runs on a slope.
- Screw length:
- 25 mm
- Screw:
- M6
- For posts-Ø:
- 34 mm
- Guarantee articles:
- 15 years
- Material/surface:
- raw steel, hot-dip galvanised
- Systems:
- Accessory box
- Surface / Colour:
- galvanised
- Weight per UQ (kg):
- 0.125 kg
- Content Unit:
- 1 Piece
- ONE clamp type for ALL single and double bar mats
- Reliably clamps single and double bar mats with vertical wire thicknesses between 3.5 mm and 8 mm.
- Stainless steel fixing screws included.
