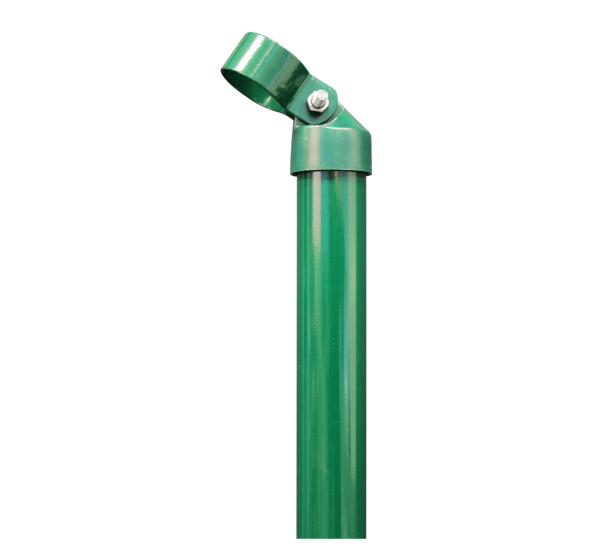

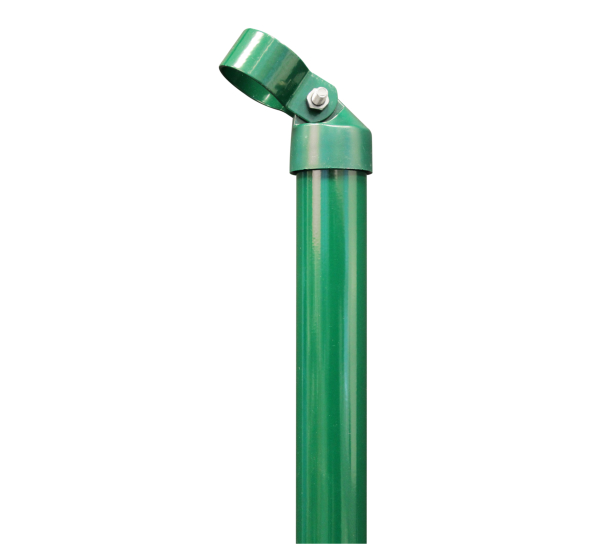

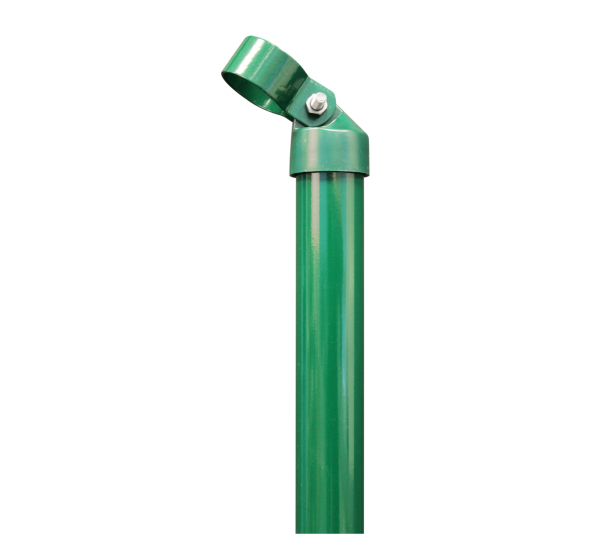

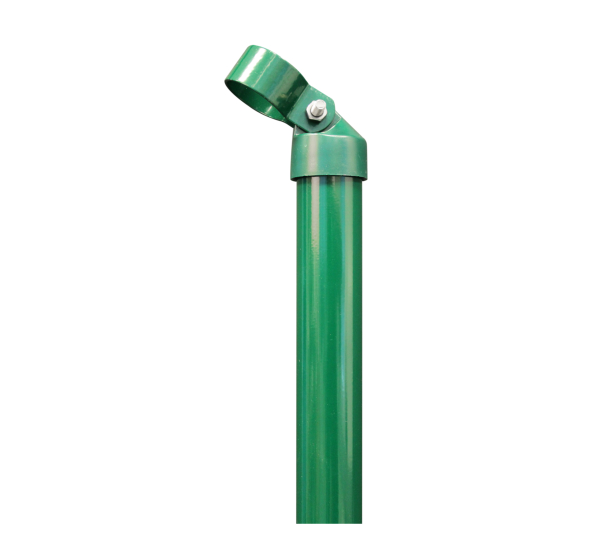

Brace
Art.-No. 623005
- Length:
- 900 mm
- Circlip dia.:
- 34 mm
- Tube Ø:
- 34 mm
- Fastening type:
- ZEINB
- :
- 10 years
- Material/surface:
- raw steel, zinc phosphate plated, green powder-coated RAL 6005, for setting in concrete
- UNIT:
- 6
- PU:
- Piece
- Systems:
- Fix-Clip Pro®,MDR
- Surface / Colour:
- GRUEN
- Weight per UQ (kg):
- 0.792 kg
Article-No.
Length
Circlip dia.
Tube Ø
Fastening type
Action
Article-No.623005
Length900 mm
Circlip dia.34 mm
Tube Ø34 mm
Fastening typeZEINB
Article-No.623012
Length1150 mm
Circlip dia.34 mm
Tube Ø34 mm
Fastening typeZEINB
Article-No.623029
Length1500 mm
Circlip dia.34 mm
Tube Ø34 mm
Fastening typeZEINB
Article-No.623036
Length1750 mm
Circlip dia.34 mm
Tube Ø34 mm
Fastening typeZEINB
Article-No.623043
Length2000 mm
Circlip dia.34 mm
Tube Ø34 mm
Fastening typeZEINB
Article-No.623302
Length1500 mm
Circlip dia.38 mm
Tube Ø34 mm
Fastening typeZEINB
Article-No.623319
Length1750 mm
Circlip dia.38 mm
Tube Ø34 mm
Fastening typeZEINB
Article-No.623326
Length2000 mm
Circlip dia.38 mm
Tube Ø34 mm
Fastening typeZEINB
Article-No.623333
Length2250 mm
Circlip dia.38 mm
Tube Ø34 mm
Fastening typeZEINB
Article-No.623340
Length2500 mm
Circlip dia.38 mm
Tube Ø34 mm
Fastening typeZEINB
Article-No.623401
Length2000 mm
Circlip dia.42 mm
Tube Ø34 mm
Fastening typeZEINB
Article-No.623418
Length2250 mm
Circlip dia.42 mm
Tube Ø34 mm
Fastening typeZEINB
Article-No.623425
Length2500 mm
Circlip dia.42 mm
Tube Ø34 mm
Fastening typeZEINB
Article-No.632106
Length1500 mm
Circlip dia.38 mm
Tube Ø38 mm
Fastening typeZEINB
Article-No.632113
Length1750 mm
Circlip dia.38 mm
Tube Ø38 mm
Fastening typeZEINB
Article-No.632120
Length2000 mm
Circlip dia.38 mm
Tube Ø38 mm
Fastening typeZEINB
Article-No.632137
Length2250 mm
Circlip dia.38 mm
Tube Ø38 mm
Fastening typeZEINB
Article-No.632144
Length2500 mm
Circlip dia.38 mm
Tube Ø38 mm
Fastening typeZEINB
Article-No.632151
Length2500 mm
Circlip dia.48 mm
Tube Ø38 mm
Fastening typeZEINB
- with firmly mounted brace caps
- Braces of Ø34 mm may be screwed on using the brace plate or secured to the impact ground sleeve.
