• Brace plate, Material: raw steel, Surface: hot-dip galvanised, for screwing on, Plate length: 100 mm, Plate width: 100 mm, Inner dia.: 34 mm, Hole: Ø9 mm, 15-year warranty against rusting through
  • Brace plate, Material: raw steel, Surface: hot-dip galvanised, for screwing on, Plate length: 100 mm, Plate width: 100 mm, Inner dia.: 34 mm, Hole: Ø9 mm, 15-year warranty against rusting through

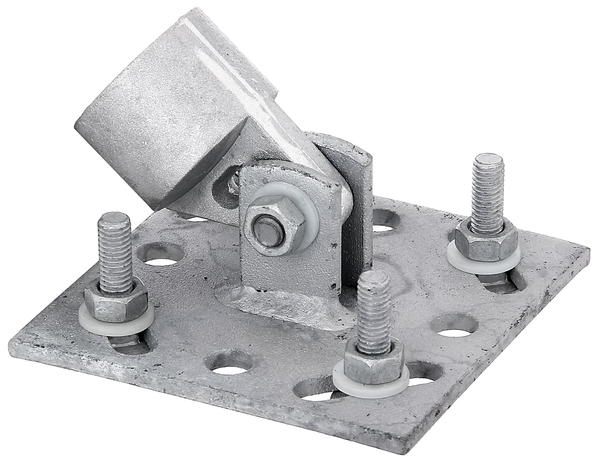

Brace plate

Art.-No. 658557

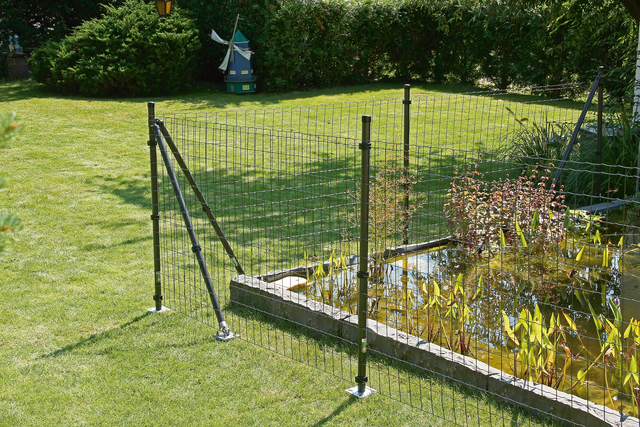

If the local conditions do not allow the Braces to be fixed in the concrete foundation, assembly with drive-in ground sleeves is possible. The Braces run diagonally to the Fence posts and are securely bolted to the Fence post spikes with the Brace plates.

raw steel, hot-dip galvanised, for screwing on

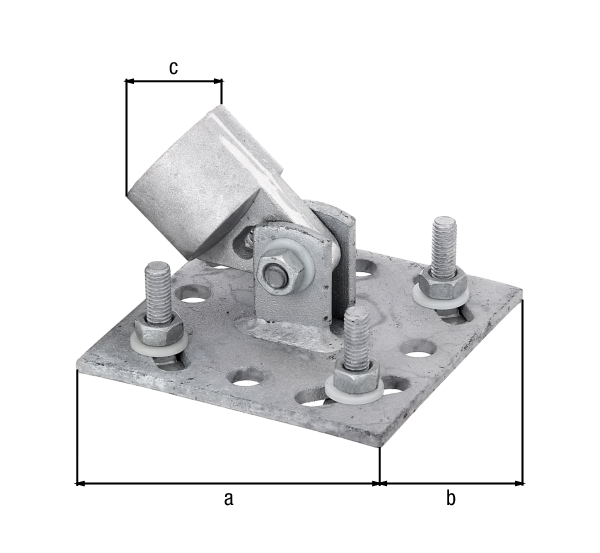

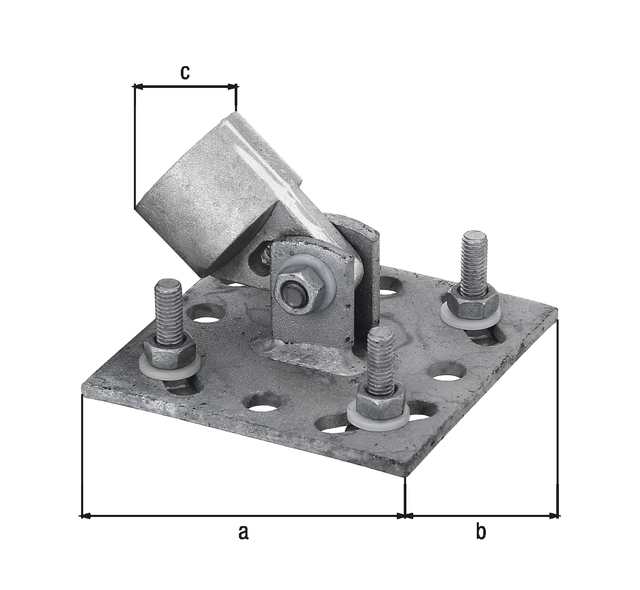

Dimension a:
100 mm
Dimension b:
100 mm
Dimension c-Ø:
34 mm
Fastening type:
for screwing on
Guarantee articles:
15 years
Hole-Ø:
9 mm
Material/surface:
raw steel, hot-dip galvanised, for screwing on
Systems:
Wire mesh,Accessories for wire fences,Fix-Clip Pro®
Surface / Colour:
hot-dip galvanised
Inner dia.:
34 mm
Plate width:
100 mm
Weight per UQ (kg):
0.555 kg
Content Unit:
1 Piece
  • suitable for fence post spikes for 658601 and 658670 steel tubing fence posts
  • fits braces with diameter 34 mm
  • Braces can be mounted to the fence post spike at any angle.
