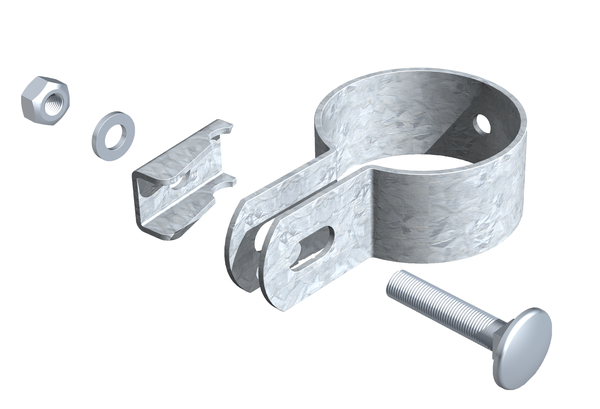

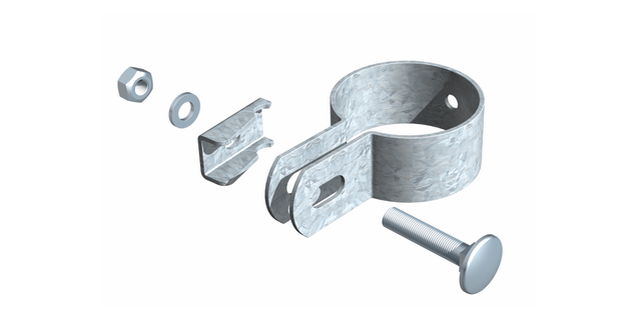

End clip
for fixing fence panels to posts
Art.-No. 563448
The End clip for the Single bar grating panel fencing system is installed at the beginning and end of the fence run on the first and last panel respectively, thus creating a visually appealing finish. The End clip is also suitable for angled fence runs to enable a wide variety of Angles. In this case, two End clips are mounted offset to the post.
- Screw length:
- 25 mm
- Screw:
- M6
- For posts-Ø:
- 34 mm
- Guarantee articles:
- 15 years
- Material/surface:
- raw steel, hot-dip galvanised
- Systems:
- Accessory box
- Surface / Colour:
- galvanised
- Weight per UQ (kg):
- 0.076 kg
- Content Unit:
- 1 Piece
- ONE clamp type for ALL single and double bar mats
- Reliably clamps single and double bar mats with vertical wire thicknesses between 3.5 mm and 8 mm.
- Stainless steel fixing screws included.
