• L post support for square timber posts, Material: raw steel, Surface: hot-dip galvanised, for screwing in, Total height: 470 mm, Width: 95 mm, Height: 70 mm, Depth: 70 mm, Material thickness: 4.00 mm, No. of holes: 1 / 4, Hole: Ø15 / Ø7.5 mm
  • L post support for square timber posts, Material: raw steel, Surface: hot-dip galvanised, for screwing in, Total height: 470 mm, Width: 95 mm, Height: 70 mm, Depth: 70 mm, Material thickness: 4.00 mm, No. of holes: 1 / 4, Hole: Ø15 / Ø7.5 mm

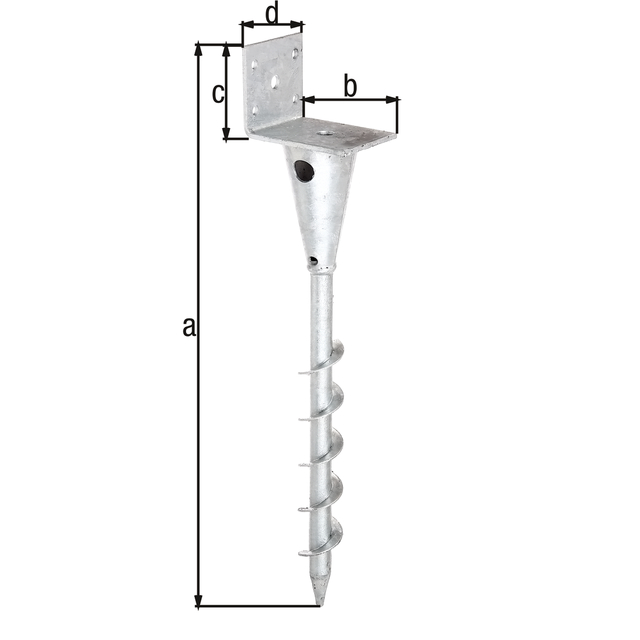

L post support for square timber posts

Art.-No. 212278

raw steel, hot-dip galvanised, for screwing in

Dimension a:
470 mm
Dimension b:
95 mm
Dimension c:
70 mm
Dimension d:
70 mm
Fastening type:
ZEINSCHR
Material thickness:
4 mm
Quantity x hole Ø:
1 x Ø15 mm
Quantity x hole Ø:
4 x Ø7.5 mm
Material/surface:
raw steel, hot-dip galvanised, for screwing in
UNIT:
1
PU:
Piece
Surface / Colour:
FVZ
Material:
Steel
:
95 mm
:
70 mm
:
70 mm
:
470 mm
Weight per UQ (kg):
1.300 kg
  • suitable for timbers up to 90 x 90 mm
  • suitable for terraces with wooden tiles
  • Suitable for fixing horizontal square fence posts on the ground.
  • For the installation we recommend drive-in tool no. 208394.
  • Suitable fasteners can be found in the range “Screws and accessories”.
