• L post support with concrete anchor made of riffle steel, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210, Width: 80 mm, Height: 104 mm, Length of concrete anchor: 200 mm, Depth: 60 mm, Concrete anchor Ø: 16 mm, Material thickness: 4.00 mm, No. of holes: 3, Hole: Ø11 mm, 15-year warranty against rusting through
  • L post support with concrete anchor made of riffle steel, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210, Width: 80 mm, Height: 104 mm, Length of concrete anchor: 200 mm, Depth: 60 mm, Concrete anchor Ø: 16 mm, Material thickness: 4.00 mm, No. of holes: 3, Hole: Ø11 mm, 15-year warranty against rusting through

L post support with concrete anchor made of riffle steel

Art.-No. 213954

raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210

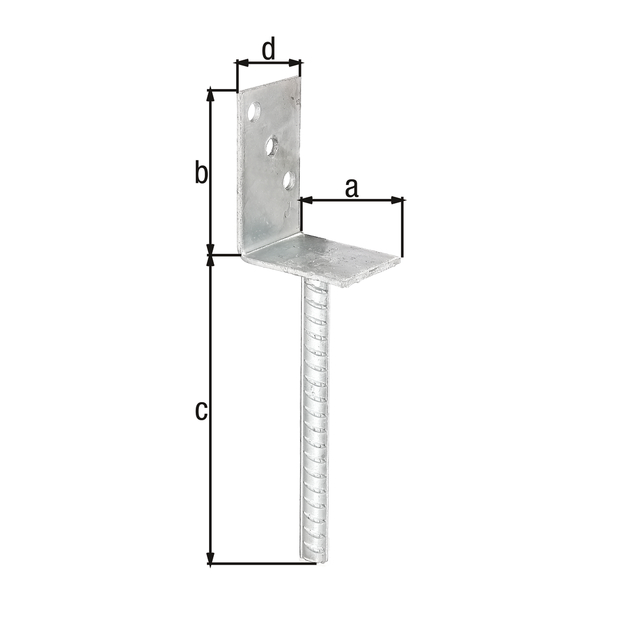

Dimension a:
80 mm
Dimension b:
104 mm
Dimension c:
200 mm
Dimension d:
60 mm
Concrete anchor Ø:
16 mm
Fastening type:
ZEINB
Material thickness:
4 mm
:
15 years
Quantity x hole Ø:
3 x Ø11 mm
Material/surface:
raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210
UNIT:
1
PU:
Piece
Surface / Colour:
FVZ
Material:
Steel
Approval:
Europ.techn.app. ETA-10/0210
:
80 mm
:
104 mm
:
60 mm
Weight per UQ (kg):
0.61 kg
  • Not statically suitable for high wooden and privacy fences.
  • Suitable fasteners can be found in the range “Screws and accessories”.
