• Post support with movable upper part for angular walls, Material: raw steel, Surface: hot-dip galvanised, for screwing on, Clear width: 91 mm, Depth: 60 mm, Plate length: 100 mm, No. of holes: 10, Hole: Ø11 mm
  • Post support with movable upper part for angular walls, Material: raw steel, Surface: hot-dip galvanised, for screwing on, Clear width: 91 mm, Depth: 60 mm, Plate length: 100 mm, No. of holes: 10, Hole: Ø11 mm

Post support with movable upper part for angular walls

Art.-No. 208714

raw steel, hot-dip galvanised, for screwing on

2 Variants

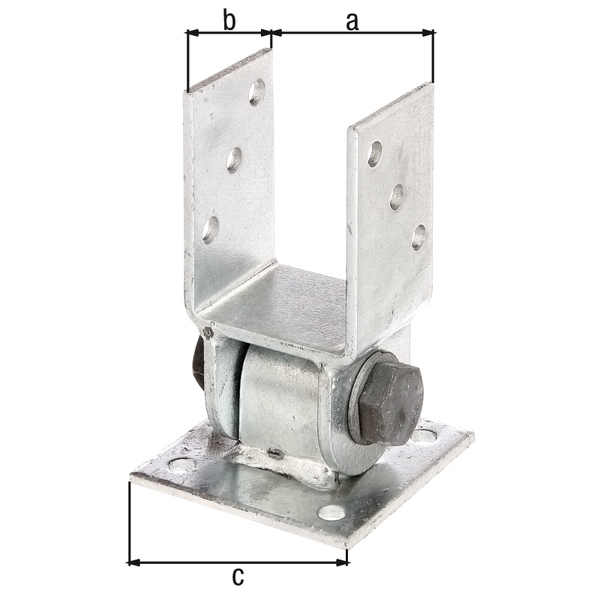

Dimension a:
91
Dimension b:
60
Dimension c:
100
Fastening type:
for screwing on
Quantity x hole Ø:
10 x Ø11
Material/surface:
raw steel, hot-dip galvanised, for screwing on
Surface / Colour:
hot-dip galvanised
Material:
Steel
Width:
91
Depth:
60
Plate length:
100
Weight per UQ (kg):
1.975
Content Unit:
1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No. 208707
Dimension a 71
Dimension b 60
Dimension c 100
Fastening type for screwing on
Article-No. 208714
Dimension a 91
Dimension b 60
Dimension c 100
Fastening type for screwing on
  • Durable due to Galvanising, suitable for wooden constructions and Fencing.
  • Suitable for fence construction (here use of at least 2 posts connected with fence rails), bracing posts or similar applications. Post support can not be fixed in the joint.
  • Suitable fasteners can be found in the range “Screws and accessories”.
