• T post support with flitch plate, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, Flitch plate width: 80 mm, Flitch plate height: 130 mm, Length of concrete anchor: 200 mm, Plate length: 80 mm, Material thickness of flitch plate: 6.00 mm, Plate thickness: 6 mm, Concrete anchor Ø: 16 mm, No. of holes: 8, Hole: Ø11 mm
  • T post support with flitch plate, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, Flitch plate width: 80 mm, Flitch plate height: 130 mm, Length of concrete anchor: 200 mm, Plate length: 80 mm, Material thickness of flitch plate: 6.00 mm, Plate thickness: 6 mm, Concrete anchor Ø: 16 mm, No. of holes: 8, Hole: Ø11 mm

T post support with flitch plate

Art.-No. 215521

raw steel, hot-dip galvanised, for setting in concrete

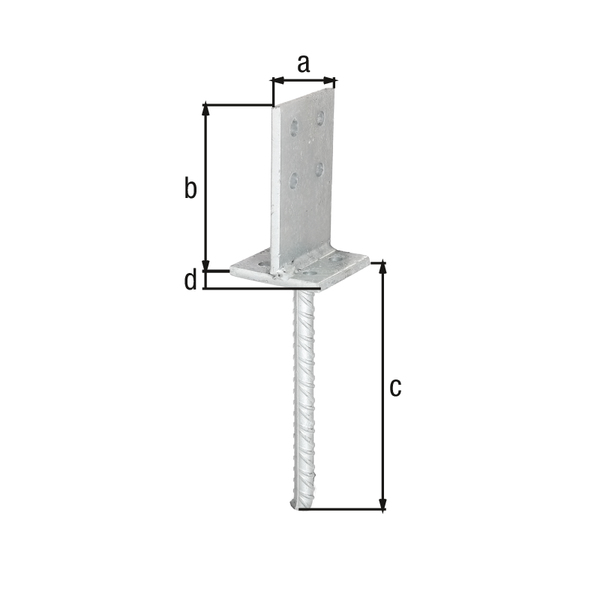

Dimension a:
80
Dimension b:
130
Dimension c:
200
Dimension d:
80
Concrete anchor Ø:
16
Fastening type:
for setting in concrete
Material thickness of flitch plate:
6
Plate thickness:
6
Quantity x hole Ø:
8 x Ø11
Material/surface:
raw steel, hot-dip galvanised, for setting in concrete
Surface / Colour:
hot-dip galvanised
Material:
Steel
Approval:
Europ.techn.app. ETA-10/0210
Width:
80
Height:
130
Plate length:
80
Weight per UQ (kg):
1.350
Content Unit:
1 Piece
  • Long-lasting thanks to hot-dip galvanizing, suitable for wooden structures and Fencing.
  • Not statically suitable for high wooden and privacy fences.
