• U post support for L border blocks, for square timber posts 90 mm, Material: raw steel, Surface: hot-dip galvanised, for screwing on, with CE marking in accordance with ETA-10/0210, Clear width: 91 mm, Height: 230 mm, Total height: 410 mm, Flat iron: 60 x 6 mm, Material thickness: 2.00 mm, No. of holes: 7, Hole: Ø11 mm
  • U post support for L border blocks, for square timber posts 90 mm, Material: raw steel, Surface: hot-dip galvanised, for screwing on, with CE marking in accordance with ETA-10/0210, Clear width: 91 mm, Height: 230 mm, Total height: 410 mm, Flat iron: 60 x 6 mm, Material thickness: 2.00 mm, No. of holes: 7, Hole: Ø11 mm

U post support for L border blocks

for square timber posts 90 mm
Art.-No. 214432

raw steel, hot-dip galvanised, for screwing on, with CE marking in accordance with ETA-10/0210

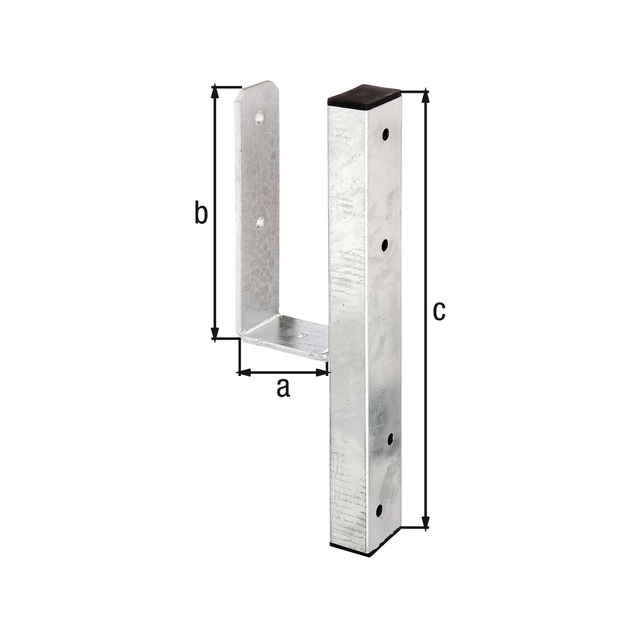

Dimension a:
91 mm
Dimension b:
230 mm
Dimension c:
410 mm
Square tube:
60 x 40 x 2 mm
Flat iron:
60 x 6 mm
Fastening type:
ZAUFSCHR
Material thickness:
2 mm
Quantity x hole Ø:
7 x Ø11 mm
Material/surface:
raw steel, hot-dip galvanised, for screwing on, with CE marking in accordance with ETA-10/0210
UNIT:
1
PU:
Piece
Surface / Colour:
FVZ
Material:
Steel
Approval:
Europ.techn.app. ETA-10/0210
:
91 mm
:
230 mm
:
410 mm
Weight per UQ (kg):
2.200 kg
  • Suitable for timber construction and wooden fences as per the standard value table.
