• U post support with concrete anchor made of riffle steel, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, Clear width: 71 mm, Height: 150 mm, Length of concrete anchor: 200 mm, Depth: 60 mm, Post insertion piece: 100 mm, Concrete anchor Ø: 16 mm, Material thickness: 4.00 mm, No. of holes: 6, Hole: Ø11 mm
  • U post support with concrete anchor made of riffle steel, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, Clear width: 71 mm, Height: 150 mm, Length of concrete anchor: 200 mm, Depth: 60 mm, Post insertion piece: 100 mm, Concrete anchor Ø: 16 mm, Material thickness: 4.00 mm, No. of holes: 6, Hole: Ø11 mm

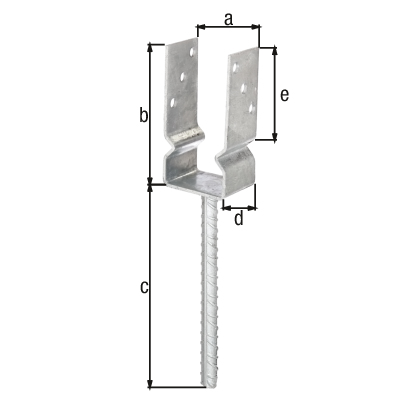

U post support with concrete anchor made of riffle steel

Art.-No. 208509

raw steel, hot-dip galvanised, for setting in concrete

2 Variants

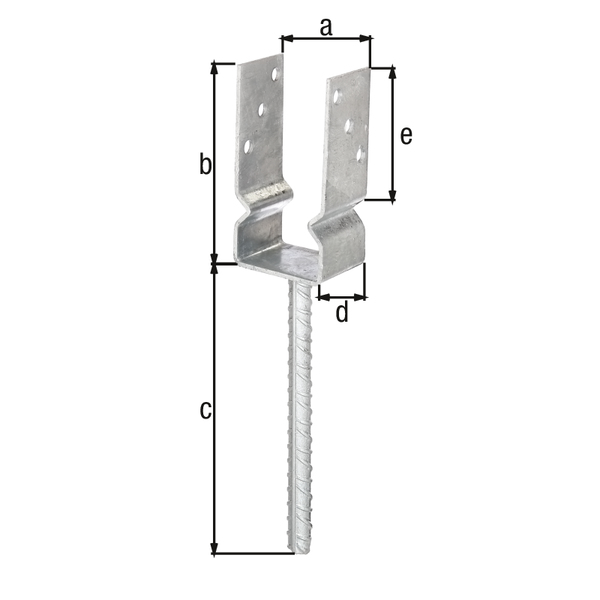

Dimension a:
71 mm
Dimension b:
150 mm
Dimension c:
200 mm
Dimension d:
60 mm
Dimension e:
100 mm
Concrete anchor Ø:
16 mm
Fastening type:
ZEINB
Material thickness:
4 mm
Quantity x hole Ø:
6 x Ø11 mm
Material/surface:
raw steel, hot-dip galvanised, for setting in concrete
UNIT:
1
PU:
Piece
Surface / Colour:
FVZ
Material:
Steel
:
71 mm
:
150 mm
:
60 mm
Weight per UQ (kg):
1.080 kg
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.208509
Dimension a71 mm
Dimension b150 mm
Dimension c200 mm
Dimension d60 mm
Article-No.208523
Dimension a91 mm
Dimension b150 mm
Dimension c200 mm
Dimension d60 mm
  • with post supports on the side for constructive wood protection
  • Not statically suitable for high wooden and privacy fences.
  • Suitable fasteners can be found in the range “Screws and accessories”.
