U post support with concrete anchor made of riffle steel

type: height and width adjustable
Art.-No. 219901

raw steel, galvanised, thick-film passivated, for setting in concrete

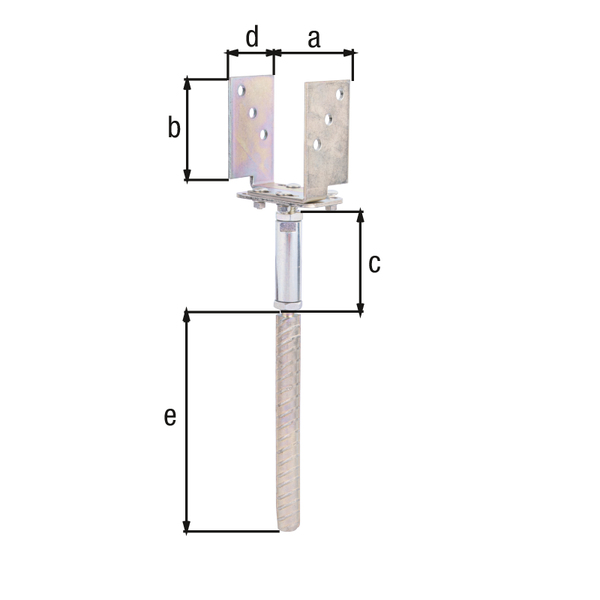

Dimension a:
71 - 161 mm
Dimension b:
110 mm
Dimension c:
125 - 185 mm
Dimension d:
70 mm
Dimension e:
250 mm
Concrete anchor Ø:
24 mm
Fastening type:
ZEINB
Material thickness:
5 mm
Quantity x hole Ø:
6 x Ø11 mm
Material/surface:
raw steel, galvanised, thick-film passivated, for setting in concrete
UNIT:
1
PU:
Piece
Surface / Colour:
VERZ
Material:
Steel
:
110 mm
:
70 mm
:
125 - 185 mm
:
71 - 161 mm
Weight per UQ (kg):
2.450 kg
  • for wooden posts thicknesses from 71 to 161 mm
  • Ground clearance to be adjusted by 60 mm while mounted.
  • Suitable for timber construction and wooden fences as per the standard value table.
  • Suitable fasteners can be found in the range “Screws and accessories”.
