• Double gate Flexo, type 6/5/6, Material: raw steel, Surface: hot-dip galvanised, green powder-coated RAL 6005, for setting in concrete, Nominal width: 3000 mm, Clear width: 3000 mm, Clearance width: 2884 mm, Frame width gate leaf: 1425 mm, Frame width second gate leaf: 1425 mm, Height: 1000 mm, Post length: 1700 mm, Post thickness: 80 x 80 mm, Frame thickness: 40 x 40 mm, Mesh width: 50 x 200 mm, Layout of gate width: divided in the middle, 15-year warranty against rusting through
  • Double gate Flexo, type 6/5/6, Material: raw steel, Surface: hot-dip galvanised, green powder-coated RAL 6005, for setting in concrete, Nominal width: 3000 mm, Clear width: 3000 mm, Clearance width: 2884 mm, Frame width gate leaf: 1425 mm, Frame width second gate leaf: 1425 mm, Height: 1000 mm, Post length: 1700 mm, Post thickness: 80 x 80 mm, Frame thickness: 40 x 40 mm, Mesh width: 50 x 200 mm, Layout of gate width: divided in the middle, 15-year warranty against rusting through

Double gate Flexo, type 6/5/6

Art.-No. 649043

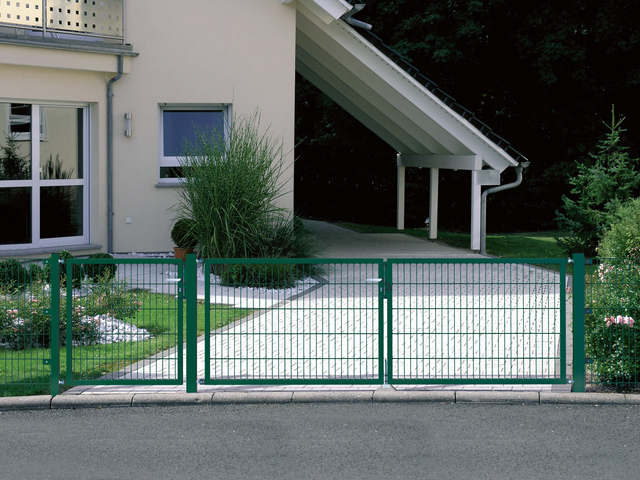

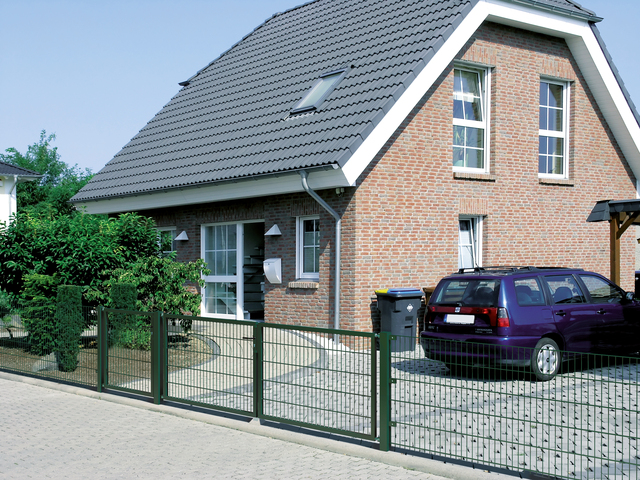

With the Barred double gate, you can provide access to your property, e.g. with a car. The Square tubes used for the frame, the double bar grating panel infill, the sturdy workmanship and the high-quality Surfaces guarantee that you will enjoy the Double gates for a long time.

42 Variants
Layout of gate width:
divided in the middle
Nominal width:
3000 mm
Height:
1000 mm
Clear width:
3000 mm
Frame width gate leaf:
1425 mm
Frame width second gate leaf:
1425 mm
Post length:
1700 mm
Post thickness:
80 x 80 mm
Frame thickness:
40 x 40 mm
Mesh width:
50 x 200 mm
Fastening type:
for setting in concrete
Opening:
90 °
Guarantee articles:
15 years
Material/surface:
raw steel, hot-dip galvanised, green powder-coated RAL 6005, for setting in concrete
Systems:
Flexo & Flexo Plus
Surface / Colour:
green
Material:
Steel
Clearance width:
2884 mm
Weight per UQ (kg):
58.511 kg
Content Unit:
1 Piece
Article-No.
Layout of gate width
Nominal width
Height
Clear width
Action
Article-No. 648053
Layout of gate width divided in the middle
Nominal width 2000 mm
Height 800 mm
Clear width 1970 mm
Article-No. 648060
Layout of gate width divided in the middle
Nominal width 2000 mm
Height 1000 mm
Clear width 1970 mm
Article-No. 648077
Layout of gate width divided in the middle
Nominal width 2000 mm
Height 1200 mm
Clear width 1970 mm
Article-No. 648084
Layout of gate width divided in the middle
Nominal width 2000 mm
Height 1400 mm
Clear width 1970 mm

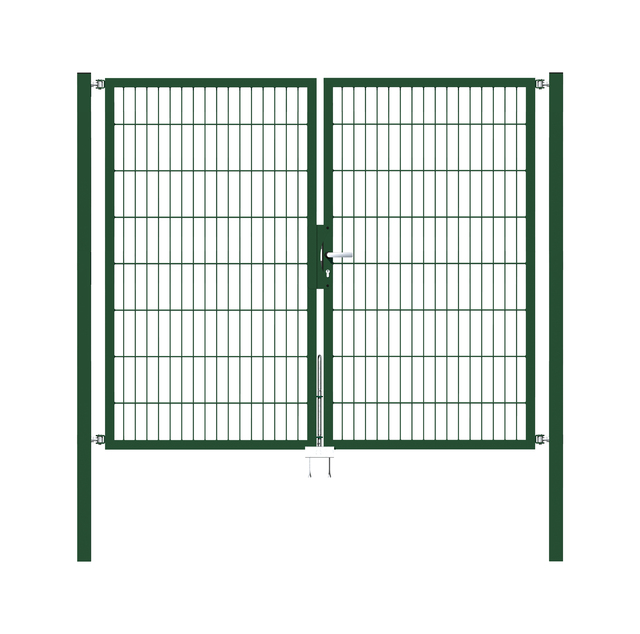

Article-No. 648091
Layout of gate width divided in the middle
Nominal width 2000 mm
Height 1600 mm
Clear width 1970 mm

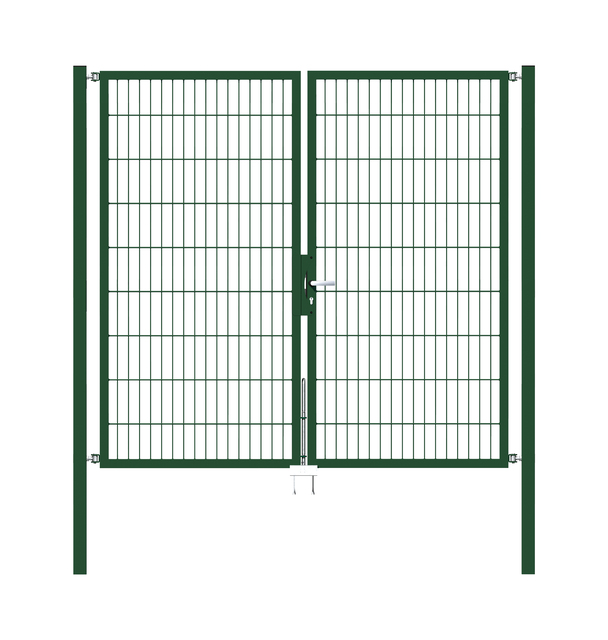

Article-No. 648138
Layout of gate width divided in the middle
Nominal width 2000 mm
Height 1800 mm
Clear width 1970 mm

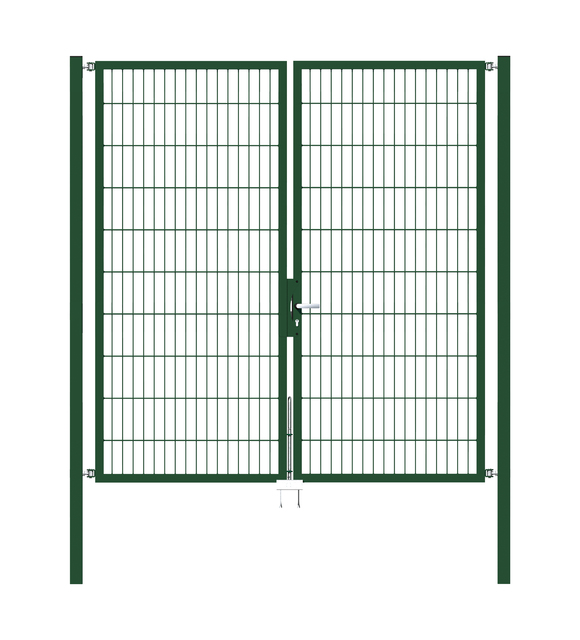

Article-No. 648145
Layout of gate width divided in the middle
Nominal width 2000 mm
Height 2000 mm
Clear width 1970 mm
Article-No. 648152
Layout of gate width divided in the middle
Nominal width 2500 mm
Height 800 mm
Clear width 2500 mm
Article-No. 648169
Layout of gate width divided in the middle
Nominal width 2500 mm
Height 1000 mm
Clear width 2500 mm
Article-No. 648176
Layout of gate width divided in the middle
Nominal width 2500 mm
Height 1200 mm
Clear width 2500 mm
Article-No. 648183
Layout of gate width divided in the middle
Nominal width 2500 mm
Height 1400 mm
Clear width 2500 mm

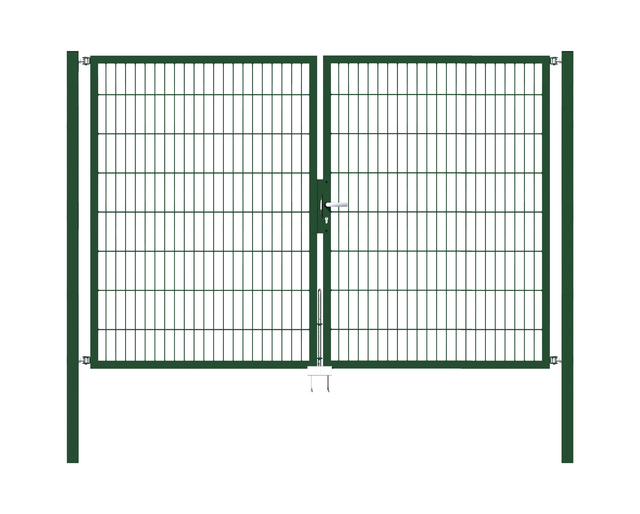

Article-No. 648190
Layout of gate width divided in the middle
Nominal width 2500 mm
Height 1600 mm
Clear width 2500 mm

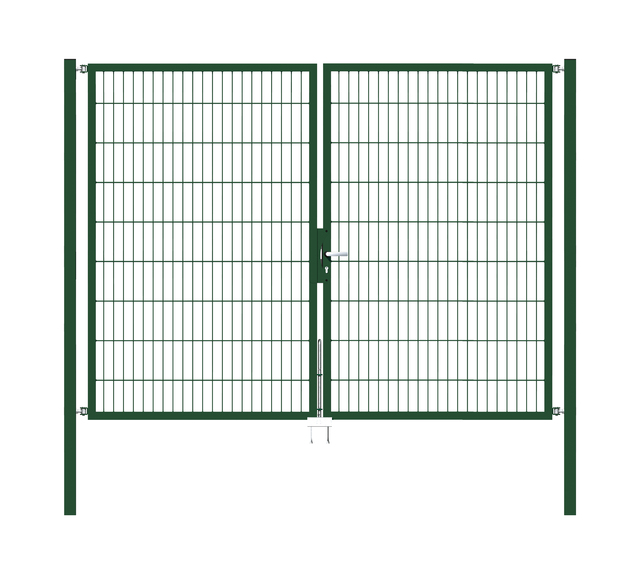

Article-No. 648237
Layout of gate width divided in the middle
Nominal width 2500 mm
Height 1800 mm
Clear width 2500 mm

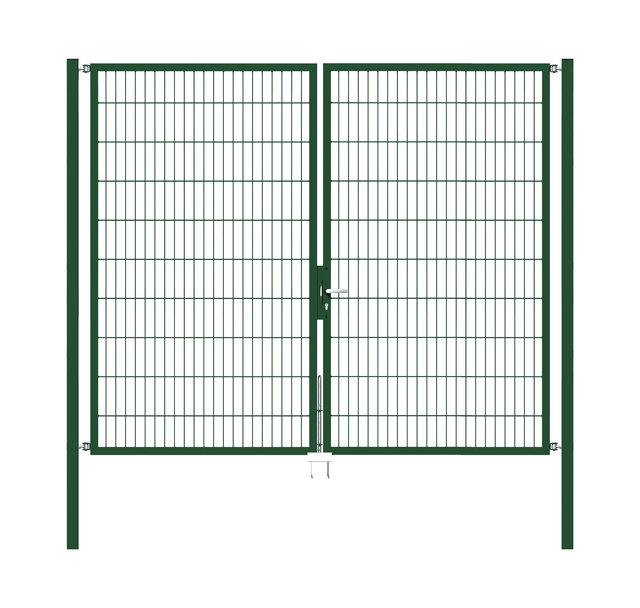

Article-No. 648244
Layout of gate width divided in the middle
Nominal width 2500 mm
Height 2000 mm
Clear width 2500 mm
Article-No. 646592
Layout of gate width unevenly divided
Nominal width 3000 mm
Height 800 mm
Clear width 2985 mm
Article-No. 646615
Layout of gate width unevenly divided
Nominal width 3000 mm
Height 1000 mm
Clear width 2985 mm
Article-No. 646622
Layout of gate width unevenly divided
Nominal width 3000 mm
Height 1200 mm
Clear width 2985 mm
Article-No. 646639
Layout of gate width unevenly divided
Nominal width 3000 mm
Height 1400 mm
Clear width 2985 mm

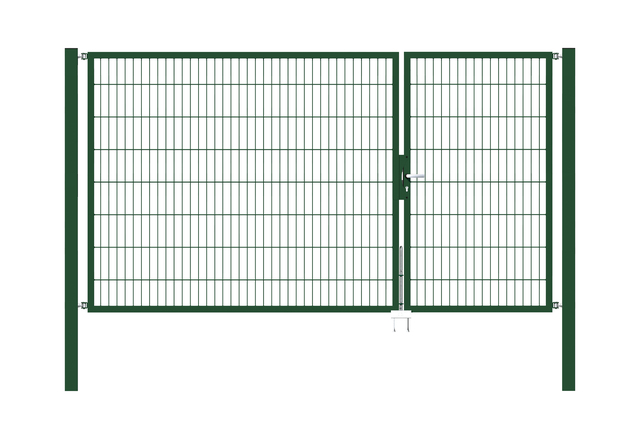

Article-No. 646646
Layout of gate width unevenly divided
Nominal width 3000 mm
Height 1600 mm
Clear width 2985 mm

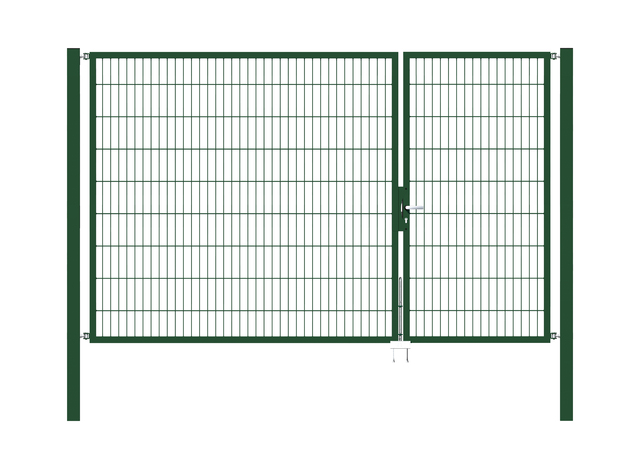

Article-No. 646660
Layout of gate width unevenly divided
Nominal width 3000 mm
Height 1800 mm
Clear width 2985 mm

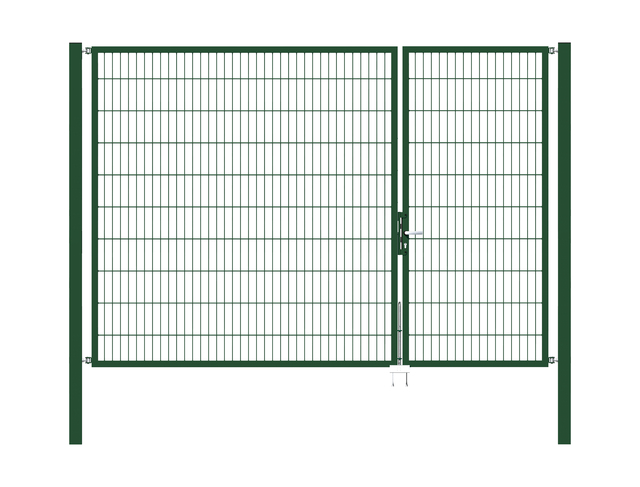

Article-No. 646899
Layout of gate width unevenly divided
Nominal width 3000 mm
Height 2000 mm
Clear width 2985 mm
Article-No. 649036
Layout of gate width divided in the middle
Nominal width 3000 mm
Height 800 mm
Clear width 3000 mm
Article-No. 649043
Layout of gate width divided in the middle
Nominal width 3000 mm
Height 1000 mm
Clear width 3000 mm
Article-No. 649050
Layout of gate width divided in the middle
Nominal width 3000 mm
Height 1200 mm
Clear width 3000 mm
Article-No. 649067
Layout of gate width divided in the middle
Nominal width 3000 mm
Height 1400 mm
Clear width 3000 mm

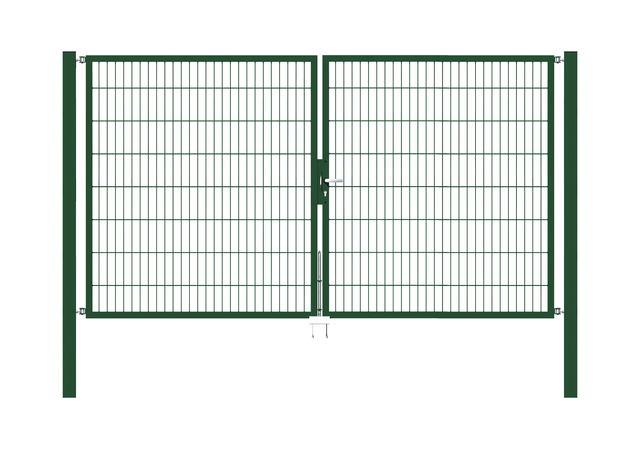

Article-No. 649074
Layout of gate width divided in the middle
Nominal width 3000 mm
Height 1600 mm
Clear width 3000 mm

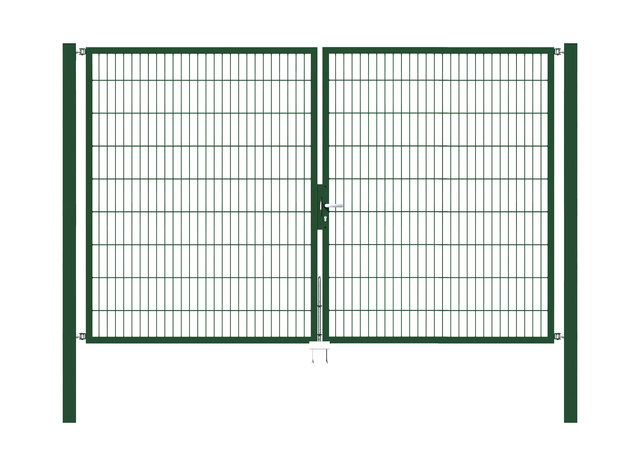

Article-No. 649081
Layout of gate width divided in the middle
Nominal width 3000 mm
Height 1800 mm
Clear width 3000 mm

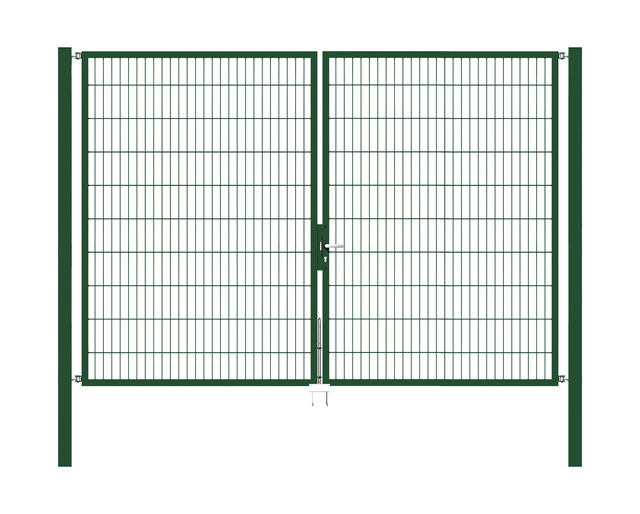

Article-No. 649098
Layout of gate width divided in the middle
Nominal width 3000 mm
Height 2000 mm
Clear width 3000 mm
Article-No. 648251
Layout of gate width unevenly divided
Nominal width 3500 mm
Height 800 mm
Clear width 3500 mm
Article-No. 648268
Layout of gate width unevenly divided
Nominal width 3500 mm
Height 1000 mm
Clear width 3500 mm
Article-No. 648275
Layout of gate width unevenly divided
Nominal width 3500 mm
Height 1200 mm
Clear width 3500 mm
Article-No. 648282
Layout of gate width unevenly divided
Nominal width 3500 mm
Height 1400 mm
Clear width 3500 mm
Article-No. 648299
Layout of gate width unevenly divided
Nominal width 3500 mm
Height 1600 mm
Clear width 3500 mm
Article-No. 648336
Layout of gate width unevenly divided
Nominal width 3500 mm
Height 1800 mm
Clear width 3500 mm
Article-No. 648343
Layout of gate width unevenly divided
Nominal width 3500 mm
Height 2000 mm
Clear width 3500 mm
Article-No. 649104
Layout of gate width divided in the middle
Nominal width 4000 mm
Height 800 mm
Clear width 4000 mm
Article-No. 649111
Layout of gate width divided in the middle
Nominal width 4000 mm
Height 1000 mm
Clear width 4000 mm
Article-No. 649128
Layout of gate width divided in the middle
Nominal width 4000 mm
Height 1200 mm
Clear width 4000 mm
Article-No. 649135
Layout of gate width divided in the middle
Nominal width 4000 mm
Height 1400 mm
Clear width 4000 mm

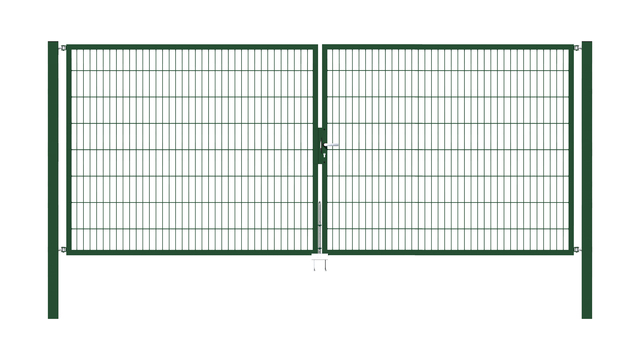

Article-No. 649142
Layout of gate width divided in the middle
Nominal width 4000 mm
Height 1600 mm
Clear width 4000 mm

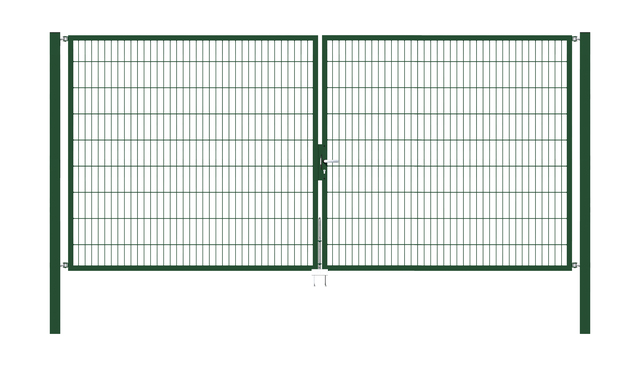

Article-No. 649159
Layout of gate width divided in the middle
Nominal width 4000 mm
Height 1800 mm
Clear width 4000 mm

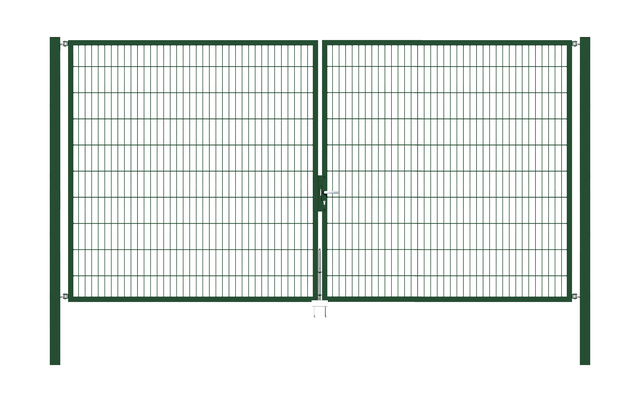

Article-No. 649166
Layout of gate width divided in the middle
Nominal width 4000 mm
Height 2000 mm
Clear width 4000 mm
  • for the apportionment of width between the gate leaf and the second gate leaf, please see the dimension specification
  • Elements from a vertical and two horizontal welded steel wires.
  • The specified height matches the frame dimension.
  • Two combination leaves are included in the delivery that can be converted on site to a hook post or gate leaf respectively. The division of the leaf heights at unequal sized gates can therefore be replaced on the spot. In addition, two combination posts are included that can be converted on site to two hook posts.
  • You can find a suitable setup video at www.youtube.com/@alberts1852
  • The following components are included in delivery: Two combination wings, two combination posts, an accessory bag for double gates, a gate stop. Each component is packed separately.
  • The delivery consists of one PC-punched tube frame lock, applicable DIN left and right, suspension M16, aluminium door handle, stop, drop bolt, support, post, and fixing plates for double bar grating panels included.
  • Custom production
  • The max. leaf widths is 2500 mm.
  • Plastic coatings in all RAL colours
