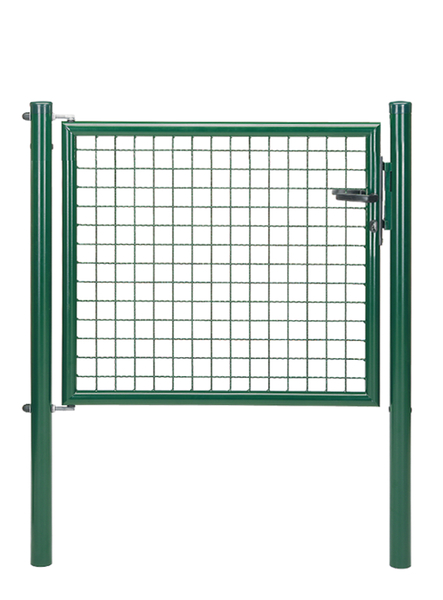

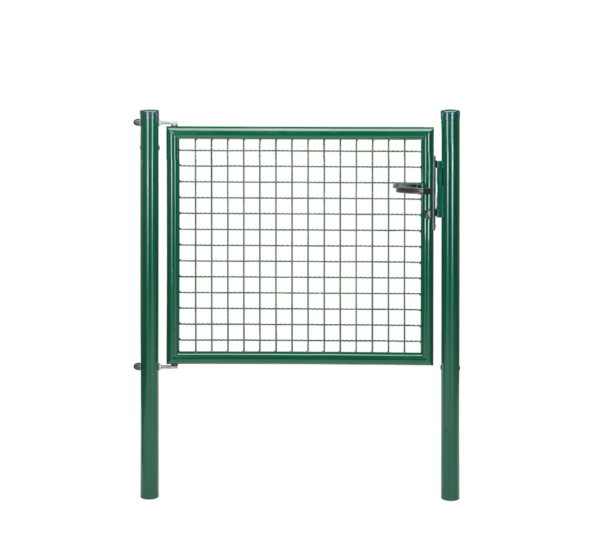

Welded mesh single gate
Art.-No. 600037
- Nominal width:
- 1000 mm
- Height:
- 750 mm
- Clear width:
- 940 mm
- Width from middle to middle of post:
- 1000 mm
- Frame width:
- 880 mm
- Post length:
- 1250 mm
- Post dia.:
- 60 mm
- Frame thickness Ø:
- 42 mm
- Filler material:
- 50 x 50 x 4 mm
- Fastening type:
- ZEINB
- Opening:
- 90 °
- :
- 10 years
- Material/surface:
- raw steel, zinc phosphate plated, green powder-coated RAL 6005, for setting in concrete
- UNIT:
- 1
- PU:
- Piece
- Systems:
- Fix-Clip Pro®,WGTO
- Surface / Colour:
- GRUEN
- Weight per UQ (kg):
- 15.300 kg
Article-No.
Nominal width
Height
Clear width
Width from middle to middle of post
Action
Article-No.600037
Nominal width1000 mm
Height750 mm
Clear width940 mm
Width from middle to middle of post1000 mm

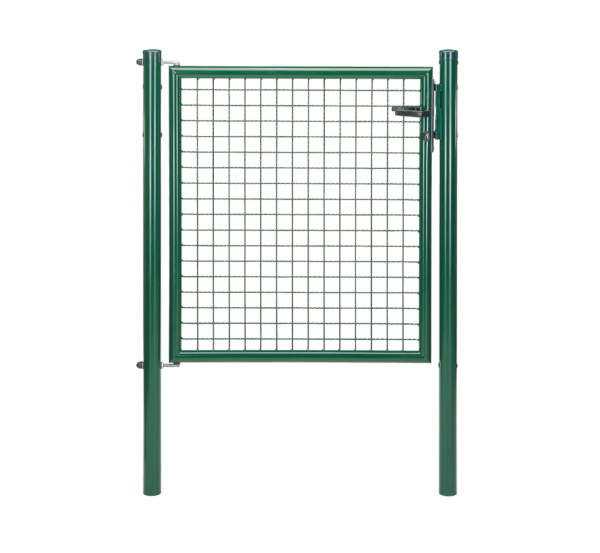

Article-No.600136
Nominal width1000 mm
Height1000 mm
Clear width940 mm
Width from middle to middle of post1000 mm
Article-No.600204
Nominal width1000 mm
Height1250 mm
Clear width940 mm
Width from middle to middle of post1000 mm
Article-No.600303
Nominal width1000 mm
Height1500 mm
Clear width940 mm
Width from middle to middle of post1000 mm
Article-No.600358
Nominal width1000 mm
Height1750 mm
Clear width960 mm
Width from middle to middle of post1020 mm
Article-No.600402
Nominal width1000 mm
Height2000 mm
Clear width960 mm
Width from middle to middle of post1020 mm
Article-No.650216
Nominal width1250 mm
Height1000 mm
Clear width1190 mm
Width from middle to middle of post1250 mm
Article-No.650223
Nominal width1250 mm
Height1250 mm
Clear width1190 mm
Width from middle to middle of post1250 mm
Article-No.650230
Nominal width1250 mm
Height1500 mm
Clear width1190 mm
Width from middle to middle of post1250 mm
Article-No.650247
Nominal width1250 mm
Height1750 mm
Clear width1210 mm
Width from middle to middle of post1270 mm
Article-No.650254
Nominal width1250 mm
Height2000 mm
Clear width1210 mm
Width from middle to middle of post1270 mm
Article-No.601065
Nominal width1500 mm
Height1250 mm
Clear width1440 mm
Width from middle to middle of post1500 mm
- The specified height matches the frame dimension.
- For gates with heights above 1,500 mm, the gate hinges are welded on, which increases the width.
- A replaceable, galvanised tube frame lock (applicable DIN left and right) with profile cylinder and two keys, door handle, stop, and adjustable hook included.
- Hook and stop post included.
- Custom production
