• Fence bracket, flat-leaf screw shape, Material: raw steel, Surface: galvanised, thick-film passivated, for screwing in, Total length: 77 mm, Thread length: 35 mm, Sheet width: 11.5 mm, Sheet length: 34 mm, Distance from middle to middle of hole: 15 mm, Material thickness: 3.00 mm, Thread-Ø: 7 mm, No. of holes: 2, Hole: Ø4.5 mm
  • Fence bracket, flat-leaf screw shape, Material: raw steel, Surface: galvanised, thick-film passivated, for screwing in, Total length: 77 mm, Thread length: 35 mm, Sheet width: 11.5 mm, Sheet length: 34 mm, Distance from middle to middle of hole: 15 mm, Material thickness: 3.00 mm, Thread-Ø: 7 mm, No. of holes: 2, Hole: Ø4.5 mm

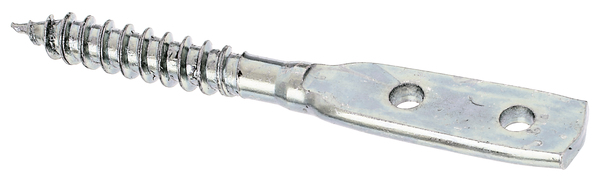

Fence bracket, flat-leaf screw shape

Art.-No. 213473

raw steel, galvanised, thick-film passivated, for screwing in

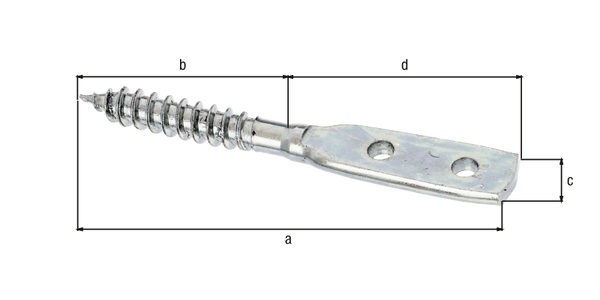

Dimension a:
77
Dimension b:
35
Dimension c:
11.5
Dimension d:
34
Thread-Ø:
7
Distance from middle to middle of hole:
15
Fastening type:
for screwing in
Material thickness:
3
Quantity x hole Ø:
2 x Ø4.5
Material/surface:
raw steel, galvanised, thick-film passivated, for screwing in
Surface / Colour:
Thick film protection
Material:
Steel
Thread length:
35
Width:
11,5
Total length:
77
Weight per UQ (kg):
0.023
Content Unit:
25 Piece
  • Durable due to Thick film protection, Suitable for assembly of wood or metal trellises on walls.
  • Holes with Ø 6 mm must be predrilled in the timber post before the fence bracket can be installed.
