• Deadbolt lock especially for frame gates, Heavy, stable design for use outdoors., All inner parts are galvanised to protect against rust., with countersunk screw holes, Material: raw steel, Surface: galvanised, with key, Height lock case: 167 mm, Depth lock case: 85 mm, Size back set: 55 mm, Distance: 72 mm, Strike plate width: 24 mm, Strike plate height: 235 mm, Item description: BB perforation, without Locking plate, without change, Bolt recess: 13 / 25 mm, Socket: 8 x 8 mm
  • Deadbolt lock especially for frame gates, Heavy, stable design for use outdoors., All inner parts are galvanised to protect against rust., with countersunk screw holes, Material: raw steel, Surface: galvanised, with key, Height lock case: 167 mm, Depth lock case: 85 mm, Size back set: 55 mm, Distance: 72 mm, Strike plate width: 24 mm, Strike plate height: 235 mm, Item description: BB perforation, without Locking plate, without change, Bolt recess: 13 / 25 mm, Socket: 8 x 8 mm

Deadbolt lock especially for frame gates

with countersunk screw holes
Art.-No. 215200

raw steel, galvanised, with key

Item description:
BB perforation, without Locking plate, without change

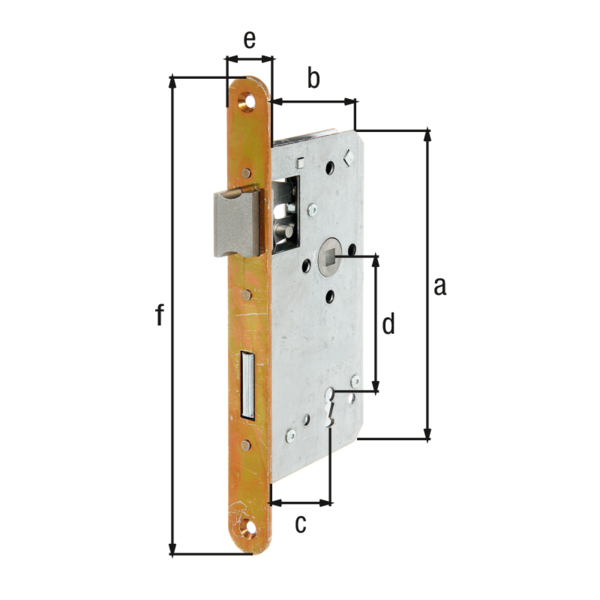

Dimension a:
167
Dimension b:
85
Dimension c:
55
Dimension d:
72
Dimension e:
24
Dimension f:
235
Bolt recess:
13 / 25
Socket:
8 x 8
Fastening type:
for screwing on
Material/surface:
raw steel, galvanised, with key
Systems:
Gate trap and Gate fasteners,Castle
Surface / Colour:
galvanised
Material:
Steel
Height:
167
Weight per UQ (kg):
0.75
Content Unit:
1 Piece
Size back set:
55
Distance:
72
  • perforation for warded lock
  • without locking plate
  • applicable DIN left and right
  • without switch-over
  • 2-level
  • foldable latch
  • rounded strike plate
