• Door and gate bolt, Material: raw steel, Surface: blue galvanised, Contents per PU: 1 Piece, Height: 100 mm, Length: 242 mm, Type: self-closing, No. of holes: 4 / 2, Hole: Ø5.5 / Ø5 mm, Retail packaged
  • Door and gate bolt, Material: raw steel, Surface: blue galvanised, Contents per PU: 1 Piece, Height: 100 mm, Length: 242 mm, Type: self-closing, No. of holes: 4 / 2, Hole: Ø5.5 / Ø5 mm, Retail packaged

Door and gate bolt

Art.-No. 417758

raw steel, blue galvanised

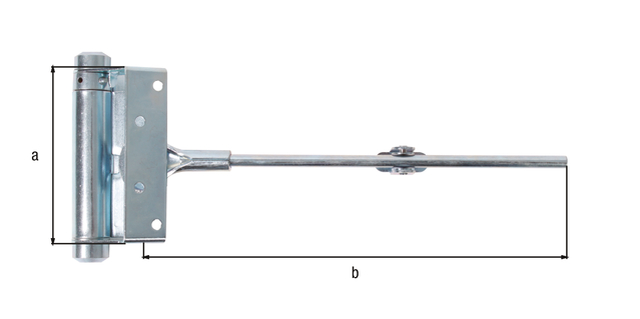

Dimension a:
100
Dimension b:
242
Max. gate weight:
40
Fastening type:
for screwing on
Quantity x hole Ø:
4 x Ø5.5
Quantity x hole Ø:
2 x Ø5
Material/surface:
raw steel, blue galvanised
Systems:
Gate trap and Gate fasteners
Surface / Colour:
galvanised
Material:
Steel
Length:
242
Height:
100
Type:
self-closing
Weight per UQ (kg):
0.525
Content per PU:
1 Piece / Card
Content Unit:
3 Card
  • with adjustable spring force

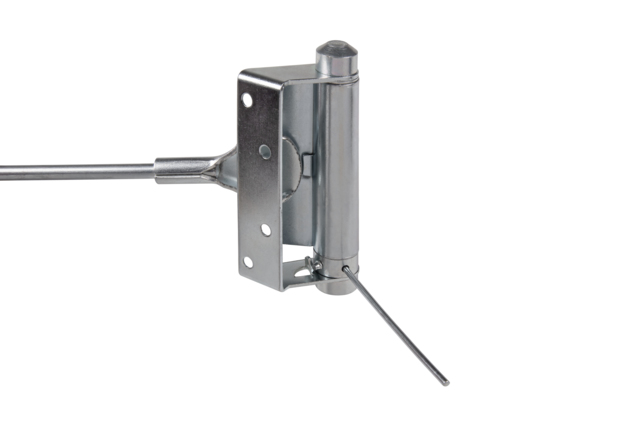

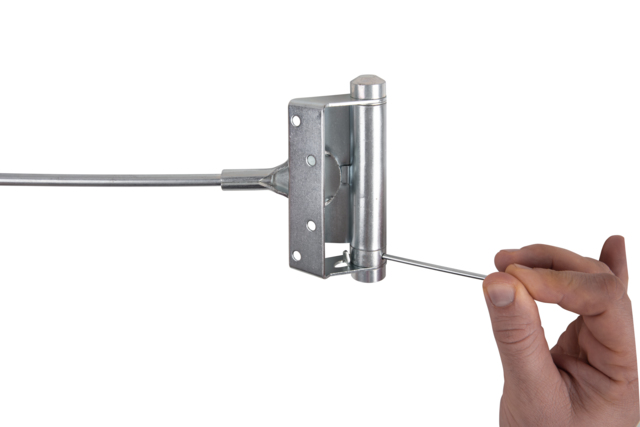

  • with adjusting pin and adjusting rivet
  • with guide roller
  • Galvanising offers excellent protection against corrosion and ensures a long service life.
