• Double gate fastening latch especially for frame gates, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, Total length: 380 mm, Plate height: 80 mm, Plate length: 250 mm, No. of holes: 4 / 6, Hole: Ø5.5 / Ø6 mm
  • Double gate fastening latch especially for frame gates, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, Total length: 380 mm, Plate height: 80 mm, Plate length: 250 mm, No. of holes: 4 / 6, Hole: Ø5.5 / Ø6 mm

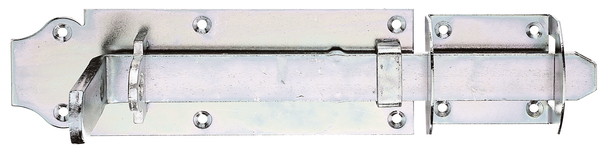

Double gate fastening latch especially for frame gates

with countersunk screw holes
Art.-No. 210656

raw steel, galvanised, thick-film passivated

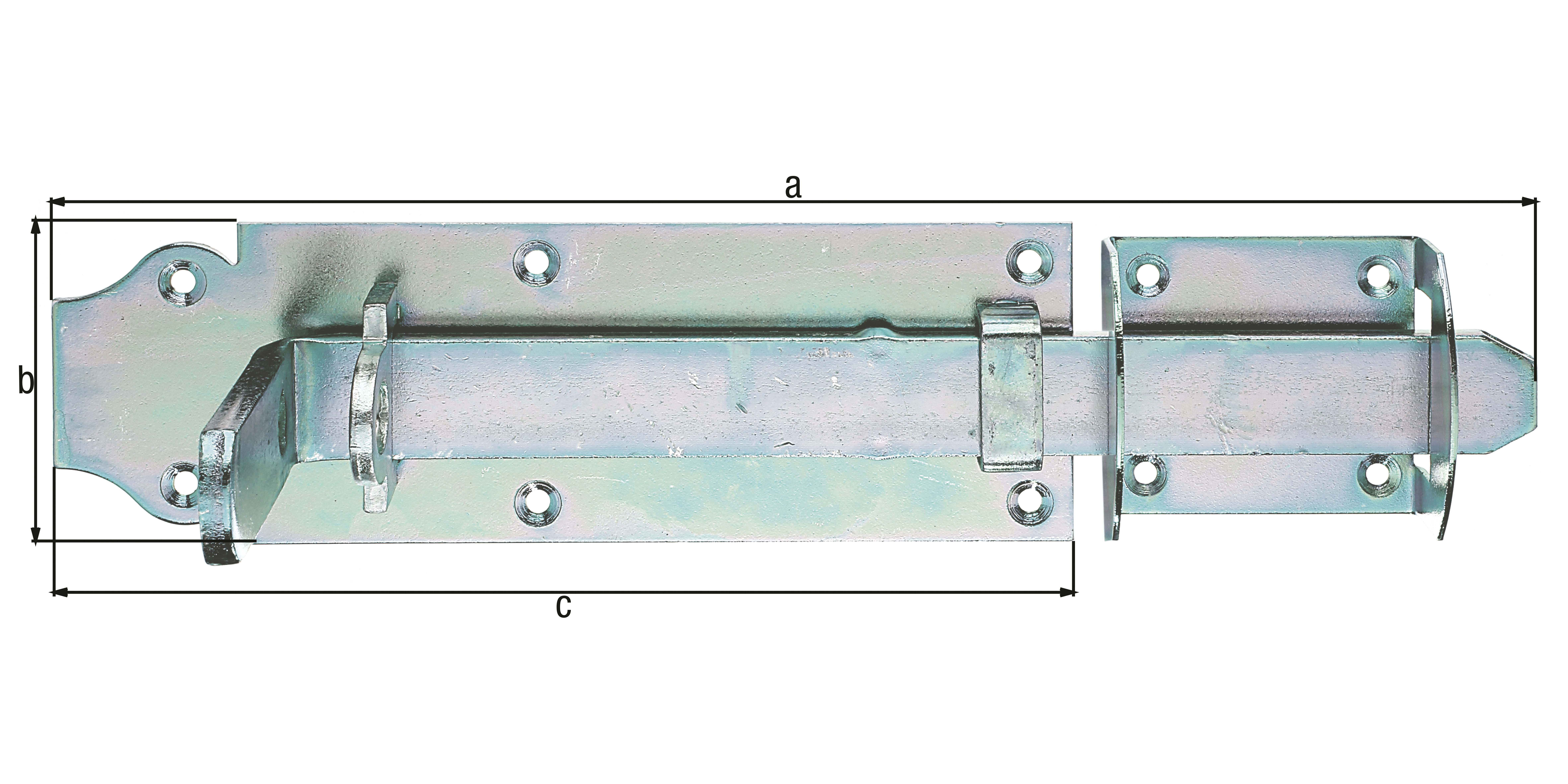

Dimension a:
380
Dimension b:
80
Dimension c:
250
Fastening type:
for screwing on
Quantity x hole Ø:
4 x Ø5.5
Quantity x hole Ø:
6 x Ø6
Material/surface:
raw steel, galvanised, thick-film passivated
Systems:
Gate trap and Gate fasteners
Surface / Colour:
Thick film protection
Material:
Steel
Total length:
380
Plate length:
250
Weight per UQ (kg):
1.4
Content Unit:
5 Piece
  • applicable DIN left and right
  • padlock compatible
  • Padlocks not included.
