• Garden gate fastening latch for high gates or woven fence doors, with countersunk screw holes, with door latch, Material: raw steel, Surface: galvanised, thick-film passivated, Length: 155 mm, Rosette dia.: 60 mm, Plate height: 70 mm, Height of hook: 60 mm, Pin length: 77 mm, No. of holes: 3 / 2 / 6, Hole: Ø5.2 / Ø5.5 / Ø4.5 mm
  • Garden gate fastening latch for high gates or woven fence doors, with countersunk screw holes, with door latch, Material: raw steel, Surface: galvanised, thick-film passivated, Length: 155 mm, Rosette dia.: 60 mm, Plate height: 70 mm, Height of hook: 60 mm, Pin length: 77 mm, No. of holes: 3 / 2 / 6, Hole: Ø5.2 / Ø5.5 / Ø4.5 mm

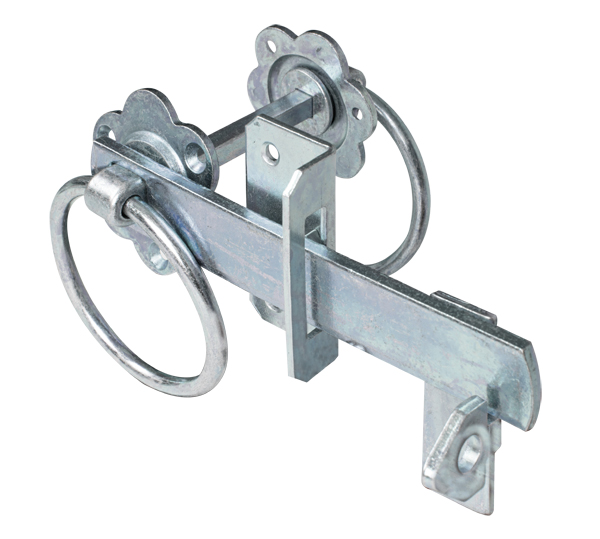

Garden gate fastening latch for high gates or woven fence doors

with door latch
Art.-No. 210250

raw steel, galvanised, thick-film passivated

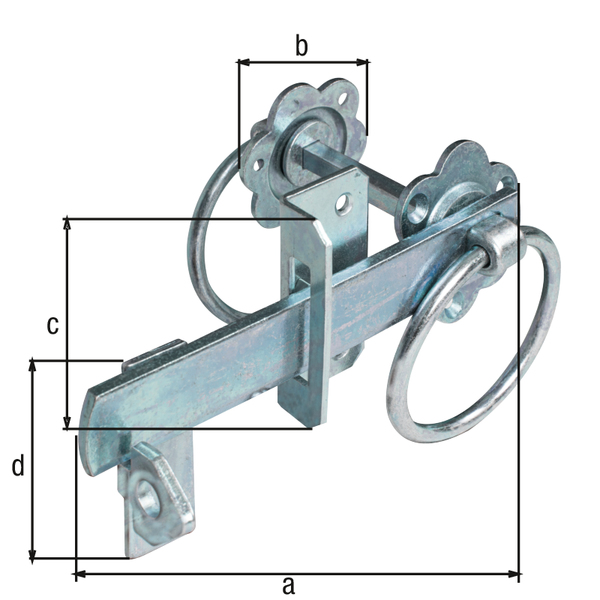

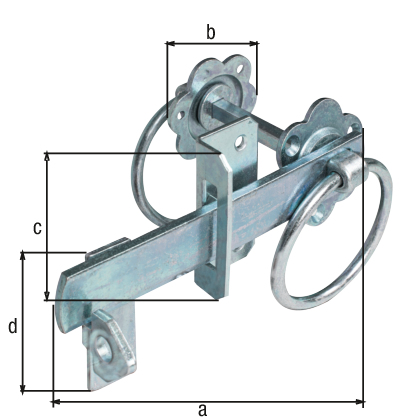

Dimension a:
155
Dimension b-Ø:
60
Dimension c:
70
Dimension d:
60
Pin length:
77
Fastening type:
for screwing on
Quantity x hole Ø:
3 x Ø5.2
Quantity x hole Ø:
2 x Ø5.5
Quantity x hole Ø:
6 x Ø4.5
Material/surface:
raw steel, galvanised, thick-film passivated
Systems:
Gate trap and Gate fasteners
Surface / Colour:
Thick film protection
Material:
Steel
Length:
155
Weight per UQ (kg):
0.555
Content Unit:
1 Piece
  • can be opened and closed from inside and outside
  • Both rotating actuation rings are positioned in rosettes and are connected to each other via a square pin for wood thicknesses of up to 60 mm. The bolt is guided on one side through a guide plate, which is screwed to the gate frame and locked in the hook supplied.
