• Sash lock box, Material: raw steel, Surface: blue galvanised, Contents per PU: 1 Piece, Height: 105 mm, Width: 100 mm, Size back set: 60 mm, Distance: 51 mm, Depth: 22 mm, Item description: With night lock, perforation for warded lock, No. of holes: 4 / 4 / 6, Hole: Ø5.5 / Ø4.2 / Ø4.5 mm, Retail packaged
  • Sash lock box, Material: raw steel, Surface: blue galvanised, Contents per PU: 1 Piece, Height: 105 mm, Width: 100 mm, Size back set: 60 mm, Distance: 51 mm, Depth: 22 mm, Item description: With night lock, perforation for warded lock, No. of holes: 4 / 4 / 6, Hole: Ø5.5 / Ø4.2 / Ø4.5 mm, Retail packaged

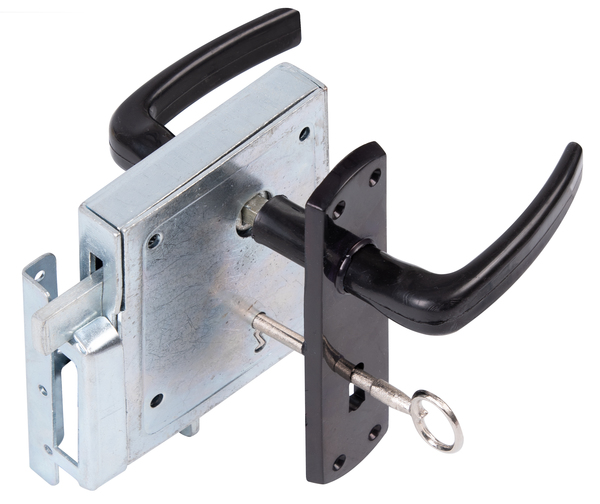

Sash lock box

Art.-No. 901554

raw steel, blue galvanised

Item description:
With night lock, perforation for warded lock

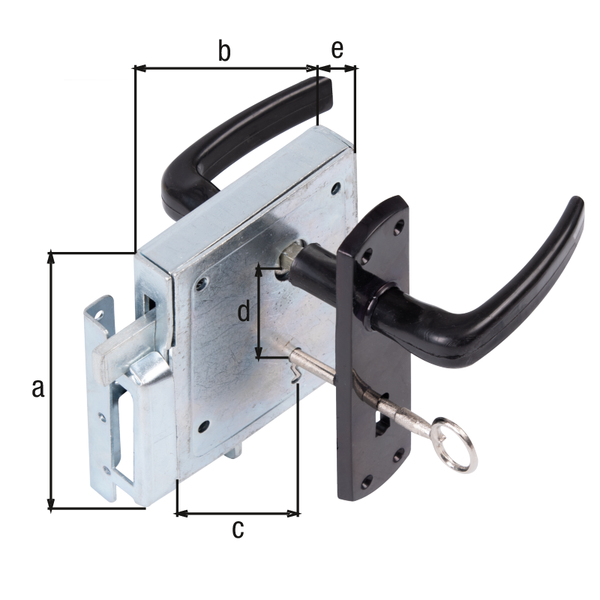

Dimension a:
105
Dimension b:
100
Dimension c:
60
Dimension d:
51
Dimension e:
22
Bolt recess:
12 / 24
Socket:
8 x 8
Fastening type:
for screwing on
Material/surface:
raw steel, blue galvanised
Systems:
Castle
Surface / Colour:
galvanised
Material:
Steel
Width:
100
Height:
105
Depth:
22
Weight per UQ (kg):
0.78
Content per PU:
1 Piece / Card
Content Unit:
5 Card
Size back set:
60
Distance:
51
  • suitable for key nos. 216924, 216931, 216948, 216979, 216993, 216986
  • perforation for warded lock
  • with lifting latch
  • applicable DIN left and right
  • 2-level
  • Galvanising surface provides reliable protection against rust and wear.
  • Stop, handle, narrow lock case, long plate and two keys included.
