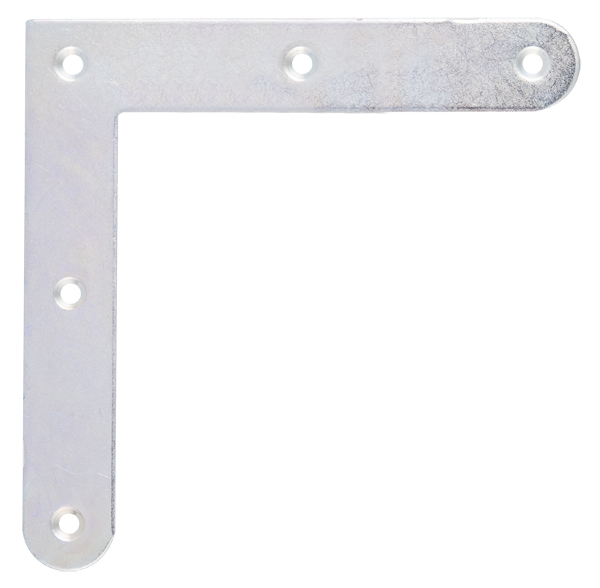

Flat angle bracket, rounded ends
with countersunk screw holes
Art.-No. 339739
raw steel, galvanised, thick-film passivated

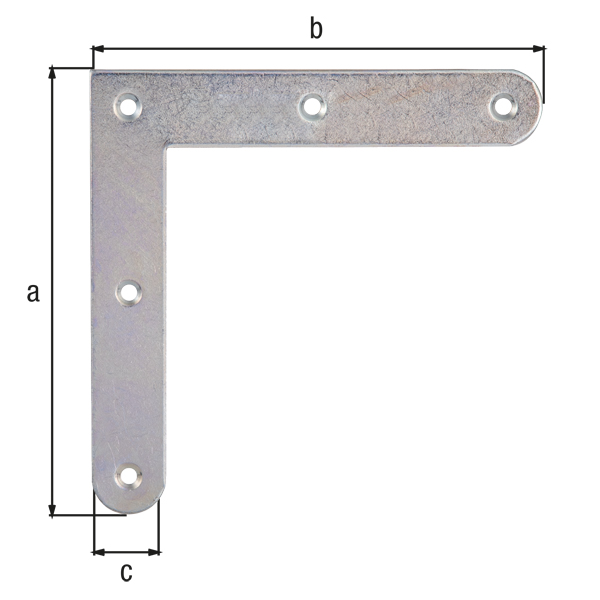

- Dimension a:
- 120 mm
- Dimension b:
- 120 mm
- Dimension c:
- 20 mm
- Fastening type:
- ZAUFSCHR
- Material thickness:
- 2 mm
- Quantity x hole Ø:
- 5 x Ø4 mm
- Material/surface:
- raw steel, galvanised, thick-film passivated
- UNIT:
- 20
- PU:
- Piece
- Surface / Colour:
- VERZ
- Material:
- Steel
- :
- 120 mm
- :
- 20 mm
- :
- 120 mm
- Weight per UQ (kg):
- 0.06 kg
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No.339739
Dimension a120 mm
Dimension b120 mm
Dimension c20 mm
Fastening typeZAUFSCHR

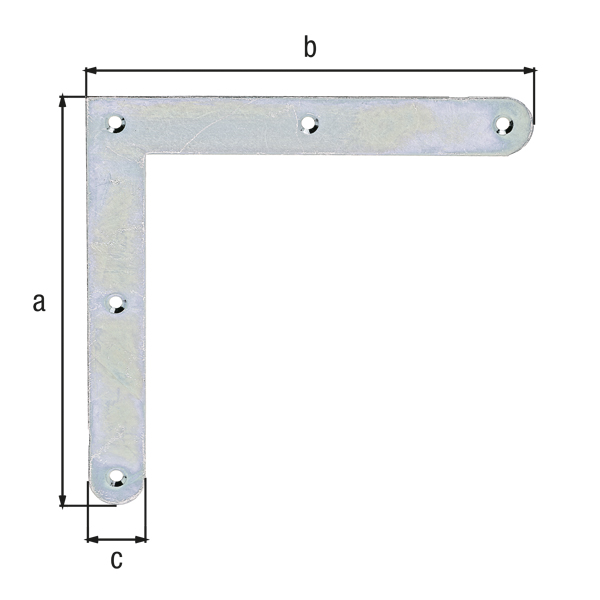

Article-No.339746
Dimension a150 mm
Dimension b150 mm
Dimension c20 mm
Fastening typeZAUFSCHR
