• Joist hanger angle bracket, unequal sided, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, Depth: 40 mm, Height: 80 mm, Width: 30 mm, Material thickness: 2.00 mm, No. of holes: 5, Hole: Ø4.5 mm, CutCase
  • Joist hanger angle bracket, unequal sided, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, Depth: 40 mm, Height: 80 mm, Width: 30 mm, Material thickness: 2.00 mm, No. of holes: 5, Hole: Ø4.5 mm, CutCase

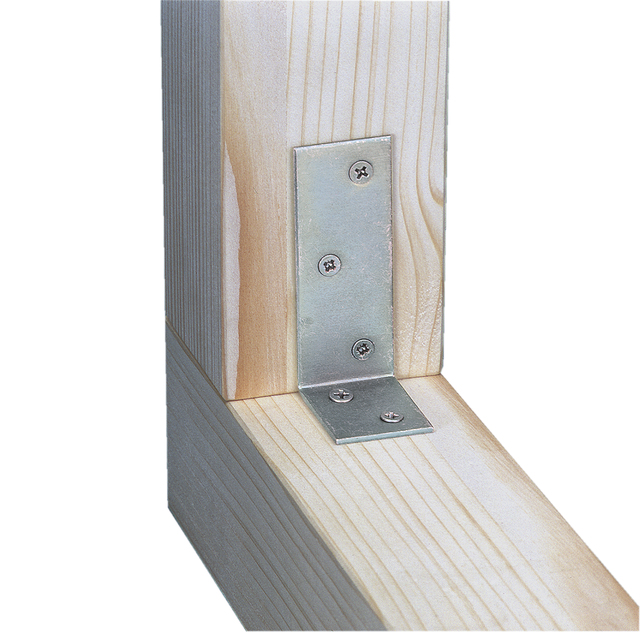

Joist hanger angle bracket, unequal sided

with countersunk screw holes
Art.-No. 332839
9 Variants

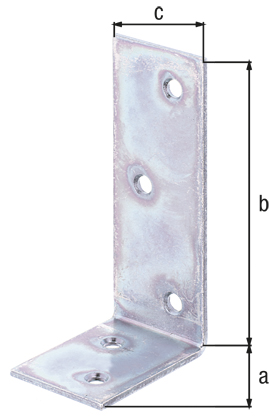

Dimension a:
40 mm
Dimension b:
80 mm
Dimension c:
30 mm
Fastening type:
ZAUFSCHR
Material thickness:
2 mm
Quantity x hole Ø:
5 x Ø4.5 mm
Material/surface:
raw steel, galvanised, thick-film passivated
UNIT:
20
PU:
Piece
Surface / Colour:
VERZ
Material:
Steel
:
30 mm
:
80 mm
:
40 mm
Weight per UQ (kg):
0.051 kg
