• Barrel bolt with knob handle, with countersunk screw holes, without spring, Material: raw steel, Surface: galvanised, thick-film passivated, with attached staple, Plate length: 75 mm, Plate width: 28 mm, Bolt-Ø: 7 mm, Loop width: 22 mm, Loop length: 28 mm, No. of holes: 6, Hole: Ø4.3 mm
  • Barrel bolt with knob handle, with countersunk screw holes, without spring, Material: raw steel, Surface: galvanised, thick-film passivated, with attached staple, Plate length: 75 mm, Plate width: 28 mm, Bolt-Ø: 7 mm, Loop width: 22 mm, Loop length: 28 mm, No. of holes: 6, Hole: Ø4.3 mm

Barrel bolt with knob handle

without spring
Art.-No. 124076

raw steel, galvanised, thick-film passivated, with attached staple

2 Variants

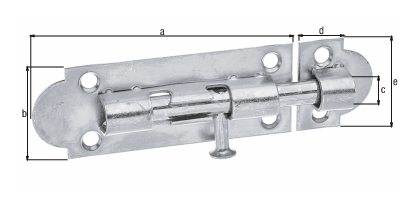

Dimension a:
75 mm
Dimension b:
28 mm
Dimension c-Ø:
7 mm
Dimension d:
22 mm
Dimension e:
28 mm
Extension length:
19 mm
Quantity x hole Ø:
6 x Ø4.3 mm
Material/surface:
raw steel, galvanised, thick-film passivated, with attached staple
Systems:
Bolts
Surface / Colour:
Thick film protection
Material:
Steel
Plate width:
28 mm
Plate length:
75 mm
Bolt Ø:
7 mm
Weight per UQ (kg):
0.052 kg
Content Unit:
12 Piece
Article-No.
Dimension a
Dimension b
Dimension c-Ø
Dimension d
Action
Article-No. 124076
Dimension a 75 mm
Dimension b 28 mm
Dimension c-Ø 7 mm
Dimension d 22 mm
Article-No. 124083
Dimension a 100 mm
Dimension b 30 mm
Dimension c-Ø 8 mm
Dimension d 27 mm
  • with pre-punched, bendable staple
  • When closed, the locked head prevents undesirable loosening due to vibration.
  • Durable thanks to Thick film protection, ideal protection against unintentional opening.
