• Security barn padlock bolt, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, with attached staple, Plate length: 200 mm, Plate width: 70 mm, Bolt-Ø: 15 mm, Loop width: 20 mm, Loop length: 57 mm, Total length: 250 mm, No. of holes: 6 / 2, Hole: Ø5.5 / Ø5 mm
  • Security barn padlock bolt, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, with attached staple, Plate length: 200 mm, Plate width: 70 mm, Bolt-Ø: 15 mm, Loop width: 20 mm, Loop length: 57 mm, Total length: 250 mm, No. of holes: 6 / 2, Hole: Ø5.5 / Ø5 mm

Security barn padlock bolt

with countersunk screw holes
Art.-No. 124182

raw steel, galvanised, thick-film passivated, with attached staple

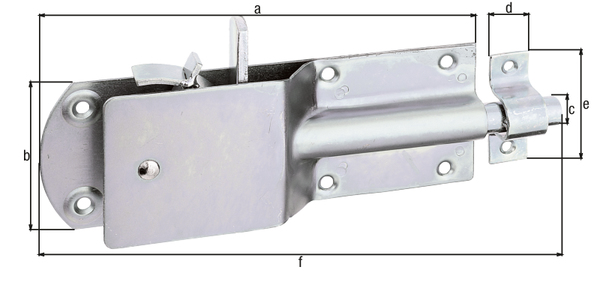

Dimension a:
200 mm
Dimension b:
70 mm
Dimension c-Ø:
15 mm
Dimension d:
20 mm
Dimension e:
57 mm
Dimension f:
250 mm
Extension length:
50 mm
Quantity x hole Ø:
6 x Ø5.5 mm
Quantity x hole Ø:
2 x Ø5 mm
Material/surface:
raw steel, galvanised, thick-film passivated, with attached staple
Systems:
Bolts
Surface / Colour:
Thick film protection
Material:
Steel
Plate width:
70 mm
Total length:
250 mm
Plate length:
200 mm
Bolt Ø:
15 mm
Weight per UQ (kg):
0.785 kg
Content Unit:
5 Piece
  • with broad, flat handle
  • completely hidden catch
  • Durable thanks to Thick film protection, ideal protection against unintentional opening.
