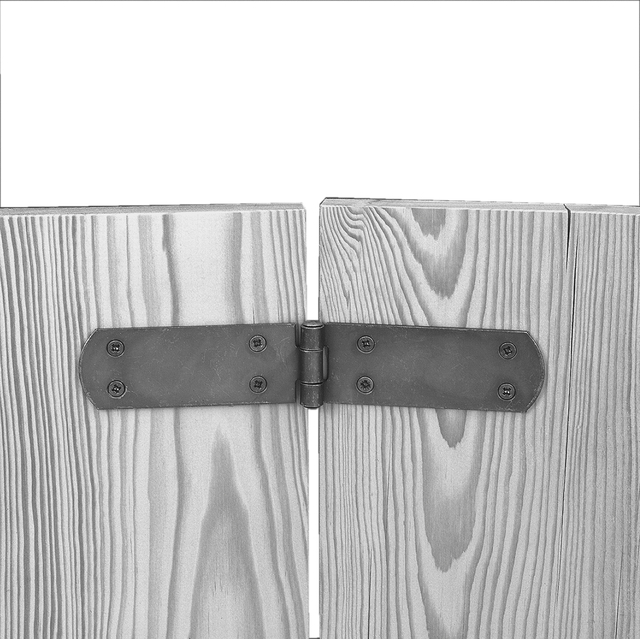

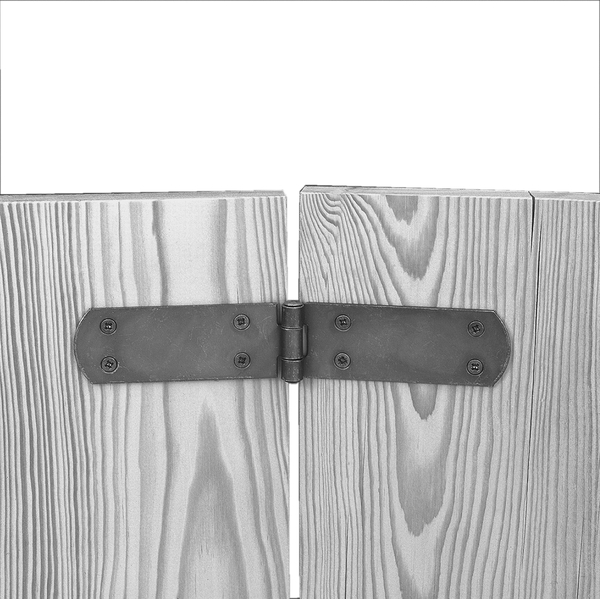

Box hinge
with countersunk screw holes
Art.-No. 315542
- Dimension a:
- 135 mm
- Dimension b:
- 35 mm
- Material thickness:
- 2 mm
- Quantity x hole Ø:
- 8 x Ø5.5 mm
- Material/surface:
- raw steel, galvanised, thick-film passivated
- UNIT:
- 20
- PU:
- Piece
- Surface / Colour:
- VERZ
- Material:
- Steel
- :
- 135 mm
- :
- 35 mm
- Weight per UQ (kg):
- 0.081 kg
Article-No.
Dimension a
Dimension b
Material thickness
Quantity x hole Ø
Action
Article-No.315542
Dimension a135 mm
Dimension b35 mm
Material thickness2 mm
Quantity x hole Ø8 x Ø5.5 mm
Article-No.315580
Dimension a156 mm
Dimension b35 mm
Material thickness2 mm
Quantity x hole Ø8 x Ø5.5 mm
Article-No.315627
Dimension a175 mm
Dimension b35 mm
Material thickness2 mm
Quantity x hole Ø8 x Ø5.5 mm
Article-No.315665
Dimension a195 mm
Dimension b35 mm
Material thickness2 mm
Quantity x hole Ø8 x Ø5.5 mm
Article-No.315702
Dimension a250 mm
Dimension b40 mm
Material thickness2.5 mm
Quantity x hole Ø8 x Ø5.5 mm
Article-No.315740
Dimension a300 mm
Dimension b40 mm
Material thickness2.5 mm
Quantity x hole Ø10 x Ø5.5 mm
Article-No.315788
Dimension a400 mm
Dimension b40 mm
Material thickness3 mm
Quantity x hole Ø10 x Ø6 mm
