• Swinging door hinge, with countersunk screw holes, Material: raw steel, Surface: blue galvanised, Contents per PU: 1 Piece, Height: 100 mm, Distance centre - centre of spring mounting: 53 mm, Width: 31 mm, Distance from wall: 36 mm, No. of holes: 8, Hole: Ø5.3 mm, Retail packaged
  • Swinging door hinge, with countersunk screw holes, Material: raw steel, Surface: blue galvanised, Contents per PU: 1 Piece, Height: 100 mm, Distance centre - centre of spring mounting: 53 mm, Width: 31 mm, Distance from wall: 36 mm, No. of holes: 8, Hole: Ø5.3 mm, Retail packaged

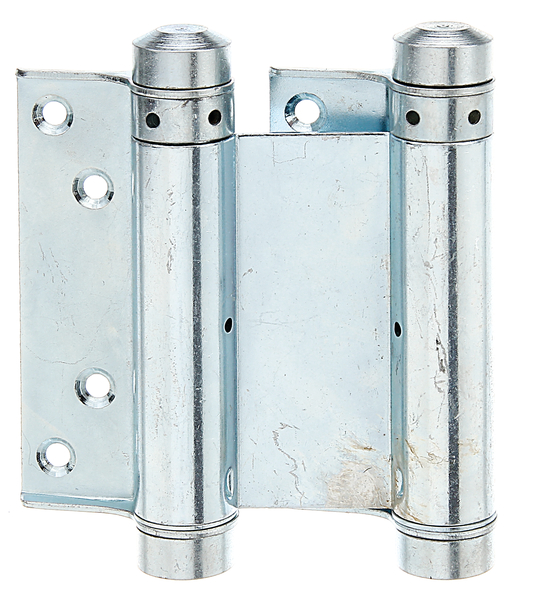

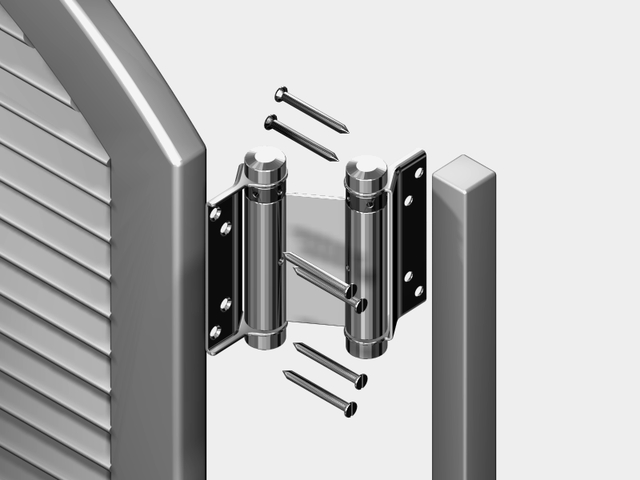

Swinging door hinge

with countersunk screw holes
Art.-No. 411671

raw steel, blue galvanised

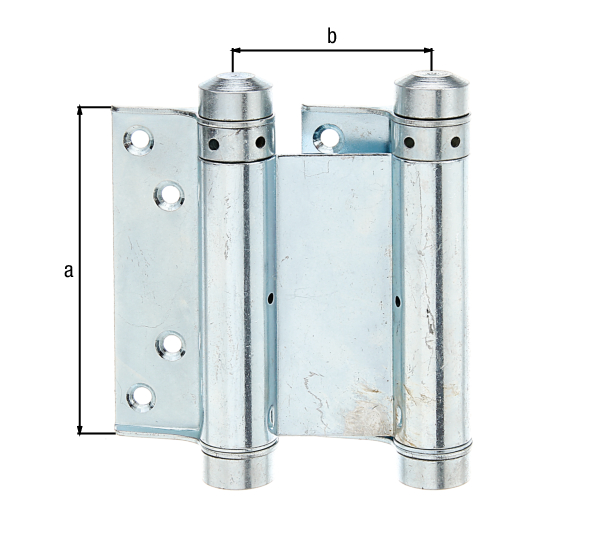

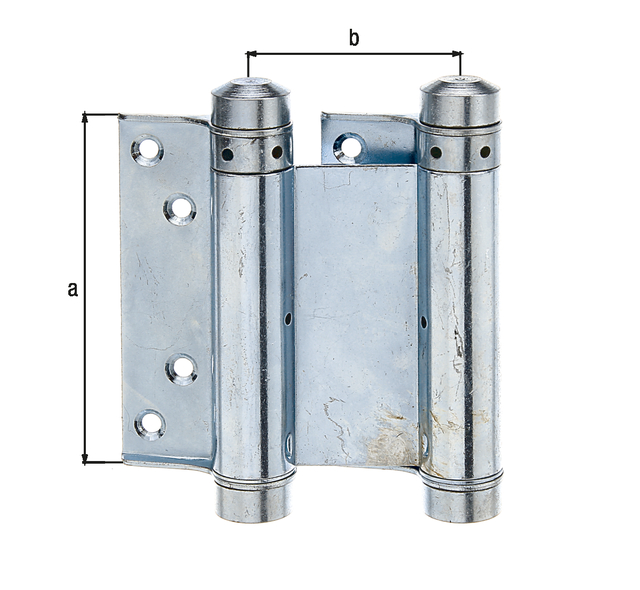

Dimension a:
100 mm
Dimension b:
53 mm
Dimension c:
31 mm
Dimension d:
36 mm
For:
25 - 30 mm
Quantity x hole Ø:
8 x Ø5.3 mm
Material/surface:
raw steel, blue galvanised
UNIT:
5
PU:
Card
Content value per PU:
1
Content unit per PU:
Piece
Surface / Colour:
VERZ
Material:
Steel
:
31 mm
:
100 mm
Weight per UQ (kg):
0.726 kg
  • with adjusting pin and adjusting rivet

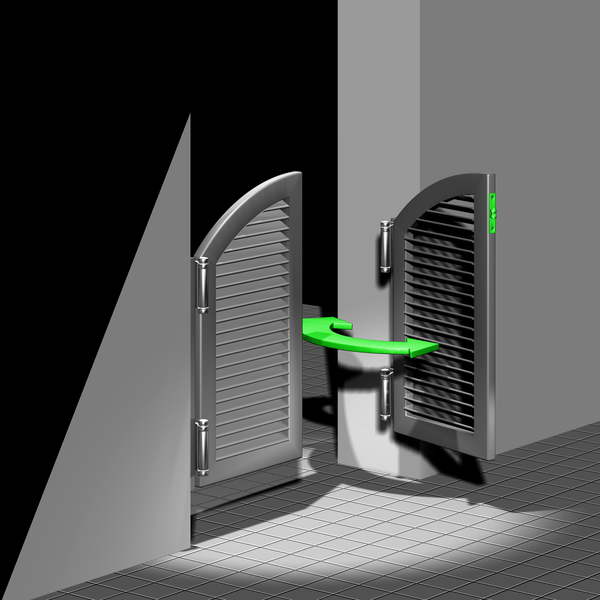

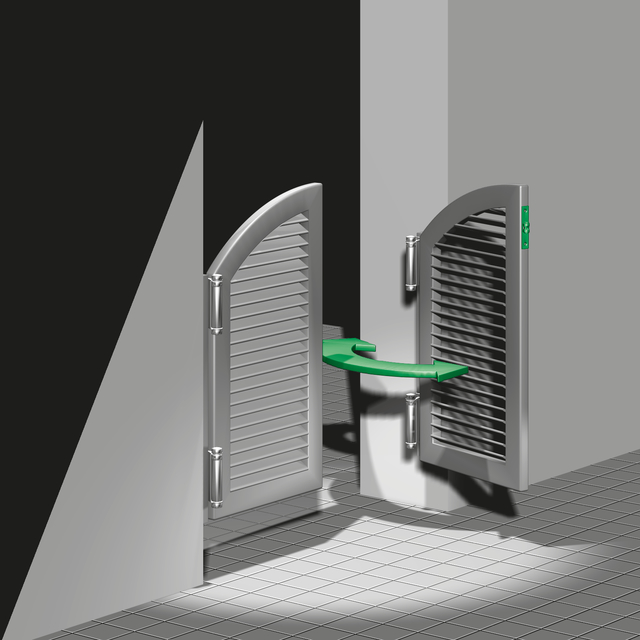

  • Maximum leaf weight when used in pairs (2 pcs. per leaf) and maximum leaf width of 700 mm: 18 kg
