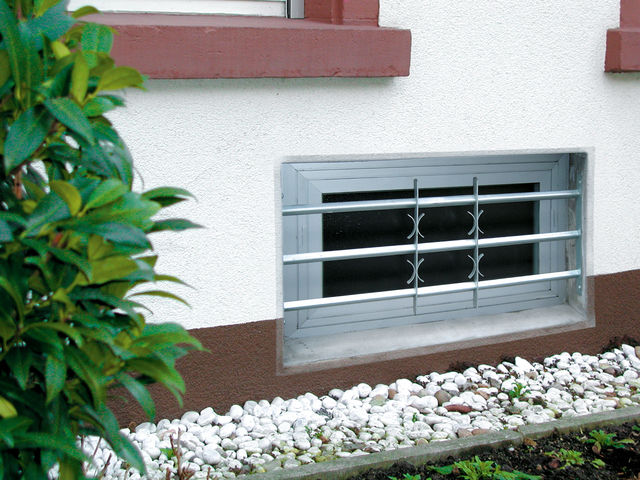

Window grille Amsterdam, for fixing in window reveal
extending grille with decorative elements
Art.-No. 553654
With the variable pull-out widths and different heights, Window grilles can also be fitted to reveal openings of different widths (e.g. in old buildings). The small ornaments on the vertical bars discreetly break up the linear appearance, and if the offered heights are not sufficient, it is possible to mount several Extending gratings on top of each other. For long-lasting corrosion protection, it is essential to treat the window gratings with wrought iron paint after purchase.
raw steel, blue galvanised
- Width of vertical bars:
- 35 mm
- Width of attachment plate:
- 35 mm
- Total height:
- 600 mm
- No. of traverses:
- 4
- Guarantee articles:
- 15 years
- Min. width:
- 700 mm
- Max. width:
- 1050 mm
- Material/surface:
- raw steel, blue galvanised
- Systems:
- Amsterdam
- Surface / Colour:
- galvanised
- Weight per UQ (kg):
- 7.2 kg
- Content Unit:
- 1 Piece
Article-No.
Width of vertical bars
Width of attachment plate
Total height
No. of traverses
Action
Article-No.
553586
Width of vertical bars
35 mm
Width of attachment plate
35 mm
Total height
300 mm
No. of traverses
2
Article-No.
553593
Width of vertical bars
35 mm
Width of attachment plate
35 mm
Total height
300 mm
No. of traverses
2
Article-No.
553609
Width of vertical bars
35 mm
Width of attachment plate
35 mm
Total height
300 mm
No. of traverses
2
Article-No.
553616
Width of vertical bars
35 mm
Width of attachment plate
35 mm
Total height
450 mm
No. of traverses
3
Article-No.
553623
Width of vertical bars
35 mm
Width of attachment plate
35 mm
Total height
450 mm
No. of traverses
3
Article-No.
553630
Width of vertical bars
35 mm
Width of attachment plate
35 mm
Total height
450 mm
No. of traverses
3
Article-No.
553647
Width of vertical bars
35 mm
Width of attachment plate
35 mm
Total height
600 mm
No. of traverses
4
Article-No.
553654
Width of vertical bars
35 mm
Width of attachment plate
35 mm
Total height
600 mm
No. of traverses
4
Article-No.
553661
Width of vertical bars
35 mm
Width of attachment plate
35 mm
Total height
600 mm
No. of traverses
4
- double-guided transverse bars
- These window grilles are individually adjustable to any width. For long-lasting corrosion protection, it is essential to treat the window grilles with wrought iron paint after purchase.
- You can find a suitable setup video at www.youtube.com/@alberts1852
- Four safety screws and plugs included.
