• Security closing hasp, with blind screw holes, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, Length of top latch: 85 mm, Width: 37 mm, Length of screw-on plate: 38 mm, Distance centre of slot - centre pin: 62.5 mm, Padlock Ø: 12 mm, Material thickness: 2.00 mm, No. of holes: 1 / 3 / 4, Hole: 10 x 32 / Ø6 / Ø5.4 mm
  • Security closing hasp, with blind screw holes, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, Length of top latch: 85 mm, Width: 37 mm, Length of screw-on plate: 38 mm, Distance centre of slot - centre pin: 62.5 mm, Padlock Ø: 12 mm, Material thickness: 2.00 mm, No. of holes: 1 / 3 / 4, Hole: 10 x 32 / Ø6 / Ø5.4 mm

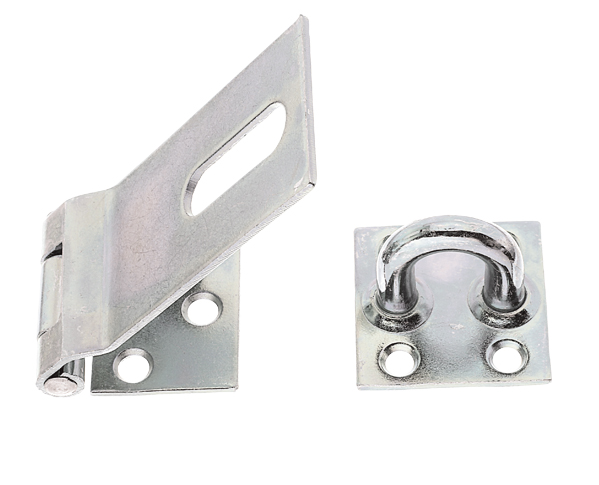

Security closing hasp

with countersunk screw holes
Art.-No. 348359

raw steel, galvanised, thick-film passivated

3 Variants

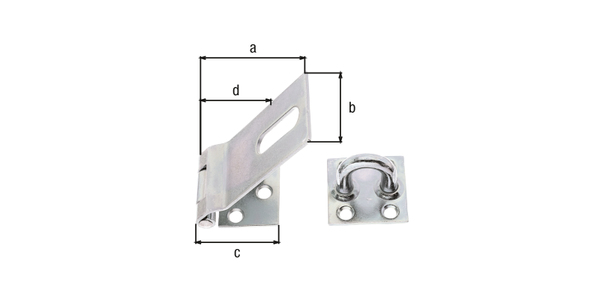

Dimension a:
85 mm
Dimension b:
37 mm
Dimension c:
38 mm
Dimension d:
62.5 mm
Material thickness:
2 mm
Quantity x hole (LxW):
1 x ( 10 x 32 ) mm
Quantity x hole Ø:
3 x Ø6 mm
Quantity x hole Ø:
4 x Ø5.4 mm
Material/surface:
raw steel, galvanised, thick-film passivated
UNIT:
10
PU:
Piece
Material:
Steel
:
37 mm
Weight per UQ (kg):
0.115 kg
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.348359
Dimension a85 mm
Dimension b37 mm
Dimension c38 mm
Dimension d62.5 mm

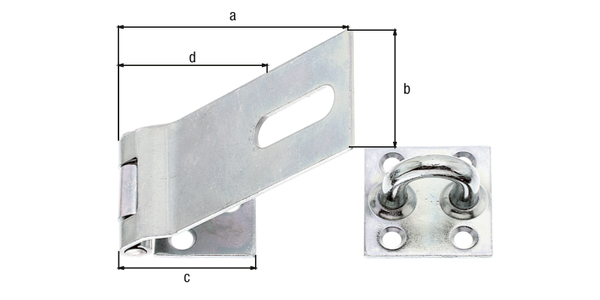

Article-No.348366
Dimension a93 mm
Dimension b37 mm
Dimension c38 mm
Dimension d70.5 mm

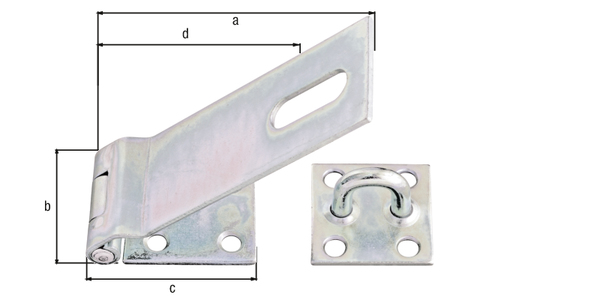

Article-No.348373
Dimension a153 mm
Dimension b50 mm
Dimension c68 mm
Dimension d121.5 mm
  • with eye plate
