• Hinge, medium, with riveted stainless steel pin, with countersunk screw holes, Material: raw steel, Surface: yellow galvanised, Length: 41 mm, Width: 33 mm, Type: rolled, Material thickness: 1.00 mm, No. of holes: 4, Hole: Ø4.7 mm
  • Hinge, medium, with riveted stainless steel pin, with countersunk screw holes, Material: raw steel, Surface: yellow galvanised, Length: 41 mm, Width: 33 mm, Type: rolled, Material thickness: 1.00 mm, No. of holes: 4, Hole: Ø4.7 mm

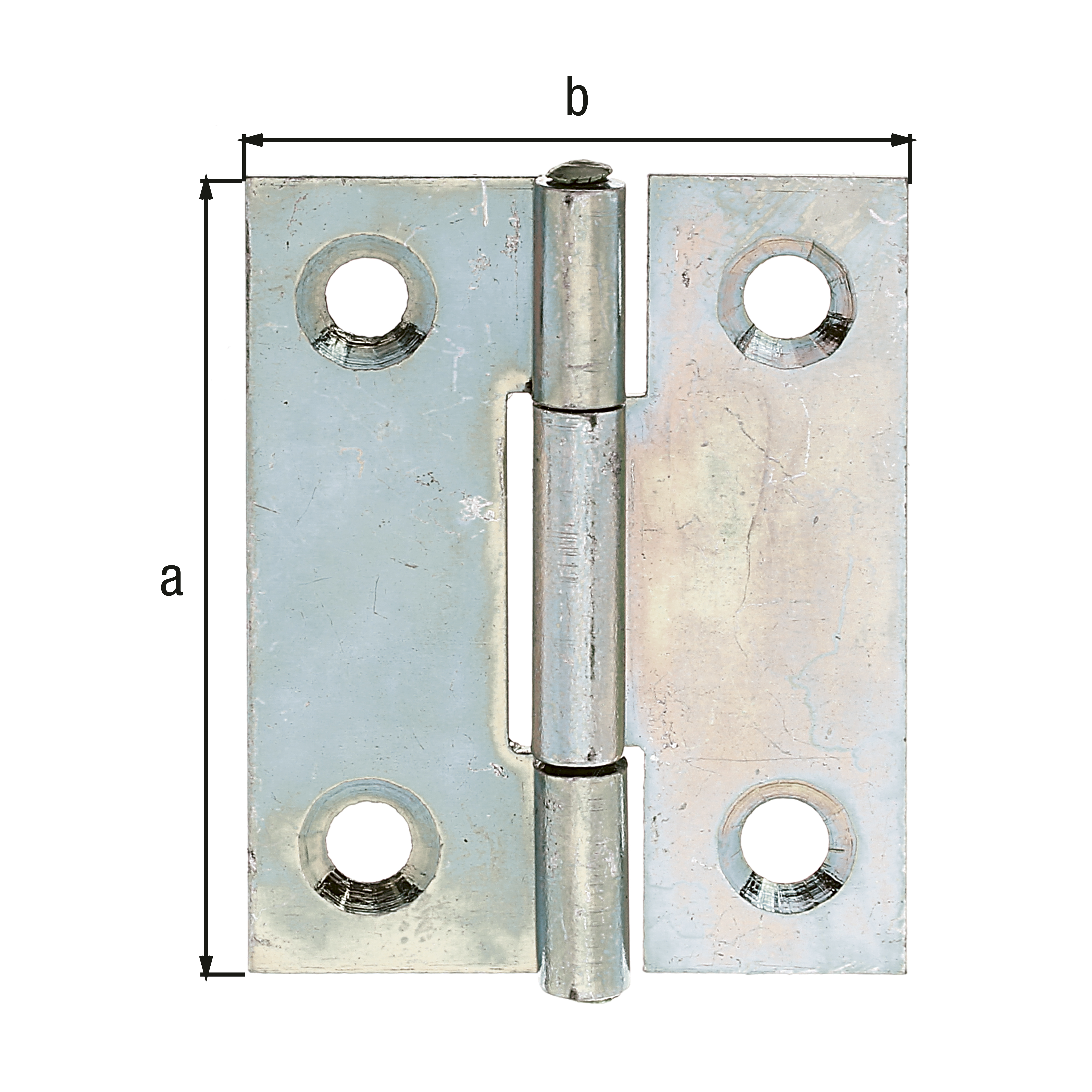

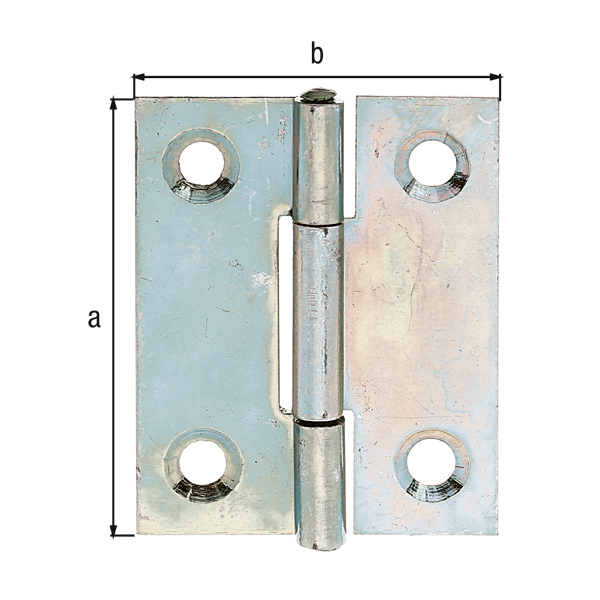

Hinge, medium

with countersunk screw holes
Art.-No. 345877
3 Variants
Dimension a:
41 mm
Dimension b:
33 mm
Material thickness:
1 mm
Quantity x hole Ø:
4 x Ø4.7 mm
Material/surface:
raw steel, yellow galvanised
UNIT:
50
PU:
Piece
Surface / Colour:
VERZ
Material:
Steel
:
41 mm
:
33 mm
Type:
rolled
Weight per UQ (kg):
0.013 kg
Article-No.
Dimension a
Dimension b
Material thickness
Quantity x hole Ø
Action
Article-No.345877
Dimension a41 mm
Dimension b33 mm
Material thickness1 mm
Quantity x hole Ø4 x Ø4.7 mm
Article-No.345884
Dimension a51 mm
Dimension b37 mm
Material thickness1 mm
Quantity x hole Ø6 x Ø4.5 mm
Article-No.345891
Dimension a63 mm
Dimension b43 mm
Material thickness1.20 mm
Quantity x hole Ø6 x Ø5.4 mm
