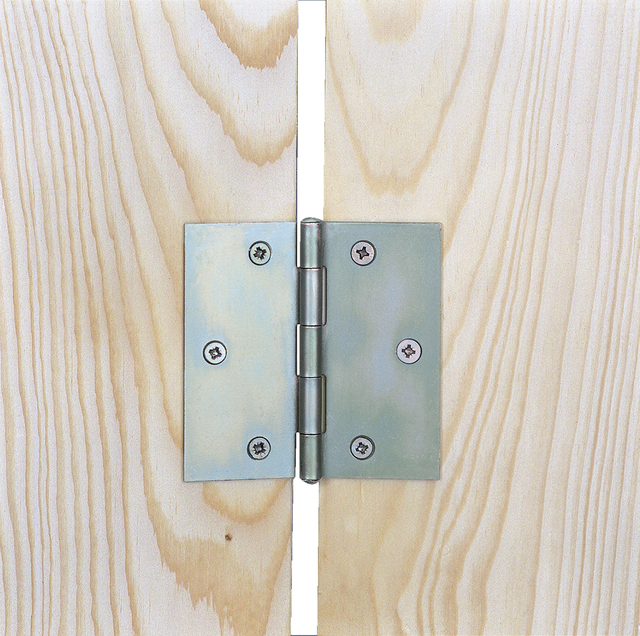

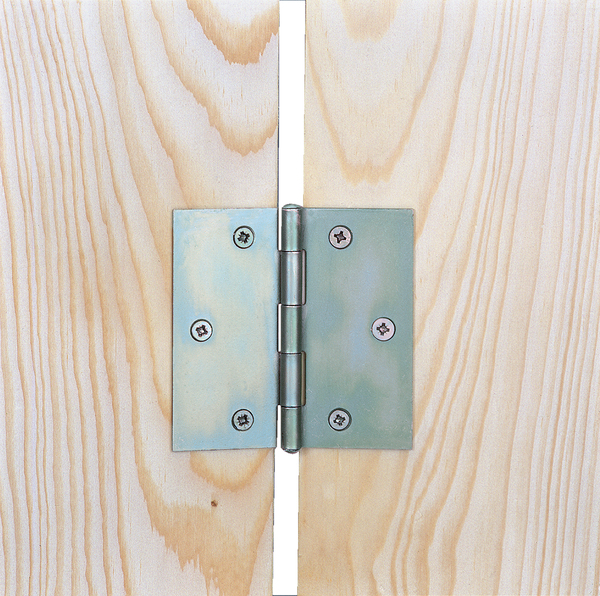

Hinge, medium
with countersunk screw holes
Art.-No. 345884
- Dimension a:
- 51 mm
- Dimension b:
- 37.2 mm
- Material thickness:
- 1 mm
- Quantity x hole Ø:
- 6 x Ø4.5 mm
- Material/surface:
- raw steel, sendzimir galvanised
- Surface / Colour:
- galvanised
- Material:
- Steel
- Length:
- 51 mm
- Width:
- 37.2 mm
- Type:
- rolled
- Weight per UQ (kg):
- 0.024 kg
- Content Unit:
- 20 Piece
Article-No.
Dimension a
Dimension b
Material thickness
Quantity x hole Ø
Action
Article-No.
345877
Dimension a
41 mm
Dimension b
32.9 mm
Material thickness
1 mm
Quantity x hole Ø
4 x Ø4.7 mm
Article-No.
345884
Dimension a
51 mm
Dimension b
37.2 mm
Material thickness
1 mm
Quantity x hole Ø
6 x Ø4.5 mm
Article-No.
345891
Dimension a
60 mm
Dimension b
46 mm
Material thickness
1.20 mm
Quantity x hole Ø
6 x Ø5.4 mm
Article-No.
345907
Dimension a
70 mm
Dimension b
53.6 mm
Material thickness
1.20 mm
Quantity x hole Ø
6 x Ø5 mm
Article-No.
345914
Dimension a
80 mm
Dimension b
58 mm
Material thickness
1.5 mm
Quantity x hole Ø
6 x Ø5.3 mm
Article-No.
345921
Dimension a
100 mm
Dimension b
72 mm
Material thickness
1.5 mm
Quantity x hole Ø
8 x Ø6 mm
Article-No.
348991
Dimension a
100 mm
Dimension b
75 mm
Material thickness
2.5 mm
Quantity x hole Ø
8 x Ø7 mm
- Ideal for rotatable connections between two components.
