• Hinge, narrow, with countersunk screw holes, Material: raw steel, Surface: yellow galvanised, with riveted stainless steel pin, Length: 25.5 mm, Width: 22 mm, Type: rolled, Material thickness: 0.75 mm, No. of holes: 4, Hole: Ø3 mm
  • Hinge, narrow, with countersunk screw holes, Material: raw steel, Surface: yellow galvanised, with riveted stainless steel pin, Length: 25.5 mm, Width: 22 mm, Type: rolled, Material thickness: 0.75 mm, No. of holes: 4, Hole: Ø3 mm

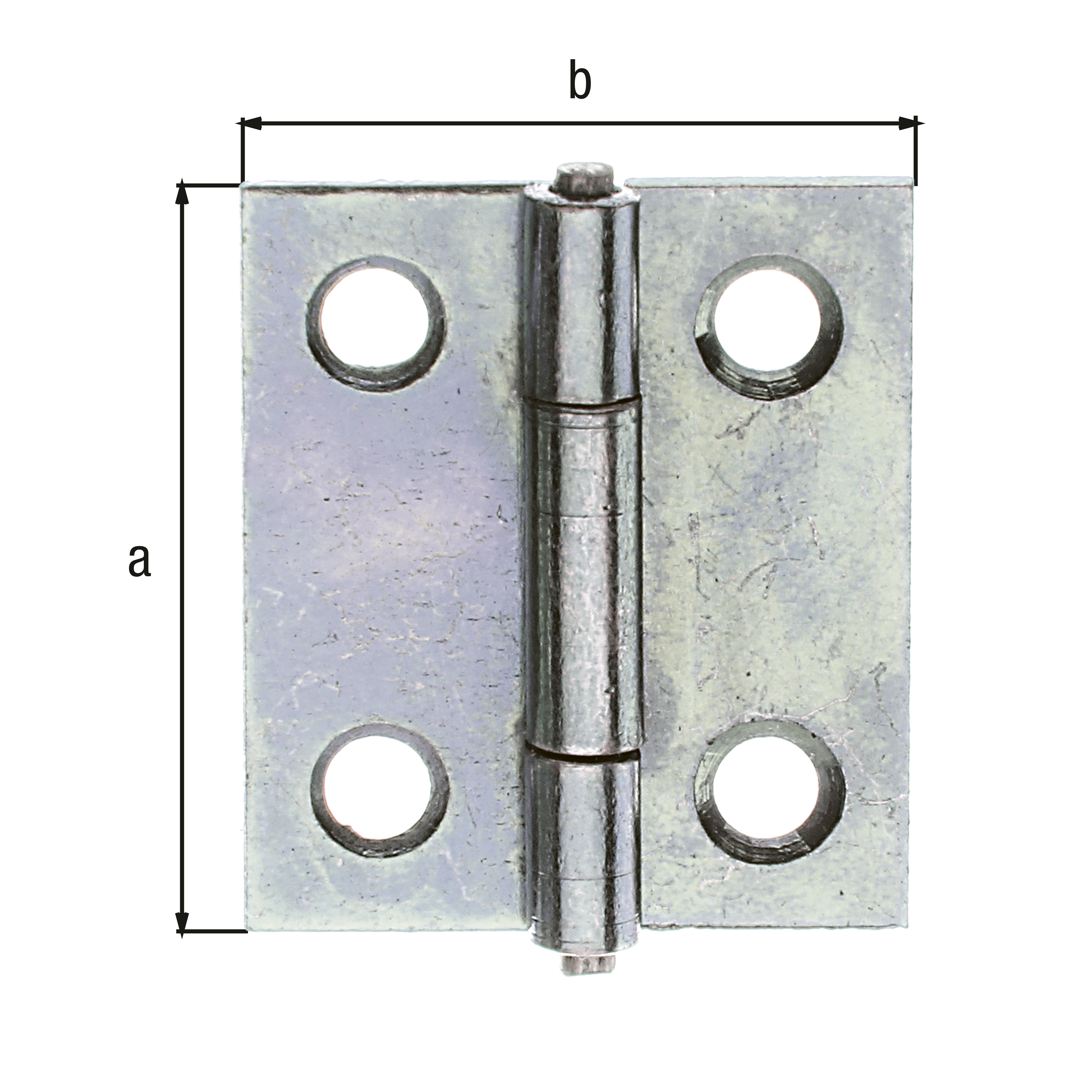

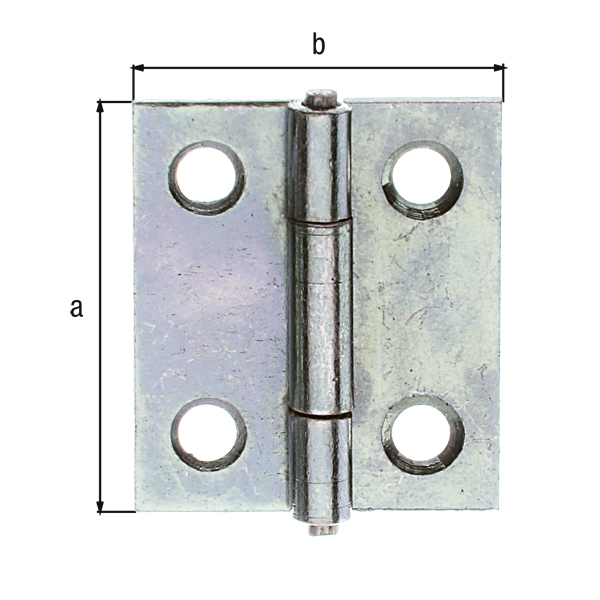

Hinge, narrow

with countersunk screw holes
Art.-No. 345358
Dimension a:
25.5 mm
Dimension b:
22 mm
Material thickness:
0.75 mm
Quantity x hole Ø:
4 x Ø3 mm
Material/surface:
raw steel, yellow galvanised, with riveted stainless steel pin
UNIT:
50
PU:
Piece
Surface / Colour:
VERZ
Material:
Steel
:
25.5 mm
:
22 mm
Type:
rolled
Weight per UQ (kg):
0.005 kg
Article-No.
Dimension a
Dimension b
Material thickness
Quantity x hole Ø
Action
Article-No.345358
Dimension a25.5 mm
Dimension b22 mm
Material thickness0.75 mm
Quantity x hole Ø4 x Ø3 mm
Article-No.345372
Dimension a38 mm
Dimension b26 mm
Material thickness0.75 mm
Quantity x hole Ø4 x Ø3.7 mm
Article-No.345402
Dimension a70 mm
Dimension b35 mm
Material thickness1 mm
Quantity x hole Ø6 x Ø4.5 mm
