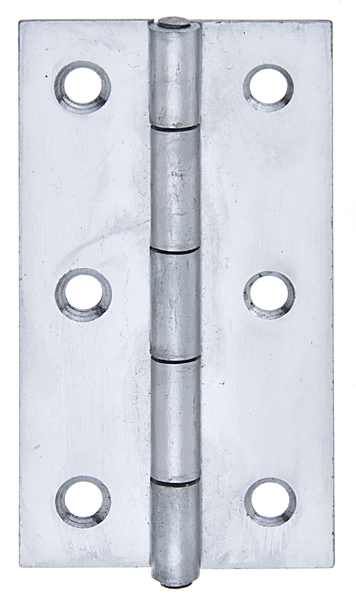

Hinge, narrow
with countersunk screw holes
Art.-No. 361198

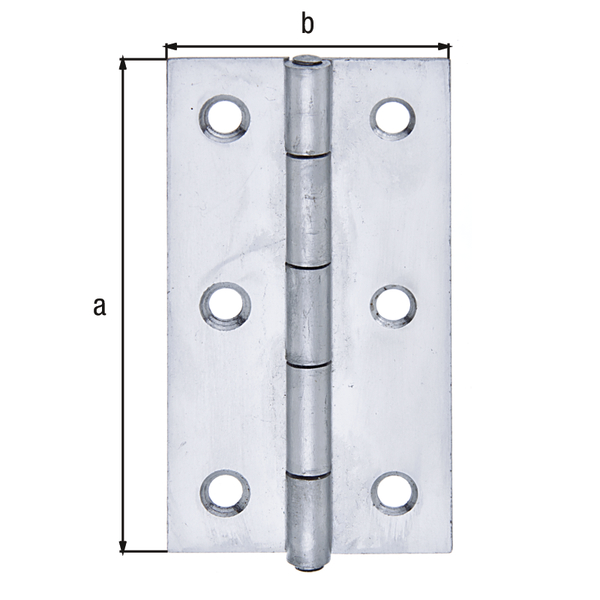

- Dimension a:
- 82 mm
- Dimension b:
- 44 mm
- Material thickness:
- 1.3 mm
- Quantity x hole Ø:
- 6 x Ø5.2 mm
- Material/surface:
- stainless steel, with riveted stainless steel pin
- Surface / Colour:
- Stainless steel
- Material:
- Stainless steel
- Length:
- 82 mm
- Width:
- 44 mm
- Type:
- rolled
- Weight per UQ (kg):
- 0.058 kg
- Content Unit:
- 20 Piece
Article-No.
Dimension a
Dimension b
Material thickness
Quantity x hole Ø
Action
Article-No.

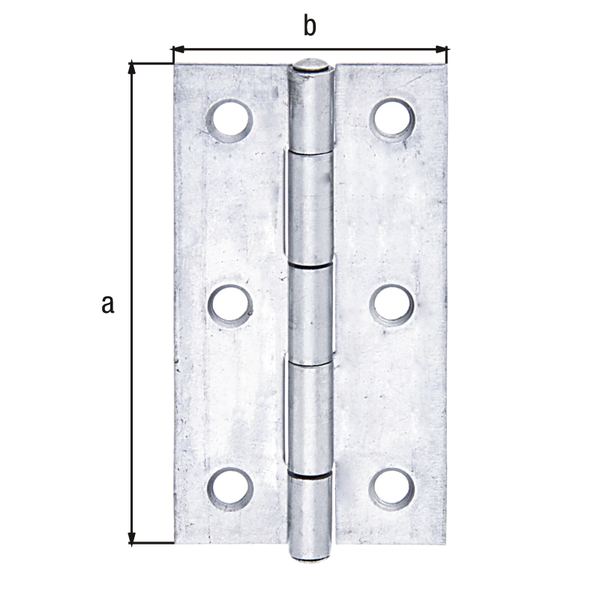

361181
Dimension a
64 mm
Dimension b
34 mm
Material thickness
1 mm
Quantity x hole Ø
6 x Ø4.3 mm
Article-No.
361198
Dimension a
82 mm
Dimension b
44 mm
Material thickness
1.3 mm
Quantity x hole Ø
6 x Ø5.2 mm

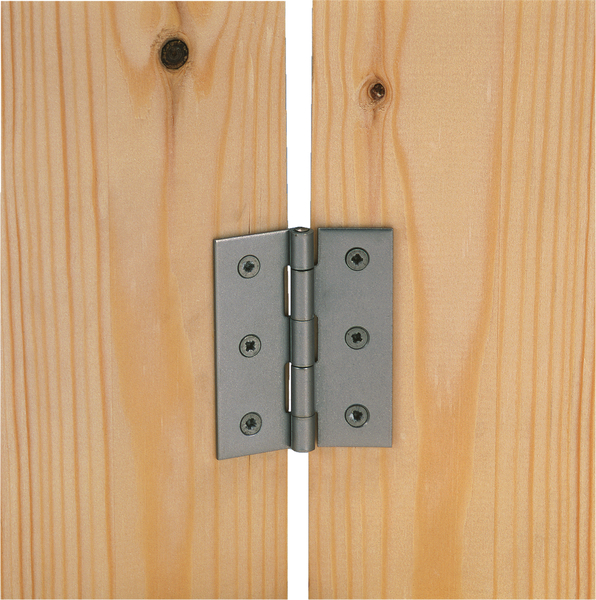

- Ideal for rotatable connections between two components.
