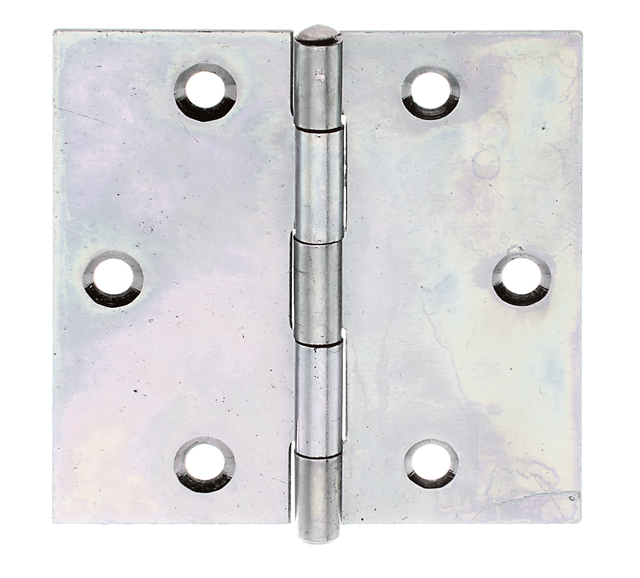

Hinge, squared
with countersunk screw holes
Art.-No. 335533
- Dimension a:
- 60 mm
- Dimension b:
- 60 mm
- Material thickness:
- 1 mm
- Quantity x hole Ø:
- 6 x Ø4.5 mm
- Material/surface:
- raw steel, sendzimir galvanised, with riveted stainless steel pin
- Surface / Colour:
- galvanised
- Material:
- Steel
- Length:
- 60 mm
- Width:
- 60 mm
- Type:
- rolled
- Weight per UQ (kg):
- 0.041 kg
- Content Unit:
- 20 Piece
Article-No.
Dimension a
Dimension b
Material thickness
Quantity x hole Ø
Action
Article-No.
345969
Dimension a
31.5 mm
Dimension b
31 mm
Material thickness
0.75 mm
Quantity x hole Ø
4 x Ø3.5 mm
Article-No.
345976
Dimension a
38 mm
Dimension b
38.4 mm
Material thickness
0.75 mm
Quantity x hole Ø
6 x Ø4 mm
Article-No.
345983
Dimension a
51 mm
Dimension b
51.2 mm
Material thickness
0.75 mm
Quantity x hole Ø
6 x Ø4.2 mm
Article-No.
345990
Dimension a
60 mm
Dimension b
60 mm
Material thickness
1 mm
Quantity x hole Ø
6 x Ø4.5 mm
Article-No.
335533
Dimension a
60 mm
Dimension b
60 mm
Material thickness
1 mm
Quantity x hole Ø
6 x Ø4.5 mm
Article-No.
346003
Dimension a
70 mm
Dimension b
70 mm
Material thickness
1.5 mm
Quantity x hole Ø
6 x Ø5 mm
Article-No.
346010
Dimension a
80 mm
Dimension b
80 mm
Material thickness
1 mm
Quantity x hole Ø
6 x Ø6.3 mm
Article-No.
346027
Dimension a
100 mm
Dimension b
100 mm
Material thickness
1.2 mm
Quantity x hole Ø
8 x Ø5 mm
Article-No.
349042
Dimension a
100 mm
Dimension b
102 mm
Material thickness
2.5 mm
Quantity x hole Ø
8 x Ø5.8 mm
- division up to 40 mm = three-part, for more than 50 mm = five-part
- Ideal for rotatable connections between two components.
