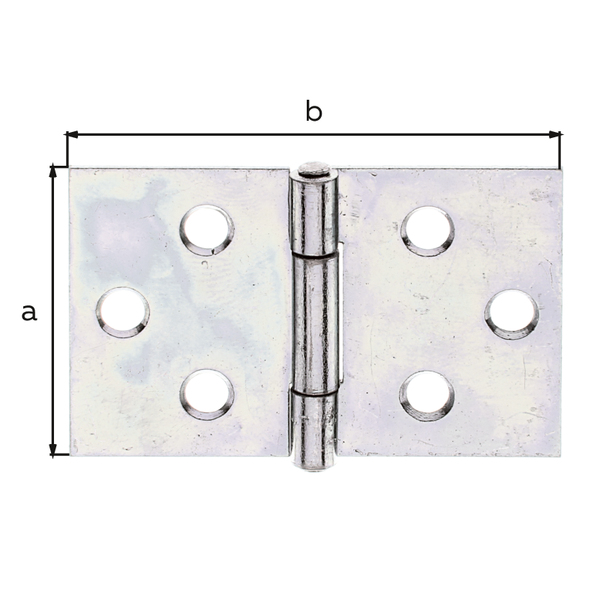

Hinge, wide
with riveted stainless steel pin
Art.-No. 346461
- Dimension a:
- 30 mm
- Dimension b:
- 47.5 mm
- Material thickness:
- 1 mm
- Quantity x hole Ø:
- 6 x Ø4 mm
- Material/surface:
- raw steel, sendzimir galvanised
- Surface / Colour:
- galvanised
- Material:
- Steel
- Length:
- 30 mm
- Width:
- 47.5 mm
- Type:
- rolled
- Weight per UQ (kg):
- 0.012 kg
- Content Unit:
- 50 Piece
Article-No.
Dimension a
Dimension b
Material thickness
Quantity x hole Ø
Action
Article-No.
346461
Dimension a
30 mm
Dimension b
47.5 mm
Material thickness
1 mm
Quantity x hole Ø
6 x Ø4 mm

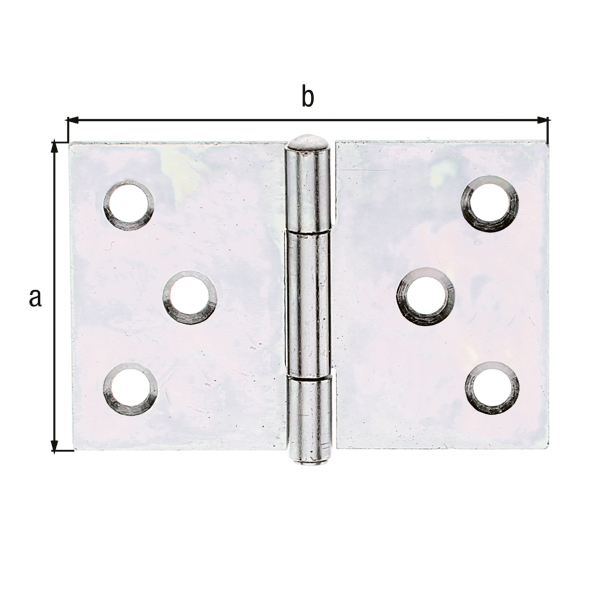

Article-No.
346478
Dimension a
40 mm
Dimension b
58 mm
Material thickness
0.9 mm
Quantity x hole Ø
6 x Ø4.5 mm

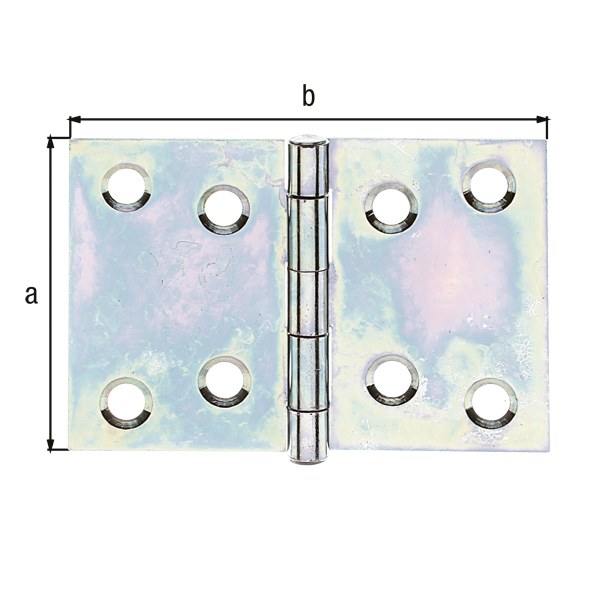

Article-No.
346485
Dimension a
50 mm
Dimension b
75 mm
Material thickness
1 mm
Quantity x hole Ø
8 x Ø5.5 mm

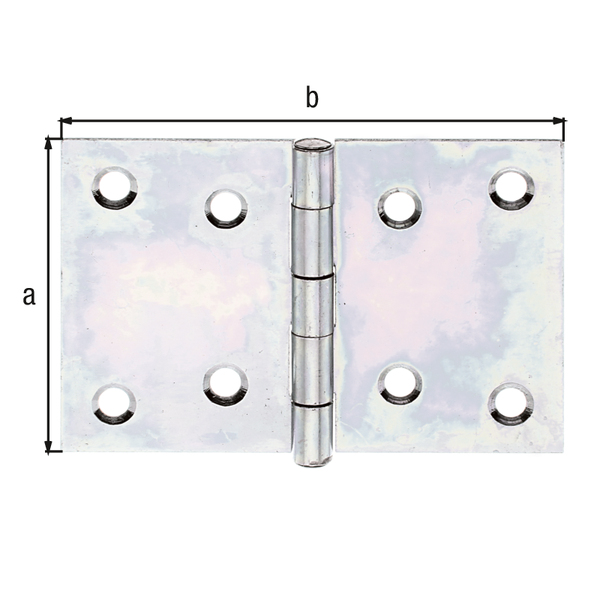

Article-No.
346492
Dimension a
60 mm
Dimension b
90 mm
Material thickness
1.25 mm
Quantity x hole Ø
8 x Ø5.3 mm

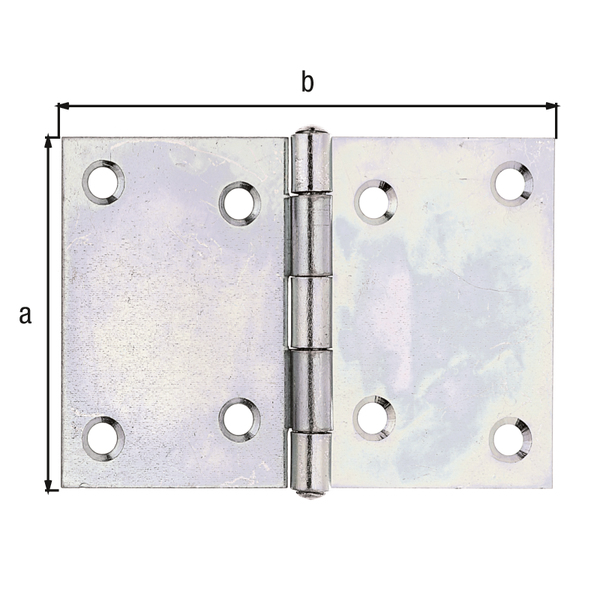

Article-No.
346508
Dimension a
70 mm
Dimension b
104.5 mm
Material thickness
1.25 mm
Quantity x hole Ø
8 x Ø6 mm

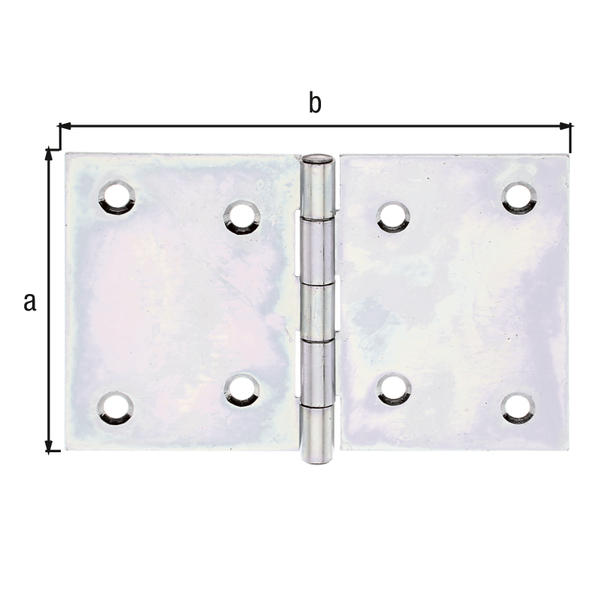

Article-No.
346515
Dimension a
80 mm
Dimension b
120 mm
Material thickness
1.5 mm
Quantity x hole Ø
8 x Ø6 mm

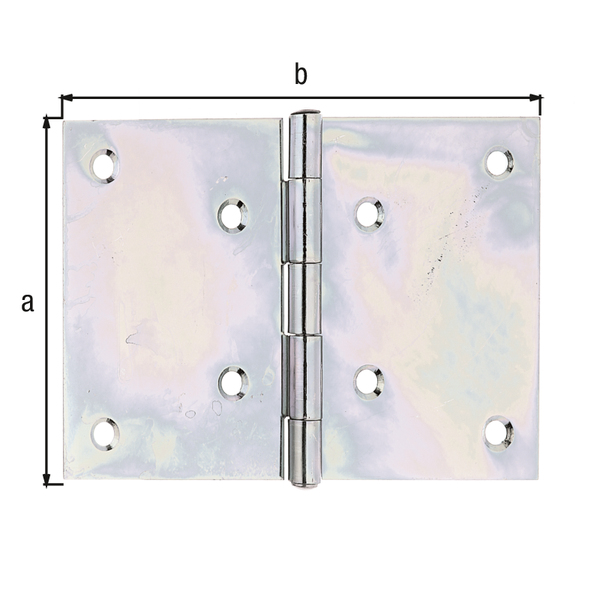

Article-No.
346539
Dimension a
100 mm
Dimension b
150 mm
Material thickness
2 mm
Quantity x hole Ø
8 x Ø6.3 mm
- division up to 40 mm = three-part, for more than 50 mm = five-part
- Ideal for rotatable connections between two components.
